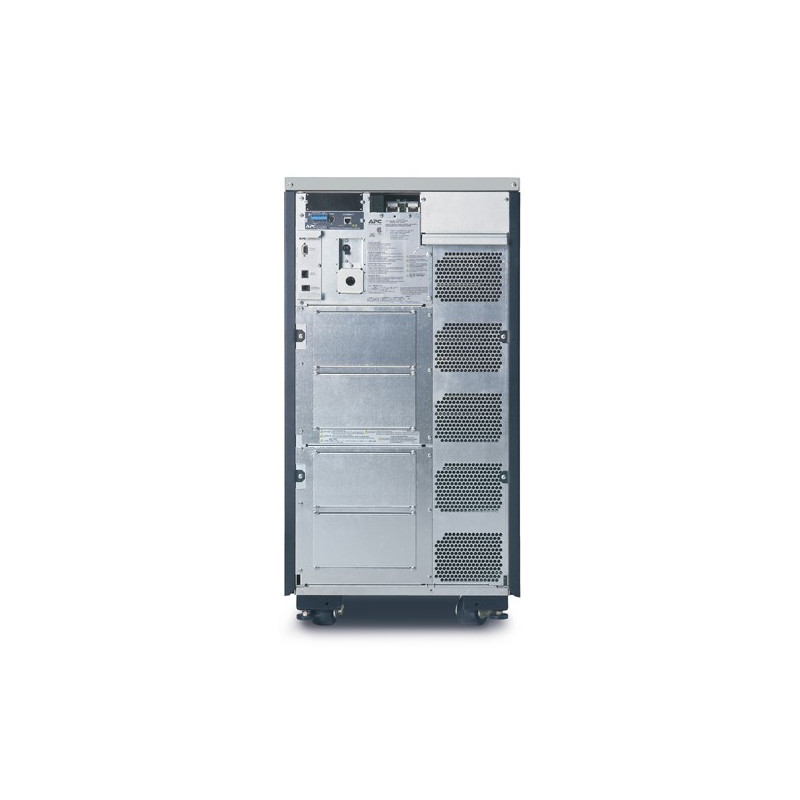

APC SYA16K16I uninterruptible power supply (UPS)
APC Symmetra LX, 16000VA/11200W, Input 230V, 400V 3PH/Output 230V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model


Includes: CD with software, Documentation CD, Installation Guide, User Manual, Web/SNMP Management Card



General Features:


Audible Alarms,

Automatic internal bypass,

Automatic restart of loads after UPS shutdown,

Automatic self-test,

Battery modules connected in parallel,

Cold-start capable,

Configurable for N+1 internal redundancy,

Disconnected battery notification,

Field-replaceable power distribution panel,

Frequency and voltage regulation,

Generator Compatible,

Hot-swappable batteries,

Hot-swappable intelligence modules,

Hot-swappable power modules,

InfraStruXure Manager Compatible,

Input Power Factor Correction,

Intelligent Battery Management,

LCD display,

Manageable external batteries,

Modular design,

Network manageable,

Plug-and-Play external batteries,

Power conditioning,

Power Modules connected in parallel,

Predictive failure notification,

Programmable Frequency,

Rack/Tower Convertible,

Redundant Intelligence Modules,

Removable input/output wiring tray,

Resettable circuit breakers,

Safety-agency approved,

Scalable Power Capacity,

Scalable runtime,

Shippable with modules installed,

SmartSlot,

User-replaceable batteries,

User-replaceable intelligence modules,

User-replaceable power modules.

Battery typeMaintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Colour of productBlack, Silver
Dimensions (WxDxH)480 x 730 x 940 mm
I/O portsAvailable Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619
Input connection typeHard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G)
InterfaceDB-9 RS-232, Smart-Slot
LED indicatorsMulti-function LCD status and control console
Nominal input voltage230, 400 3PH
Nominal output voltage230 V
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections(1) Hard Wire 3-wire (H N + G)
Output power11200 W
Output power capacity (VA)16000 VA
Output voltage noteConfigurable for 220: 230 or 240 nominal output voltage
Power supply input frequency45-65 Hz
Replacement battery cartridgeSYBT5
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Typical backup time at full load7.5 min
Typical backup time at half load20.3 min
Weight308000 g
