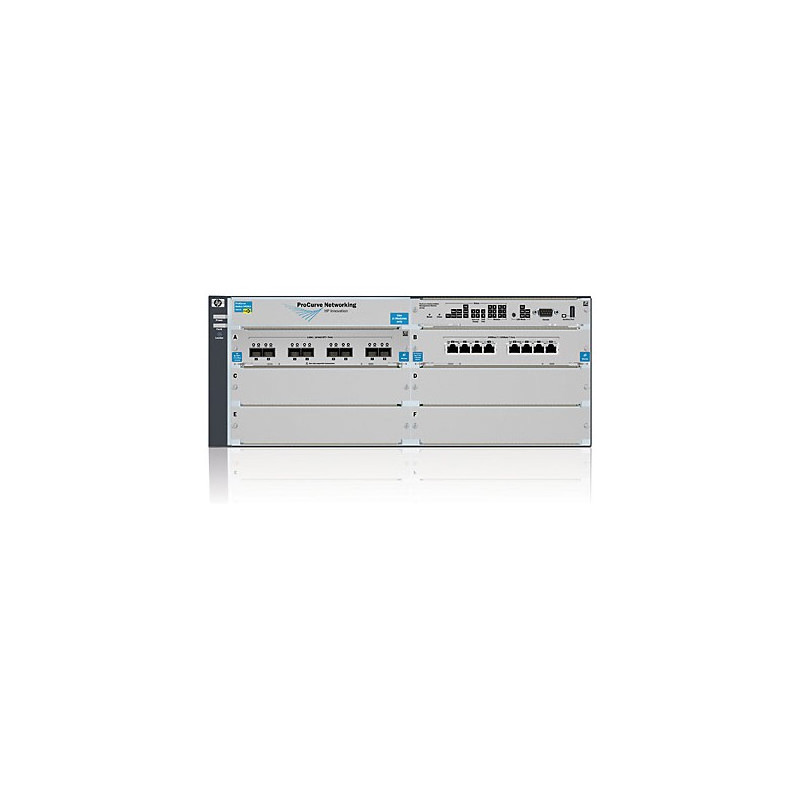

HP 5406 8p 10GBASE-T 8p 10GbE SFP+ v2 zl Switch with Premium Software
The HP 5400 zl Switch Series consists of advanced intelligent switches in the HP modular chassis product line, which includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for the switch series is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With 10/100, Gigabit Ethernet, and 10 Gigabit Ethernet interfaces; choice of PoE+ and non-PoE; integrated Layer 3 features; and HP AllianceOne solutions, the 5400 zl switch series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.



Software-defined networking

- OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths



Quality of Service (QoS)

- Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis



Management

- Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network



Connectivity

• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)



Performance

- High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs
AC input frequency50/60 Hz
Basic switching RJ-45 Ethernet ports quantity8
Colour of productGrey
Depth450.9 mm
Dimensions (WxDxH)444.5 x 450.9 x 175.3 mm
Electromagnetic compatibilityFCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Form factor4U
Heat dissipation2450 BTU/h
Height175.3 mm
I/O ports8 RJ-45 10GbE ports (IEEE 802.3an-2006 Type 10GBASE-T); 8 open 10GbE SFP+ transceiver slots; 4 open module slots; Supports a maximum of 32 10GbE ports or 96 autosensing 10/100/1000 ports or 96 mini-GBICs, or a combination
Input frequency50 - 60 Hz
Input voltage110-127/200-240 VAC
Latency1000 Mb Latency: < 3.7 µs (FIFO 64-byte packets); 10 Gb/s Latency: < 2.1 µs (FIFO 64-byte packets)
Latency (10 Gbps)2.1 µs
MAC address table64000 entries
Management platformHP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
MountingMounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Networking standardsEN: EN55024, CISPR 24; ESD: IEC 61000-4-2; 4 kV CD, 8 kV AD; Radiated: IEC 61000-4-3; 3V/m; EFT/Burst: IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); Surge: IEC 61000-4-5; 1 kV/2 kV AC; Conducted: IEC 61000-4-6; 3V; Power frequency magnetic fie
Operating altitude3 km
Operating relative humidity range15 to 95 @ 131°F
Operating temperature range (T-T)0 - 55 °C
Power consumption (typical)215 W
Power requirementsOne J9306A product is installed. One open power supply slot is available; three different power supplies are available. See power supply products for additional specifications.; Heat dissipation does not include heat dissipated by the PoE-powered devices
Power supply type1 x J9306A
Quality of Service (QoS) supportYes
Rack mountingYes
SafetyCSA 22.2 No. 60950; UL 60950; IEC 60950; EN 60950
Storage relative humidity range15 to 95 @ 149°F
Storage temperature range (T-T)-40 - 70 °C
Supported network protocolsRFC 1591 DNS (client); HTML and telnet management; IEEE 802.1ad Q-in-Q (Premium License); IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802
Switch typeManaged
Switching capacity379.2 Gbit/s
Throughput282.1 Mpps
Web-based managementYes
Weight20900 g
Width444.5 mm
