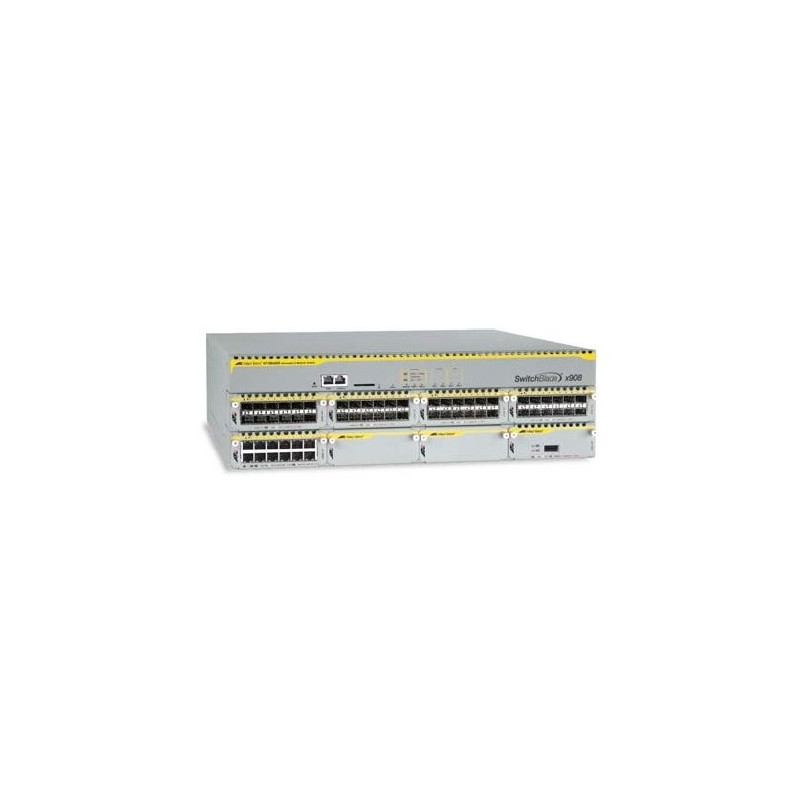

Allied Telesis 8 Slot Advanced Layer 3 Modular Switch
The Allied Telesis SwitchBlade® x908 industry

leading modular switch incorporates eight highspeed

60Gbps expansion bays, delivering a new

generation of high performance. The SwitchBlade

x908 provides scalable and versatile switching

solutions for today’s Enterprise networks.

The highly configurable SwitchBlade x908 3RU

modular switch combines an advanced IPv4 L3

feature set and comprehensive IPv6 routing

features, with wire-speed IPv6 hardware capability,

future proofing the network.

Featuring dual hot-swap PSUs, an advanced QoS

feature set,multicasting support, and LAN resiliency

support, the SwitchBlade x908 also provides

Service Provider capabilities such as a large L3

route table, and EPSR support.

Stacking between two units is supported via fixed

stacking connectors on the rear of the chassis,

providing 160Gbps of stacking bandwidth. Stacking

of more than two units is via expansion modules

(XEMs) on the front panel.

The SwitchBlade x908 incorporates the

AlliedWare Plus™ Operating System, using an

industry standard Command Line Interface (CLI),

facilitating effortless manageability.
Basic switching RJ-45 Ethernet ports quantity64
CertificationUL, cUL,TUV RoHS
Dimensions (WxDxH)440 x 456 x 132 mm
Electromagnetic compatibilityEN55022 class A, FCC class A,VCCI class A
Flash memory64 MB
Form factor3U
Full duplexYes
Internal memory512 MB
MAC address table16000 entries
Maximum data transfer rate80 Gbit/s
Mean time between failures (MTBF)150000 h
Memory typeDDR SDRAM SODIMM
Operating altitude0 - 3050 m
Operating relative humidity (H-H)5 - 80 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Power consumption (typical)510 W
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Power requirements100-240V@47-63Hz; 36-72V
Power supply typeAC/DC
SafetyUL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950
Source data-sheetIcecat.biz
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-30 - 70 °C
Switch typeUnmanaged
Switching capacity640 Gbit/s
Weight14320 g

Similar products

  • TP-LINK 8-port 10/100 Unmanaged PoE Switch
    TP-LINK 8-port 10/100 Unmanaged PoE Switch
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • TP-LINK TL-SG1008
    TP-LINK TL-SG1008
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS

Allied Telesis 8 Slot Advanced Layer 3 Modular Switch

8 Slot Advanced Layer 3 Modular Switch

AT-SBX908-00

Out of Stock

£6,579.06
£5,482.55 Ex VAT.
