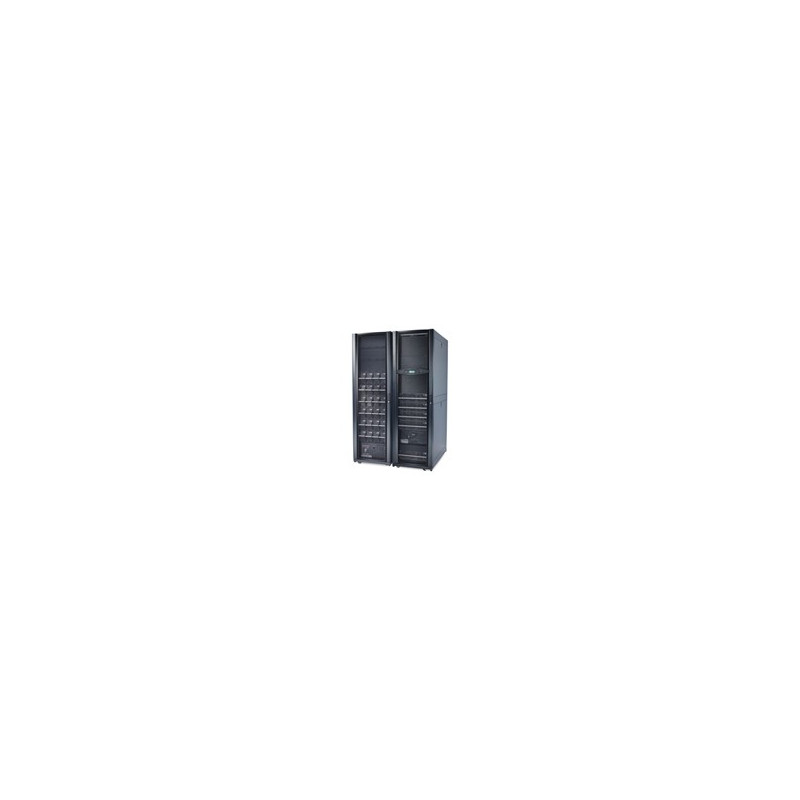

APC SY64K96H uninterruptible power supply (UPS)
  • APC SY64K96H uninterruptible power supply (UPS)
Images are for illustrative purposes only.
  • More info

  • Details

Audible alarms

Provide notification of changing flywheel conditions



InfraStruXure Central compatible

Enables centralized management via APC InfraStruXure® Central.



Modular design

Increases adaptability with an open architecture configurable to any IT environment.



Modular design

Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.



LCD display

Alpha-Numeric Display which displays system parameters and alarms.



SmartSlot

Customize UPS capabilities with management cards.



Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced



Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.



Configurable for N+1 internal redundancy

Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.



Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.



Battery modules connected in parallel

Delivers higher availability through redundant batteries.



Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS overload condition or fault.



Audible alarms

Provides notification of changing utility power and UPS conditions.



User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)



Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.



Scalable runtime

Allows additional run time to be quickly added as needed.



Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery recharge time3.50 h
Battery technologySealed Lead Acid (VRLA)
Battery typeVRLA
CertificationEN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 A,VFI-SS-111
Colour of productBlack
Depth1070 mm
Height1991 mm
Input connection type5 wire (3PH + N + G)
InterfaceSmartSlot
Nominal output voltage230 - 400 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 999.9 m
Operating relative humidity range0 - 95 %
Operating temperature range (T-T)0 - 40 °C
Output connections1x Hard Wire 5-wire (3PH + N + G)
Output power64000 W
Output power capacity (VA)64000 VA
Power supply input frequency40 - 70 Hz
Source data-sheetIcecat.biz
Storage relative humidity range0 - 95 %
Storage temperature range (T-T)-15 - 40 °C
Weight1388000 g
ManufacturerAPC

Accessories

5 other products in the same category:

  • APC 60kW 400V MAIN SERV....
  • APC 80KW 400V MAIN SERV....
  • APC Symmetra PX 160kW, 400V
  • APC SY16K48H-PD
  • APC Symmetra PX 32kW...

APC SY64K96H

Symmetra PX 64kW Scalable to 96kW, 400V More details

SY64K96H

No reviews yet!

Out of Stock

£37,656.87 Inc VAT.

£31,380.72

Require project pricing? - request a quote Need a trade account? - send us your details Are you a public sector organistion? - open a credit account Free delivery on orders over £20
