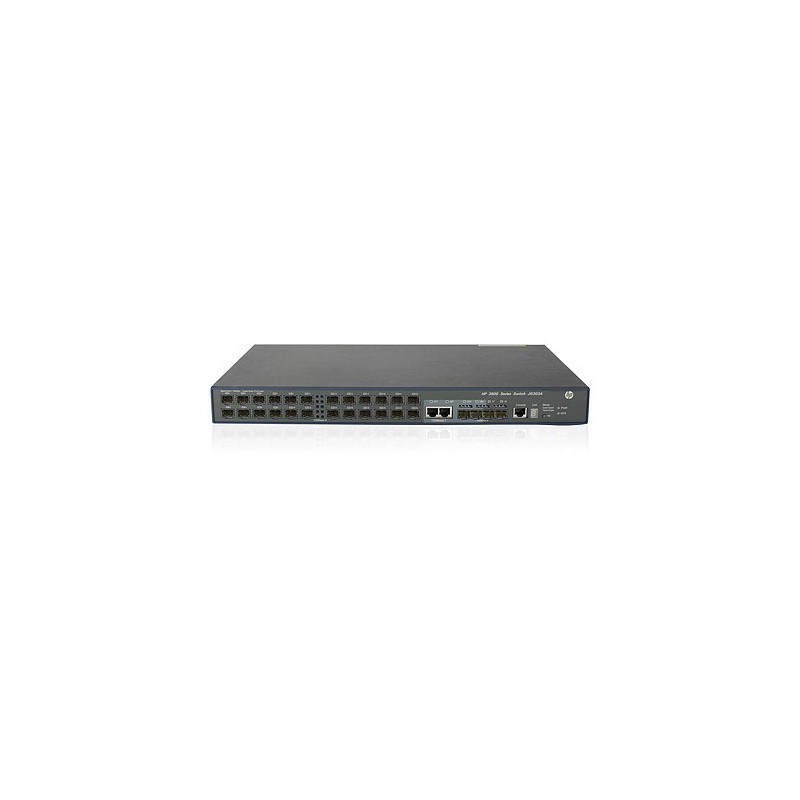

HP 3600-24-SFP v2 EI Switch
The HP 3600 EI Switch Series delivers premium levels of intelligent and resilient performance, security, and reliability for robust switching at the enterprise network edge. The series consists of Layer 3 Fast Ethernet and PoE/PoE+ switches, with advanced features that can accommodate the most demanding applications. Secure, resilient connectivity and the latest traffic-prioritization technologies enhance converged networks. Designed for increased flexibility and scalability, HP 3600 EI series switches come with 24 or 48 10/100 ports, four active SFP-based Gigabit Ethernet ports for stacking and uplinks, and a 24-port 100BASE-FX switch with two or four Gigabit Ethernet SFP slots.

Quality of Service (QoS)


• Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic



Management


• Friendly port names: allows assignment of descriptive names to ports



Connectivity


• IPv6: Telnet: for allowing CLI access via IPv6. SNMP: for IPv6 switch management. DNS: for IPv6 host management. DHCP: for auto IPv6 address configuration of a switch.



Performance


• Nonblocking performance: up to 17.6 Gbps nonblocking switching fabric provides wire-speed switching with up to 13.1 million pps throughput



Resiliency and high availability


• Separate data and control paths: keeps control separated from services and keeps service processing isolated; increases security and performance



Manageability


• RMON (remote monitoring): provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events



Layer 2 switching


• 16/32K MAC address table: provides access to many Layer 2 devices

AC input frequency50/60 Hz
AC input voltage100-240 V
Auto MDI/MDI-XYes
Colour of productBlack
Depth260.1 mm
DHCP clientYes
DHCP serverYes
Dimensions (WxDxH)439.9 x 260.1 x 43.7 mm
Electromagnetic compatibilityFCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN
Flow control supportYes
Form factor1U
Full duplexYes
Heat dissipation205 BTU/h
Height43.7 mm
I/O ports24 SFP 100 Mbps ports; 4 SFP 1000 Mbps ports; 2 dual-personality 1000 Mbps ports(IEEE 802.3ab Type 1000BASE-T), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 1 RJ-45 serial console port
Input frequency50 - 60 Hz
Input voltage100-240 VAC; -48 to -60 VDC (depending on power supply chosen)
Latency100 Mb Latency: < 6 µs; 1000 Mb Latency: < 5 µs
MAC address table32000 entries
Management platformIMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager
MountingMounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Networking standardsIEEE 802.3,IEEE 802.3ab
Operating temperature range (T-T)0 - 50 °C
Power consumption (typical)60 W
Power over Ethernet (PoE)No
Quality of Service (QoS) supportYes
Rack mountingYes
SafetyUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
Size439.9 mm (17.32 ")
Spanning tree protocolYes
StackableYes
Storage relative humidity range5 to 95 %
Storage temperature range (T-T)-40 - 70 °C
Switch layerL3
Switch typeManaged
Switching capacity12.8 Gbit/s
Throughput9.5 Mpps
Web-based managementYes
Weight5000 g
Width439.9 mm

Similar products

  • TP-LINK 8-port 10/100 Unmanaged PoE Switch
    TP-LINK 8-port 10/100 Unmanaged PoE Switch
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • TP-LINK TL-SG1008
    TP-LINK TL-SG1008
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS

HP 3600-24-SFP v2 EI Switch

HP 3600-24-SFP v2 EI Switch

JG303A

Out of Stock

£2,389.87
£1,991.56 Ex VAT.

Collect monkey points, exchange for Amazon vouchers
Require project pricing? - request a quoteNeed a trade account? - send us your details Are you a public sector organistion? - open a credit account
