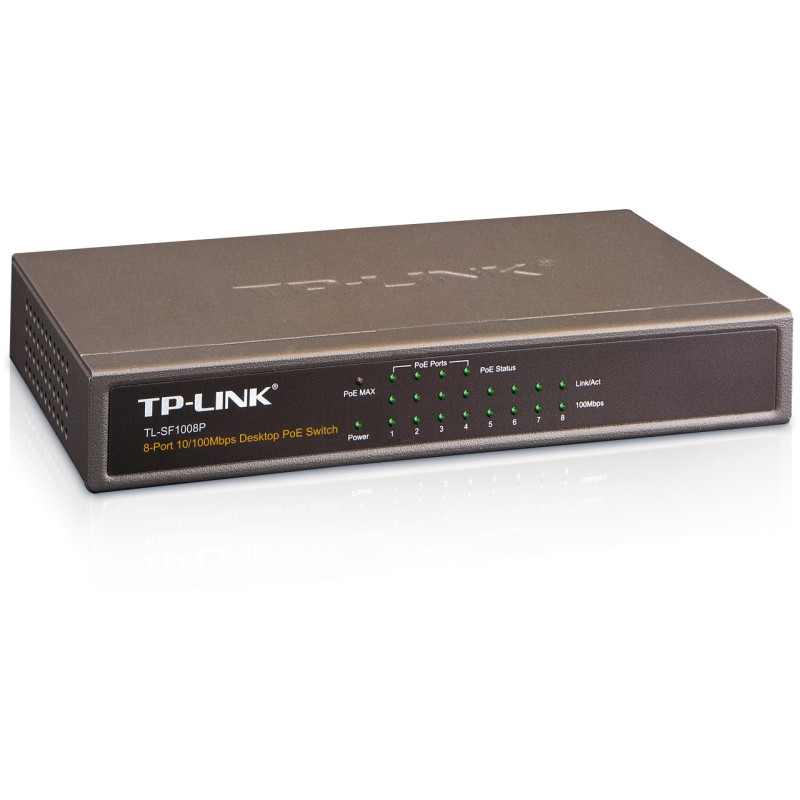

TP-LINK TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
  • TP-LINK TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
  • TP-LINK TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
  • TP-LINK TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
  • TP-LINK TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE


The TL-SF1008P 8-port 10/100M Desktop PoE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities.



4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.



TL-SF1008P has the priority * function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.



TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-link TL-SF1008P 8-port 10/100M Desktop PoE Switch is a great selection for expanding your home or office network.





Note: *priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.

- Supports PoE power up to 15.4W for each PoE port

- Supports PoE power up to 53W for all PoE ports

- Supports PoE IEEE802.3af compliant PDs

- Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode

- 1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging

- LED indicators for monitoring power, link, activity and speed

- External power adapter supply
Auto MDI/MDI-XYes
Bandwidth1.6 Gbit/s
Basic switching RJ-45 Ethernet ports quantity8
CertificationFCC, CE
Colour of productBlack
Connectivity LEDsYes
Connectivity technologyWired
DC-in jackYes
Dimensions (W x D x H)170.2 x 99.1 x 27.9 mm (6.7 x 3.9 x 1.1 ")
Dimensions (WxDxH)171 x 98 x 27 mm
Ethernet LAN (RJ-45) ports quantity8
Flow control supportYes
Full duplexYes
MAC address table1000 entries
ManagementUnmanaged
Maximum data transfer rate0.1 Gbit/s
MountingDesktop
Network cablingCat 3/4/5/5.5e
Networking standardsIEEE 802.3
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
PoEYes
PoE Ports Qty4
Ports quantity8
Power consumption (typical)53 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) supportYes
Power supply type48VDC / 1.25A
RJ45 Ports Qty8
Source data-sheetIcecat.biz
StackableNo
Storage relative humidity (H-H)5 - 90 %
Storage relative humidity range5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Store-and-forwardYes
Supported network protocolsCSMA/CD, TCP/IP, PPF
Switch Speed10/100
Switch typeUnmanaged
