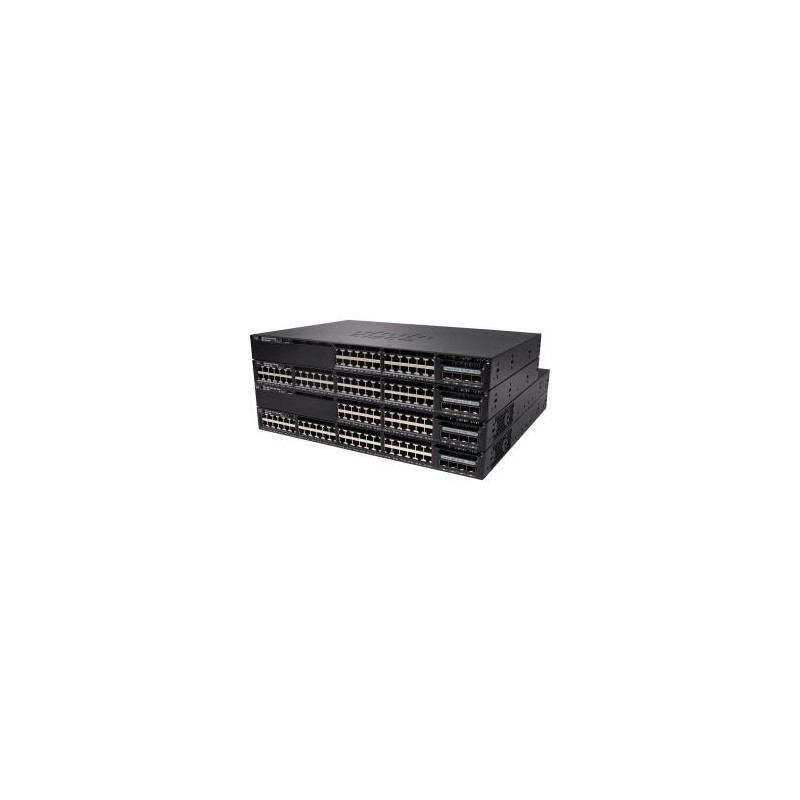

Cisco WS-C3650-48FQM-L
  • Cisco WS-C3650-48FQM-L
  • Cisco WS-C3650-48FQM-L
The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet P.lus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE®) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies. The 3650 Series swiwww.cisco.com/c/en/us/products/collateral/switches/catalyst-3650-series-switches/datasheet-c78-729449.htmltches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern. In addition, the 3650 multigigabit switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure. The 3650 Series switches help increase wireless productivity and reduce TCO.
AC adapter includedYes
AC input frequency50/60 Hz
AC input voltage100-240 V
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Cable types supportedCat5,Cat5e,Cat6,Cat6a
Colour of productBlack
DC-in jackYes
Depth296 mm
DHCP clientYes
DHCP serverYes
Fiber optic connectorSFP+
Flash memory4096 MB
Flow control supportYes
Form factor1U
Full duplexYes
Height44 mm
Input current5 - 12 A
LED indicatorsYes
MAC address filteringYes
MAC address table32000 entries
ManualYes
Mean time between failures (MTBF)272260 h
MIB supportYes
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3x,IEEE 802.3z
Operating altitude0 - 3000 m
Operating temperature (T-T)-5 - 45 °C
Power over Ethernet (PoE)Yes
Quality of Service (QoS) supportYes
Rack mountingYes
Spanning tree protocolYes
StackableYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2
Switch typeManaged
Switching capacity392 Gbit/s
User guideYes
Web-based managementYes
Weight5740 g
Width445 mm

WS-C3650-48FQM-L.pdf

Cisco WS-C3650-48FQM-L Data Sheet

Download (1.41M)
