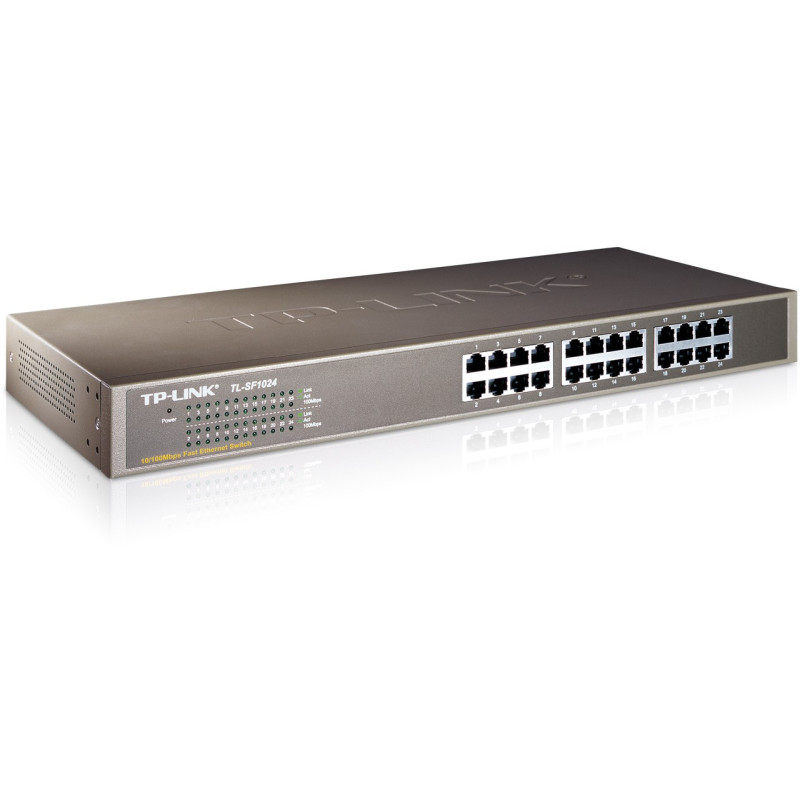

TP-LINK TL-SF1024 24-Port 10/100Mbps Switch
  • TP-LINK TL-SF1024 24-Port 10/100Mbps Switch
  • TP-LINK TL-SF1024 24-Port 10/100Mbps Switch
WHAT THIS PRODUCT DOES

The TL-SF1024 with TP-LINK Green Technology is an Environmentally-friendly and competitive choice for small business. It provides 8 10/100Mps Auto-Negotiation RJ45 ports and 2 10/100/1000Mbps Auto-Negotiation RJ45 ports, all RJ45 ports Support Auto-MDI/MDIX function. TL-SF1024 Gigabit Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into Gigabit solutions. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing the greater flexibility, installation convenience. Moreover, with the innovative energy-efficient technology, the TL-SF1024 can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.



GO GREEN WITH YOUR ETHERNET

You now have the choice to go green when upgrading to a gigabit network! This new product TL-SF1024 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SF1024 can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

Power Budget According to Cable Length

Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SF1024analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.



Gigabit Uplink

The TL-SF1024 has 8 fast Ethernet ports and 2 Gigabit uplink port. The Gigabit uplink port provides bandwidth access of up to 1000Mbps. Due to the fact that network upgrades tend to be progressive over time, your network will tend to become mixed with both Fast 100Mbps Ethernet and Gigabit.TL-SF1024 is ideal for situations such as these to mitigate throughput issues and coordinate work efficiently; Allowing your organization retain most of your network investments, while enhancing network performance quickly.



More Efficient

Utilizing non-blocking switching architecture, TL-SF1024 can forward and filter packets at full wire-speed for maximum throughput. Moreover, 100% data filtering rate eliminates all error packets and make your network work more efficiently.



Easy to Use

When powered on, it can work automatically without any pre-set. All ports support Auto-Negotiation and Auto-MDI/MDIX function. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

Auto MDI/MDI-XYes
Bandwidth4.8 Gbit/s
Basic switching RJ-45 Ethernet ports quantity24
CertificationFCC, CE
Colour of productBlack
Connectivity LEDsYes
Connectivity technologyWired
Dimensions (W x D x H)439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7 ")
Dimensions (WxDxH)440 x 180 x 44 mm
Ethernet LAN (RJ-45) ports quantity24
Flow control supportYes
Full duplexYes
MAC address filteringYes
MAC address table8000 entries
ManagementUnmanaged
Maximum data transfer rate0.2 Gbit/s
MountingRackmount
Network cablingCat 3/4/5/5.5e
Networking standardsIEEE802.3, 802.3u, 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)32 - 122 °F
Operating temperature range (T-T)0 - 40 °C
PoENo
Ports quantity24
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Power supply type100-240VAC 50-60 Hz
RJ45 Ports Qty24
Size19 "
Source data-sheetIcecat.biz
StackableNo
Storage relative humidity (H-H)5 - 90 %
Storage relative humidity range5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Store-and-forwardYes
Supported network protocolsCSMA/CD, TCP/IP
Switch Speed10/100
Switch typeUnmanaged

You might also like

  • Cat6 UTP RJ45 Modules with Faceplate
    Cat6 UTP RJ45 Modules with Faceplate
  • Cat6a FTP RJ45 Loaded Faceplates
    Cat6a FTP RJ45 Loaded Faceplates
  • 24 Way Unloaded UTP Keystone Patch Panel
    24 Way Unloaded UTP Keystone Patch Panel
  • Cat6 UTP PVC Solid Cable
    Cat6 UTP PVC Solid Cable
  • ST Fibre Patch Panel
    ST Fibre Patch Panel
  • Singlegang Metal Faceplate with 1 Cat6 UTP Module
    Singlegang Metal Faceplate with 1 Cat6 UTP...
  • 24 Port Cat5e UTP Elite Patch Panel
    24 Port Cat5e UTP Elite Patch Panel
  • CCS Cat5e UTP RJ45 Plug
    CCS Cat5e UTP RJ45 Plug
  • Telescopic Shelves suitable for Floor Standing Cabinets
    Telescopic Shelves suitable for Floor...
  • CCS Krone Style IDC Punchdown Tool
    CCS Krone Style IDC Punchdown Tool

Similar products

  • TP-LINK 8-port 10/100 Unmanaged PoE Switch
    TP-LINK 8-port 10/100 Unmanaged PoE Switch
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • TP-LINK TL-SG1008
    TP-LINK TL-SG1008
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS

TP-LINK 24-Port 10/100Mbps Fast Ethernet Switch

24-port Unmanaged 10/100M, IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP, 10BASE-T: 14880pps/Port 100BASE-TX

TL-SF1024

No reviews yet!

Out of Stock

£40.86
£49.03 Inc VAT.
