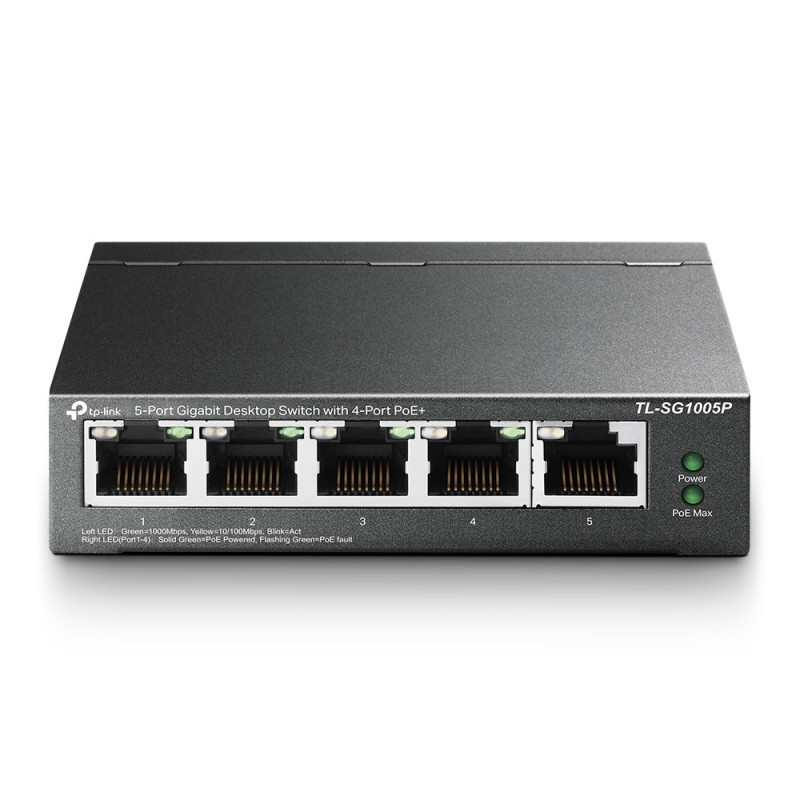

TP-LINK TL-SG1005P
  • TP-LINK TL-SG1005P
  • TP-LINK TL-SG1005P
  • TP-LINK TL-SG1005P
  • TP-LINK TL-SG1005P
  • TP-LINK TL-SG1005P
  • TP-LINK TL-SG1005P
What This Product Does

TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.



Power over Ethernet

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).



Overload Arrangement

TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.



Port Priority Function

Priority (Port 1=Port 2=Port 3>Port 4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 56W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 10W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 10W, no power will be supplied to Port 4.



Easy To Use

TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
AC adapter includedY
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Cable types supportedCat3,Cat4,Cat5,Cat5e,Cat6
Colour of productBlack
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth98 mm
Flow control supportY
Height25 mm
LED indicatorsY
MAC address table2000 entries
Networking standardsIEEE 802.1p,IEEE 802.3af,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Output voltage48 V
Power over Ethernet (PoE)Yes
Quality of Service (QoS) supportY
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardY
Switch typeUnmanaged
Switching capacity10 Gbit/s
User guideY
Width99.8 mm
