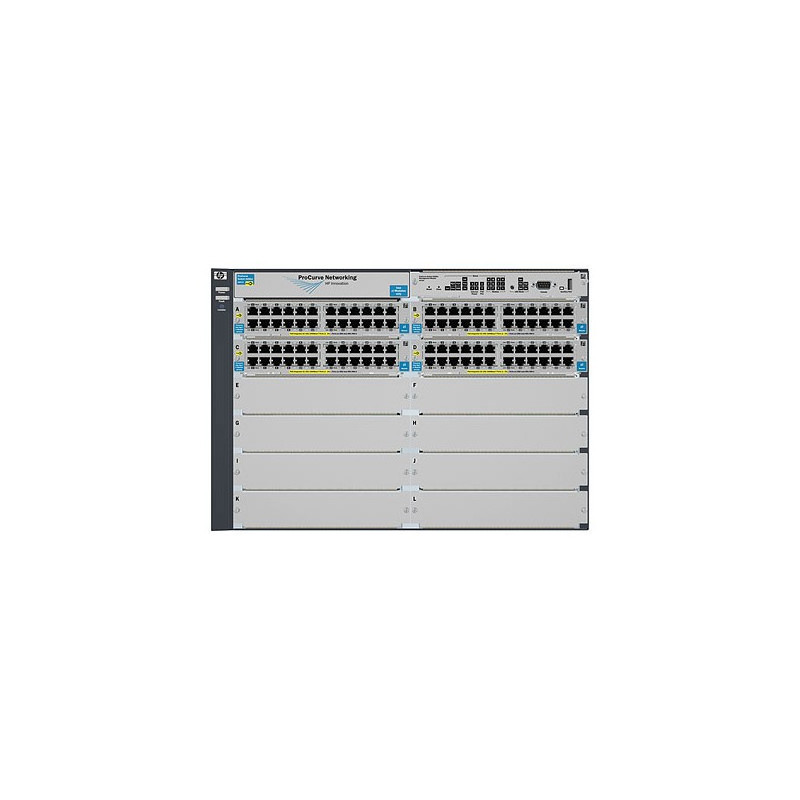

HP 5412-92G-PoE+-4G v2 zl Switch with Premium Software
The HP 5400 zl Switch Series consists of advanced intelligent switches in the HP modular chassis product line, which includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation for the switch series is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With 10/100, Gigabit Ethernet, and 10 Gigabit Ethernet interfaces; choice of PoE+ and non-PoE; integrated Layer 3 features; and HP AllianceOne solutions, the 5400 zl switch series offers excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.

Software-defined networking


• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths



Quality of Service (QoS)


• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis



Management


• Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, or 3500 Switch located anywhere on the network



Connectivity


• IEEE 802.3az Energy Efficient Ethernet: lowers power consumption in periods of low link usage (supported on v2 zl 10/100/1000 and 10/100 modules)



Performance


• High-speed, high-capacity architecture: 1 Tbps crossbar switching fabric provides intra-module and inter-module switching with 585.6 million pps throughput on the purpose-built ProVision ASICs



Resiliency and high availability


• Virtual Router Redundancy Protocol: allows groups of two routers to dynamically back each other up to create highly available routed environments



Layer 2 switching


• VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously

10G supportYes
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity92
Built-in processorPowerPC 8540
Connectivity technologyWired
Copper ethernet cabling technology1000BASE-T,1000BASE-TX,100BASE-TX,10BASE-T
Data link protocolsLLDP
DHCP clientYes
DHCP serverYes
Dimensions (WxDxH)450.9 x 444.5 x 307.3 mm
Electromagnetic compatibilityFCC, VCCI, EN/CISPR
Flash memory128 MB
Flow control supportYes
Form factor7U height
Full duplexYes
Heat dissipation7400 BTU/h
I/O ports92 RJ-45 autosensing 10/100/1000 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+), Media Type: Auto-MDIX, Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 open mini-GBIC
Input frequency50/60 Hz
Input voltage100 - 240 V
Internal memory256 MB
Latency3.7µs/2.1µs
MAC address filteringYes
MAC address table64000 entries
Management platformHP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
Management protocolsIGMPv3, SNMPv1/v2c/v3, XRMON
Maximum data transfer rate1 Gbit/s
Memory typeDDR
MIB supportMLDv1 MIB, MIB II, Bridge MIB, RIPv2 MIB, OSPFv2 MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB, VRRP MIB, Ping MIB
MountingEIA
Networking featuresGigabit Ethernet
Networking standardsIEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x
Noise level64 dB
Number of power supply units2
Number of VLANs2048
Operating altitude0 - 3000 m
Operating relative humidity (H-H)15 - 95 %
Operating relative humidity range15 to 95 @ 131°F
Operating temperature (T-T)32 - 131 °F
Operating temperature range (T-T)0 - 55 °C
Packet buffer memory4 MB
Power consumption (typical)312 W
Power over Ethernet (PoE)Yes
Power requirementsTwo J9306A are installed. Two open power supply slots are available; three different power supplies are available. See power supply products for additional specifications.; Heat dissipation does not include heat dissipated by the PoE-powered devices thems
Power supply1500 W
Power supply type2 x J9306A
Quality of Service (QoS) supportYes
SafetyCSA, UL, IEC, EN
Security algorithms802.1x RADIUS,SSH,SSL/TLS
Source data-sheetIcecat.biz
Spanning tree protocolYes
Storage relative humidity (H-H)15 - 95 %
Storage relative humidity range15 to 95 @ 149°F
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Supported data transfer rates10/100 Mbps
Supported network protocolsIPv6, UDP, TFTP, ICMP, TCP, ARP, Telnet, BOOTP, TFTP, CIDR, SNTP
Switch typeManaged
Switching capacity758.4 Gbit/s
Switching protocolsRIPv1
Throughput564.2 mpps Mpps
Weight33960 g
Wi-FiNo
