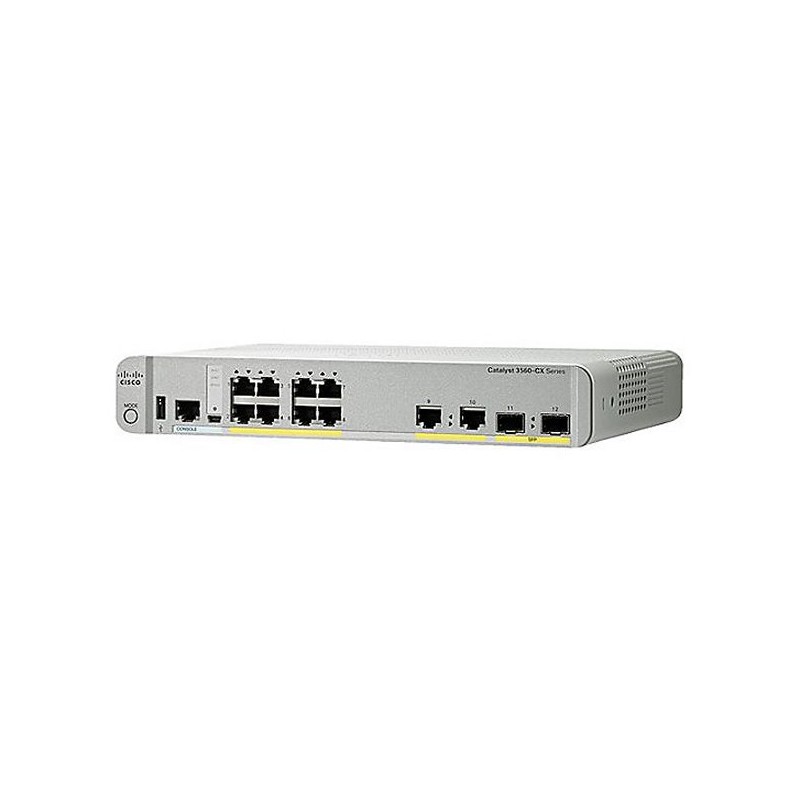

Cisco WS-C3560CX-8PC-S
  • Cisco WS-C3560CX-8PC-S
  • Cisco WS-C3560CX-8PC-S
The Cisco® Catalyst® Compact Switches easily expand your Ethernet and Multigigabit Ethernet Cisco Catalyst switching infrastructure outside the wiring closet to enable new workspaces, extend wireless LANs, and connect PoE devices. These fanless, small form-factor switches are ideal for space-constrained deployments where multiple cable runs would be challenging. With speeds that reach 10Gbps, the Cisco Catalyst 3560CX Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.



The Cisco Catalyst 3560-CX and 2960-CX Series Compact Switches help optimize network deployments. These Gigabit Ethernet (GbE) and Multigigabit Ethernet (mGig) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE+) connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Cisco Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.



With their quiet, fanless design and compact footprint, these switches offer flexible mounting options and open up a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations. The setup allows for shorter cable runs from the compact switches, allowing for flexibility in space redesign and growth as new devices join the network - this eliminating the need for expensive and inflexible cabling infrastructure.
10G supportYes
AC input voltage100-240 V
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Colour of productWhite
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth238 mm
DHCP clientYes
DHCP serverYes
Electromagnetic compatibilityFCC 15, CFR 47, EN 55022 (CISPR22), EN 55024 (CISPR24), CE, AS/NZS, Class A, CISPR22:2004, EN55022, VCCI A, V-3/2007.04, KCC (MIC, GB17625.1-1998) A, KN24/KN22, ANATEL, CCC, China, GOST
Fiber ethernet cabling technology100BASE-BX,100BASE-FX,100BASE-LX,1000BASE-X,1000BASE‑BX,1000BASE‑LH,1000BASE‑SX,1000BASE‑ZX
Fiber typeMulti-mode
Flash memory128 MB
Full duplexYes
Gigabit Ethernet (copper) ports quantity2
Heat dissipation1023.61 BTU/h
Height44.4 mm
Input current3.25 - 1.5 A
Internal memory512 MB
Mean time between failures (MTBF)569530 h
Networking standardsIEEE 802.11ac,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Non-operating altitude3048 - 4000 m
Number of VLANs1023
Operating altitude0 - 3048 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Power consumption (typical)24.4 W
Power over Ethernet (PoE)Yes
Quality of Service (QoS) supportYes
Rack mountingYes
SafetyUL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825
Security algorithms802.1x RADIUS,SNMP
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 70 °C
Switch typeManaged
Switching capacity32 Gbit/s
Throughput17.9 Mpps
Weight2270 g
Width269 mm

WS-C3560CX-8PC-S.pdf

Cisco WS-C3560CX-8PC-S Data Sheet

Download (740.41k)
