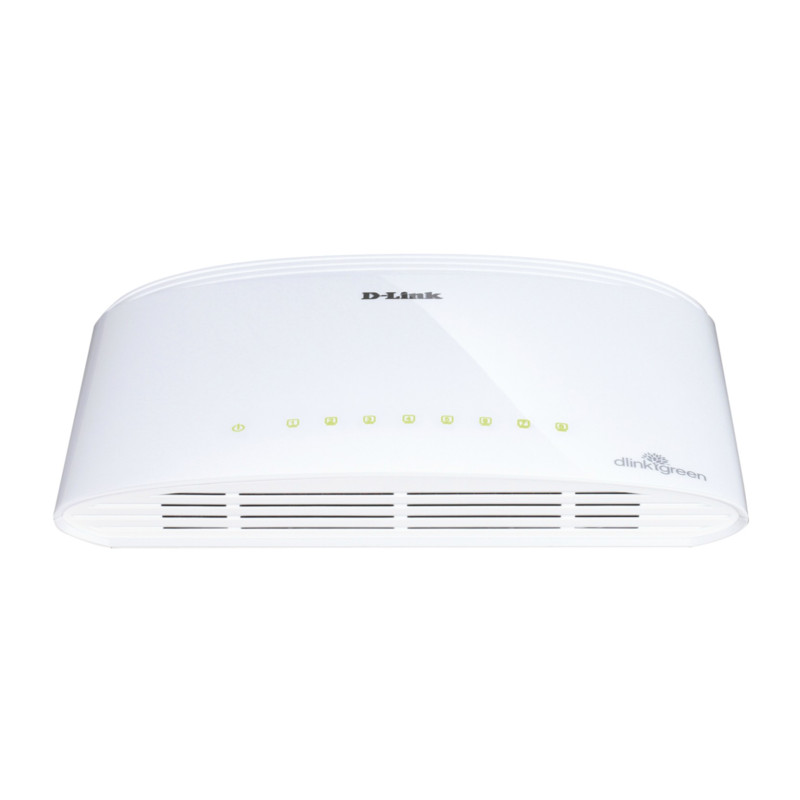

D-Link DGS-1005D
  • D-Link DGS-1005D
  • D-Link DGS-1005D
The first Green Ethernet technology on the market the DGS-1005D features innovative eco-friendly technology



Reduces power consumption & creates less heat

Extended product life

Reduces Operating Costs



Power Savings by Number of Connected Ports and Link Status

Computers do not require Internet access all the time; neither do switches utilize all ports at all times. When a computer or network equipment is shutdown, switches often remain on and continue to consume considerable amount of power. With Green Ethernet technology, D-Link switches can automatically detect link status and reduce power usage of ports that are idle. Computers or any connecting parties set to standby mode (not power off), however, will not provide significant power savings.



Power Savings by Cable Length

The Green Ethernet switches have the ability to analyze the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power.



Overall Power Savings Per Day

For a traditional switch, power consumption remains constant even when the ports are not in use. In a standard workday scenario where PCs are used for 10 hours a day and powered off 14 hours a day, and connected to the switch using 20 meter cables, D-Link's Green Ethernet can save up to 27% power used for each system.



The D-Link DGS-1005D is a 5-port 10/100/1000Mbps Gigabit Switch that delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality.



Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.



Power-Packed

The D-Link DGS-1005D 10/100/1000 Mbps Gigabit Switch features a non-blocking switching architecture that filters and forwards packets at full wire-speed for maximum throughput. An 8,000 MAC address table provides scalability for even the largest networks.



Address learning and aging, 802.3x Flow Control for full duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. Designed using industry standards, it is compatible with virtually all 10, 100, and 1000Mbps Ethernet devices and other vendor equipment. The D-Link DGS-1005D 10/100/1000 Mbps Gigabit Switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.



Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.



It also features diagnostic LEDs which display status and activity, allowing you to quickly detect and correct problems on the network.
Basic switching RJ-45 Ethernet ports quantity5
Connectivity technologyWired
Copper ethernet cabling technology1000BASE-T,100BASE-TX,10BASE-T
Data link protocolsEthernet, Fast Ethernet, Gigabit Ethernet
Data transfer rate1000 Mbit/s
Dimensions (WxDxH)142 x 107 x 30 mm
Drive device, buffer size0.112 MB
Electromagnetic emissionsCE Mark, FCC Class B
Ethernet LAN (RJ-45) ports quantity5
Full duplexYes
I/O ports5x 10/100/1000BASE-T
MAC address table8000 entries
ManagementUnmanaged
Maximum data transfer rate1 Gbit/s
MountingDesktop
Networking standards802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Flow Control, 802.3ab Gigabit Ethernet, 802.1p QoS
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Packet buffer memory0.112 MB
PoENo
Ports quantity5
Power consumption (typical)4.5 W
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
RJ45 Ports Qty5
SafetyCSA
Source data-sheetIcecat.biz
StackableNo
Storage temperature (T-T)-10 - 70 °C
Storage temperature range (T-T)-10 - 70 °C
Switch SpeedGigabit
Switch typeUnmanaged
Switching capacity10 Gbit/s
Weight210 g
