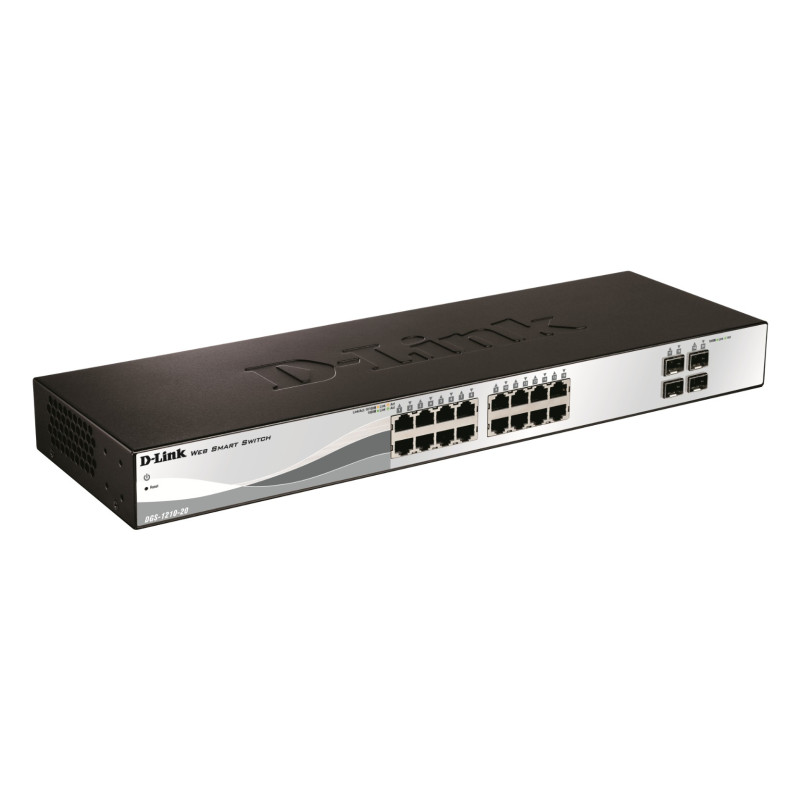

D-Link DGS-1210-20
Green Technology

- IEEE 802.3az Energy Efficient Ethernet

- D-Link Green 3.0 power-s!aving features

- LED and Port Shutoff

- Port Standby

- System Hibernation

- Cable Length Detection

- Link Status Detection

- Time-based PoE (PoE model only)



Security Features

- Access Control List

- D-Link Safeguard Engine

- Port Security

- ARP Spoofing Prevention

- Smart IP-MAC-Port Binding



Intuitive Management

- IPv4/ IPv6 Dual Stack1

- Web GUI (supports 10 languages)

- SmartConsole utility

- SNMP and RMON

- Simplified CLI through Telnet



QoS

- Supports IEEE 802.1p QoS

- Supports DSCP



Advanced Features

- Auto Surveillance VLAN

- Auto Voice VLAN

- Port or VLAN-based Loopback Detection

- Cable Diagnostics

- LLDP/LLDP-MED



Trap & Logs

- SNMP Trap

- Trap for SmartConsole Utility

- System Log
AC input voltage100-240 V
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity20
CertificationFCC, CE, ICES, VCCI, BSMI, C-Tick
Colour of productBlack
Data link protocolsIP
Depth140 mm
DHCP clientYes
DHCP serverYes
Ethernet LAN (RJ-45) ports quantity20
Flow control supportYes
Form factor1U
Full duplexYes
Gigabit Ethernet (copper) ports quantity16
Height44 mm
LED indicatorsYes
MAC address filteringYes
MAC address table16000 entries
ManagementSmart Managed
Management protocolsSNMP, RMON
Maximum data transfer rate1 Gbit/s
MIB supportSNTP, ICMPv6, IPv4/v6
MountingRackmount
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)41 - 122 °F
Operating temperature range (T-T)-5 - 50 °C
Packet buffer memory1 MB
Packet transfer speed29.8Mp/s
PoENo
Ports quantity20
Power consumption (typical)14.06 W
Power LEDYes
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Quality of Service (QoS) supportYes
Rack mountingYes
RJ45 Ports Qty16
SafetycUL, CE LVD
SFP Ports Qty4
Source data-sheetIcecat.biz
Spanning tree protocolYes
StackableYes
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Storage temperature range (T-T)-20 - 70 °C
Store-and-forwardYes
Supported data transfer rates10/100/1000 Mb/s
Switch layerL2
Switch SpeedGigabit
Switch typeManaged
Switching capacity40 Gbit/s
Weight2200 g
Width440 mm

You might also like

  • Cat5e UTP LSOH Solid Cable
    Cat5e UTP LSOH Solid Cable
  • RackyRax 550x550 Wall Mounted Data Cabinet
    RackyRax 550x550 Wall Mounted Data Cabinet
  • UK Socket / UK Plug Rack PDU
    UK Socket / UK Plug Rack PDU

Similar products

  • TP-LINK 8-port 10/100 Unmanaged PoE Switch
    TP-LINK 8-port 10/100 Unmanaged PoE Switch
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • TP-LINK TL-SG1008
    TP-LINK TL-SG1008
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS

D-Link DGS-1210-20

16x Gigabit Ethernet, 4x SFP, 40Gb/s, Black

DGS-1210-20

In Stock

£129.39
£107.82 Ex VAT.
