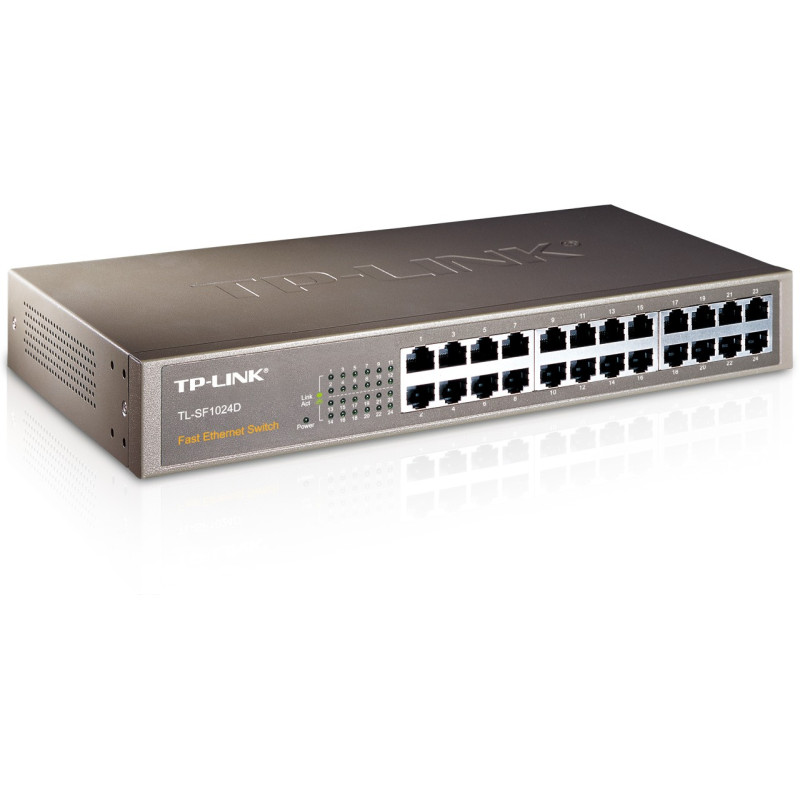

TP-LINK TL-SF1024D 24 Port 10/100 Switch
  • TP-LINK TL-SF1024D 24 Port 10/100 Switch
  • TP-LINK TL-SF1024D 24 Port 10/100 Switch
  • TP-LINK TL-SF1024D 24 Port 10/100 Switch
What This Product Does

The TL-SF1024D Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.



High Performance

The metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 24 user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.



TP-LINK Green Technology

This new generation The TL-SF1024D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.



Easy to Use

The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity24
CertificationFCC, CE
Connectivity technologyWired
Dimensions (WxDxH)294 x 180 x 44 mm
Ethernet LAN (RJ-45) ports quantity24
Flow control supportYes
Full duplexYes
LED indicatorsLink,Power
MAC address filteringYes
MAC address table8000 entries
ManagementUnmanaged
Maximum data transfer rate0.1 Gbit/s
MountingDesktop & Rackmount
Networking standardsIEEE 802.3,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
PoENo
Ports quantity24
Power requirements100 - 240VAC, 50/60Hz
Rack mountingYes
RJ45 Ports Qty24
Source data-sheetIcecat.biz
StackableNo
Storage relative humidity (H-H)5 - 90 %
Storage relative humidity range5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Store-and-forwardYes
Supported data transfer rates10/100 Mbps
Supported network protocolsCSMA/CD, TCP/IP
Switch Speed10/100
Switch typeUnmanaged
Switching capacity4.8 Gbit/s
Wi-FiNo
Wireless LAN connectionNo

You might also like

  • CCS Cat6 UTP RJ45 Plug
    CCS Cat6 UTP RJ45 Plug
  • LC - LC Multimode Duplex Fibre Patch Leads
    LC - LC Multimode Duplex Fibre Patch Leads
  • Connectix Pocket Socket Tester
    Connectix Pocket Socket Tester
  • RJ45 Boot
    RJ45 Boot
  • Easy RJ45 Crimp Tool
    Easy RJ45 Crimp Tool
  • DoubleGang CCS Flat Euro Style Faceplate
    DoubleGang CCS Flat Euro Style Faceplate
  • 19" Cabinet Blanking Panels
    19" Cabinet Blanking Panels
  • Cat6 UTP RJ45 Through Coupler
    Cat6 UTP RJ45 Through Coupler
  • LC - SC Multimode Duplex Fibre Patch Leads
    LC - SC Multimode Duplex Fibre Patch Leads
  • APC Back-UPS
    APC Back-UPS

Similar products

  • TP-LINK 8-port 10/100 Unmanaged PoE Switch
    TP-LINK 8-port 10/100 Unmanaged PoE Switch
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • TP-LINK TL-SG1008
    TP-LINK TL-SG1008
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS

TP-LINK TL-SF1024D

24-Port 10/100Mbps, IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP

TL-SF1024D

In Stock

£51.42
£42.85 Ex VAT.

Collect monkey points, exchange for Amazon vouchers
Require project pricing? - request a quoteNeed a trade account? - send us your details Are you a public sector organistion? - open a credit account
