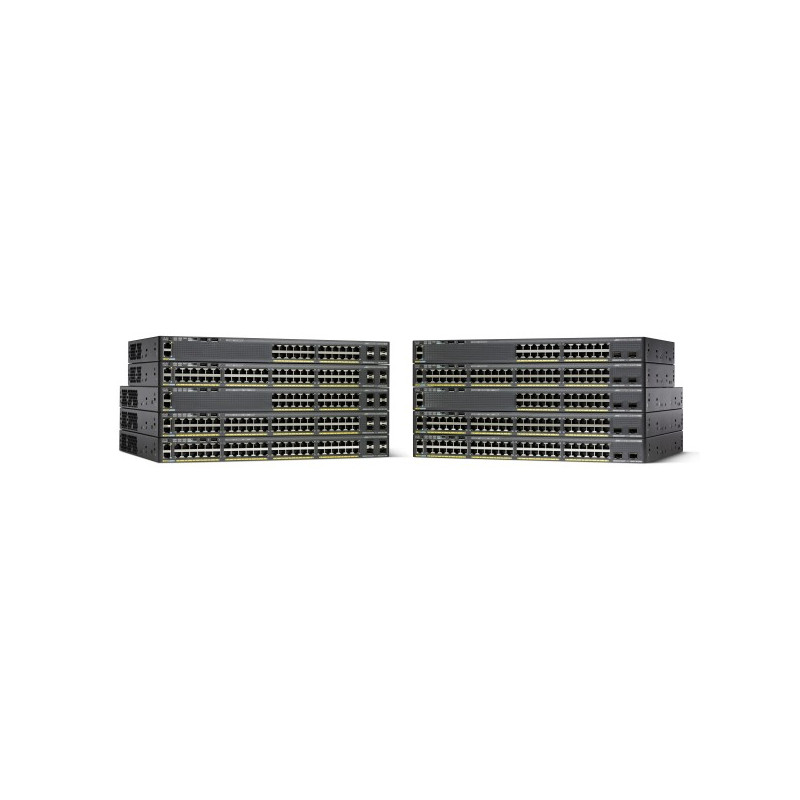

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.
- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.
- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.
- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).
- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.
- Reduced power consumption and advanced energy management features.
- USB and Ethernet management interfaces for simplified operations.
- Application visibility and capacity planning with integrated NetFlow-Lite.
- LAN Base or LAN Lite Cisco IOS® software features.
- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
| 10G support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Built-in processor | APM86392 |
| Colour of product | Black |
| Depth | 408 mm |
| DHCP server | Yes |
| Flash memory | 96 MB |
| Height | 990mm |
| Internal memory | ≈ 5,000 Cat 8 with plots; ≈ 12,000 Cat 6A with plots |
| Mean time between failures (MTBF) | 231590 h |
| Memory type | SLC |
| Networking standards | IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Noise level | 97.4 dB |
| Non-operating altitude | 0 - 4000 m |
| Number of VLANs | 1023 |
| Operating altitude | 914.4 - 2133 m |
| Operating relative humidity (H-H) | 10 - 95 % |
| Operating relative humidity range | 10 - 95 % |
| Operating temperature (T-T) | 8 - 35 °C |
| Operating temperature range (T-T) | 5 - 40 °C |
| Output power | 1025 W |
| Power consumption (typical) | 61.9 W |
| Power over Ethernet (PoE) ports quantity | 96 |
| Power over Ethernet (PoE) support | Yes |
| Processor clock speed | 600 MHz |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Storage relative humidity (H-H) | 10 - 95 % |
| Storage relative humidity range | 10 - 95 % |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage temperature range (T-T) | -25 - 70 °C |
| Switch layer | L7 |
| Switching capacity | 993.6 Gbps |
| USB 2.0 ports quantity | 7 |
| Weight | 6600 g |
| Width | 993 mm |
Specific References
- EAN13
- 0882658598180
Cisco WS-C2960XR-48FPD-I
Catalyst 2960-XR, 48 x 10/100/1000 Ethernet, 2 x SFP+, APM86392 600MHz dual core, DRAM 512MB, Flash 128MB, PoE 740W, IP Lite
£5,371.44
£4,476.20 Ex. VAT
