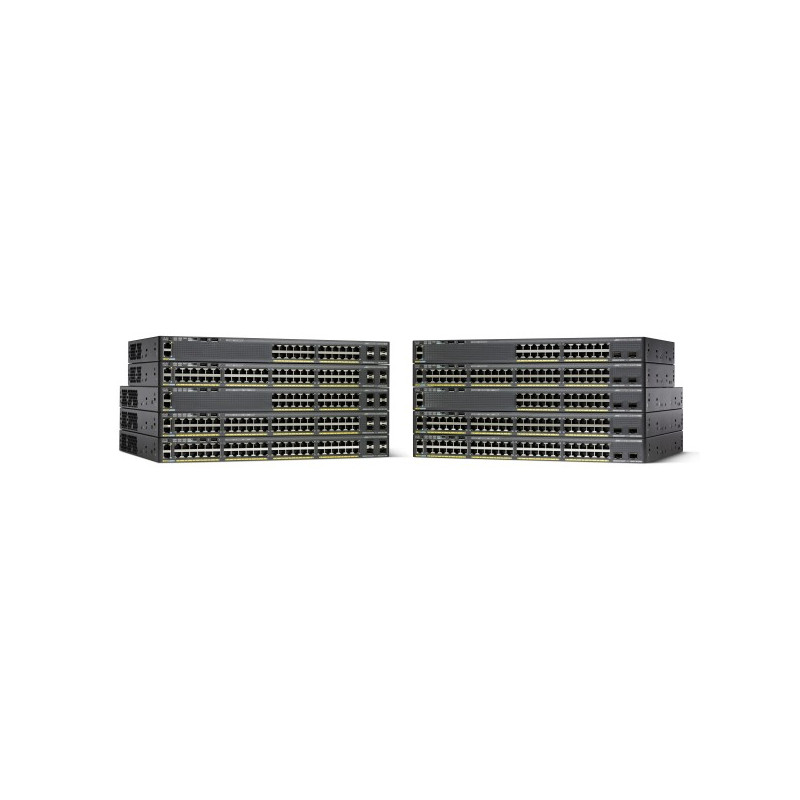

Cisco Catalyst 2960-XR
Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.



- 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance.

- Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks.

- FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional).

- Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget.

- Reduced power consumption and advanced energy management features.

- USB and Ethernet management interfaces for simplified operations.

- Application visibility and capacity planning with integrated NetFlow-Lite.

- LAN Base or LAN Lite Cisco IOS® software features.

- Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement.
AC input frequency50/60 Hz
AC input voltage100-240 V
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Built-in processorAPM86392
Colour of productBlack
Depth408 mm
DHCP serverYes
Flash memory128 MB
Full duplexYes
Height44.5 mm
Internal memory512 MB
LED indicatorsYes
Mean time between failures (MTBF)321290 h
Memory typeDRAM
Networking standardsIEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Noise level48 dB
Non-operating altitude0 - 4000 m
Number of power supply units1
Number of VLANs1023
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 95 %
Operating relative humidity range10 - 95 %
Operating temperature (T-T)-5 - 40 °C
Operating temperature range (T-T)5 - 40 °C
Output power640 W
Power consumption (typical)43.2 W
Power LEDYes
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) supportYes
Processor clock speed600 MHz
Quality of Service (QoS) supportYes
Rack mountingYes
Redundant power supply (RPS) supportYes
SafetyUL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Spanning tree protocolYes
StackableYes
Storage relative humidity (H-H)10 - 95 %
Storage relative humidity range10 - 95 %
Storage temperature (T-T)-25 - 70 °C
Storage temperature range (T-T)-25 - 70 °C
Switch layerL2
Switch typeManaged
Switching capacity216 Gbit/s
USB 2.0 ports quantity2
Web-based managementYes
Weight6200 g
Width445 mm
