Cisco 5-Port Gigabit Ethernet Shared Port Adapter
The Cisco ® Interface Flexibility (I-Flex) design combines shared port adapters (SPAs) and SPA interface processors (SIPs), taking advantage of an extensible design that helps enable service prioritization for voice, video, and data services. Enterprise and service provider customers can take advantage of improved slot economics resulting from modular port adapters that are interchangeable across Cisco routing platforms. The Cisco I-Flex design maximizes connectivity options and offers superior service intelligence through programmable interface processors that deliver line-rate performance. Cisco I-Flex enhances speed-to-service revenue and provides a rich set of quality of service (QoS) features for premium service delivery while effectively reducing the overall cost of ownership. This data sheet contains the specifications for the Cisco 2-, 5-, 8-, and 10-Port Gigabit Ethernet Shared Port Adapters, Version 2.



The Cisco 2-, 5-, 8-, and 10-Port Gigabit Ethernet SPAs are available on high-end Cisco routing platforms, offering the benefits of network scalability with lower initial costs and ease of upgrades. The Cisco SPA/SIP portfolio continues the company's focus on investment protection along with consistent feature support, broad interface availability, and the latest technology. The Cisco SPA/SIP portfolio allows deployment of different interfaces (Packet over SONET/SDH [PoS], ATM, Ethernet, etc.) on the same interface processor.



Gigabit Ethernet interfaces are commonly used for interconnecting routers or other devices within a central office or data center or in a metropolitan-area network (MAN). Cisco offers an extensive variety of 1000BASE-X Gigabit Ethernet SPAs to meet customers' needs for various applications. With Cisco Gigabit Ethernet SPAs, you can mix-and-match SPA ports with other types of interfaces in the same slot. Each SPA provides standards-based Gigabit Ethernet implementation for compatibility and interoperability.
Colour of productStainless steel
CompatibilityCisco 7600 Series Router (2-, 5-, & 10-port SPAs) Cisco 12000 Series Router (2-, 5-, 8-, & 10-port SPAs) Cisco XR 12000 Series Router (2-, 5-, 8-, & 10-port SPAs) Cisco CRS Carrier Routing System (5-, 8-, & 10-port Gigabit Ethernet SPAs)
Connectivity technologyWired
Data transfer rate1 Gbit/s
Depth184.9 mm
Dimensions (WxDxH)171.5 x 184.9 x 20.3 mm
Electromagnetic compatibilityCFR 47, FCC, ICES 003, CISPR 22, EN 55022, EN 300386, AS/NZS, VCCI, EN 50082-1, EN 55024
Fiber optic connectorSFP
Flow control supportYes
Full duplexYes
Height20.3 mm
InterfaceFiber
InternalYes
LED indicatorsYes
Management protocolsSNMP
MIB supportRFC 2737, RFC 1757
Networking standardsIEEE 802.1Q,IEEE 802.3x,IEEE 802.3z
Number of VLANs8000
Operating altitude-60 - 4000 m
Operating relative humidity (H-H)5 - 85 %
Operating relative humidity range5 - 85 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Power consumption (typical)18.1 W
Quality of Service (QoS) supportYes
SafetyUL 60950-1, CSA C22 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950, EN 60825-1, EN 60825-2, 21 CRF 1040
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Weight340 g
Width171.5 mm

Similar products

  • TP-LINK 8-port 10/100 Unmanaged PoE Switch
    TP-LINK 8-port 10/100 Unmanaged PoE Switch
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • TP-LINK TL-SG1008
    TP-LINK TL-SG1008
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS

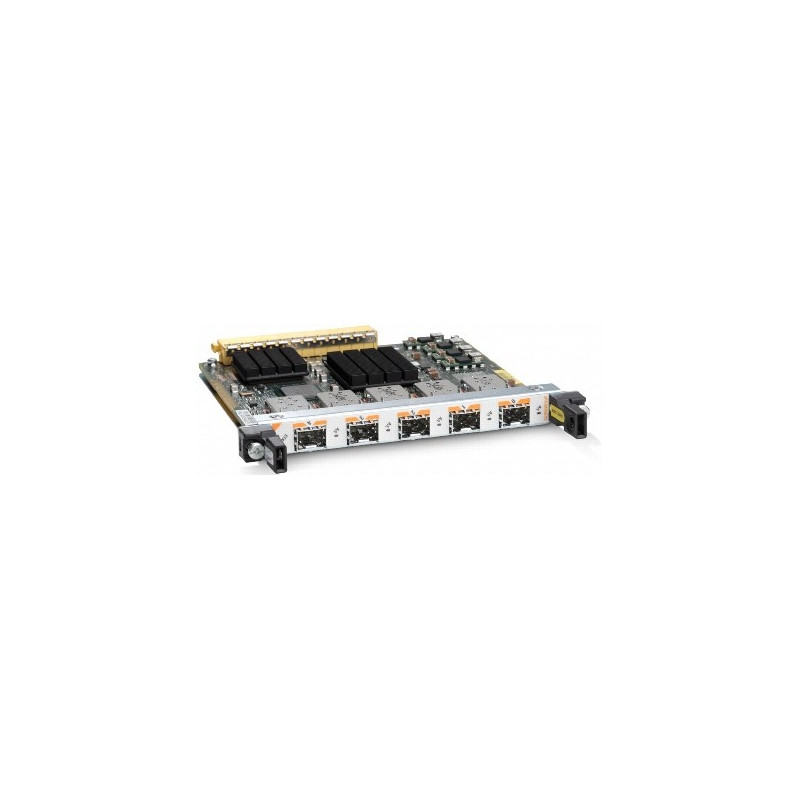

Cisco SPA-5X1GE-V2

5-Port Gigabit Ethernet Shared Port Adapter, Spare

SPA-5X1GE-V2=

Out of Stock

£19,079.28
£15,899.40 Ex VAT.
