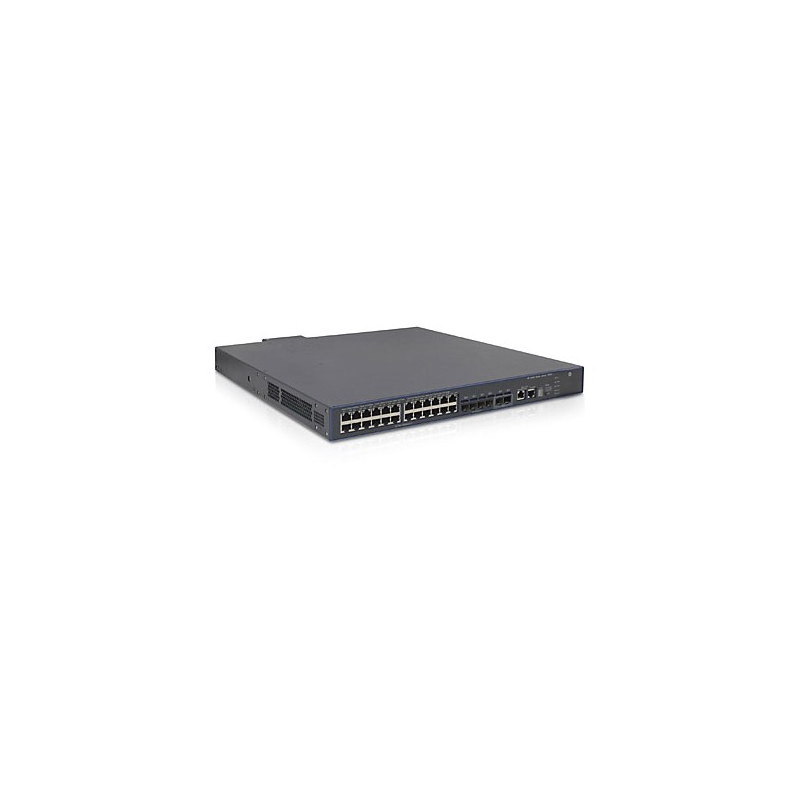

HP 5500-24G-PoE+-4SFP HI Switch with 2 Interface Slots
The HP 5500 HI Switch Series delivers outstanding resiliency, security, and multiservice support at the edge layer of large campus and branch networks. The HP 5500 HI has a robust feature set supporting 1440W PoE+, fixed and modular 10GbE, 9 chassis IRF stacking, Static & RIP Routing, OSPF, MPLS, ACLs, IPv6 and Energy Efficient Ethernet.



The HP 5500 HI Switch Series offers advanced technologies including OAM, CFD, Multi-level QoS, MPLS, and VPLS, and can be managed with the HP Intelligent Management Center (IMC) for a single view of your entire network.



Features

Highly Resilient, More Secure and Scalable Access Layer Switches



The HP 5500 HI Switch Series delivers outstanding resiliency, security, and multiservice support capabilities features at the edge layer of data center and large campus networks. Advanced technologies include OAM, CFD, RRPP, BFD, Multi-level QoS, MPLS, and VPLS.



Offers scalable stacking with fixed or modular 10GbE uplinks (SFP+ and 10GBASE-T) and up to 1440W of PoE+ power with dual redundant hot-swappable power supplies for growth and reliability.



The HP Intelligent Resilient Framework (IRF) virtualizes up to nine physical switches into one logical device for simpler, flatter, more agile networks. The 5500 HI has IPv6 support and fully featured L3 functionality, including RIP, OSPF, ISIS, BGP, and PIM.



Includes software-defined network (SDN) capabilities with OpenFlow 1.3 support for future proofing your network.



Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.



Powerful Performance with Higher Levels of Security



The 5500 HI Switch Series provides higher levels of security with hardware-based, wire-speed access control lists (ACLs).



Provides simple administration without impacting network performance offering feature-rich TCAM-based ACL implementation.



Non-blocking architecture delivers up to 224 Gbps of wire-speed switching with a non-blocking switching fabric and up to 167 million pps throughput.



Robust Quality of Service



The HP 5500 HI Switch Series supports advanced classifier-based QoS which classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch.



Creates traffic classes based on ACLs, IEEE 802.1p precedence, IP, and DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror, or remark.



Get extensive traffic prioritization with congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), weighted random early discard (WRED), weighted deficit round robin (WDRR), SP+WDRR, and SP+WFQ.



Comprehensive Security Control and a Single View of the Network



The HP 5500 HI Switch Series supports flexible authentication methods including 802.1X, MAC, and Web Authentication for greater security and policy-driven application authentication.



Offers identity-driven security and access control with automatic VLAN assignment and per-user ACLs allow access to specific network services without risking network security. Security features include: IP source guard, DHCPv6 snooping, STP BPDU port protection, RADIUS/HWTACACS, and SSL.



Can be seamlessly managed with HP Intelligent Management Center (IMC) to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.



RMON, and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
AC input frequency50/60 Hz
AC input voltage100-240 V
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Colour of productBlack
Depth460 mm
Dimensions (WxDxH)439.9 x 460 x 43.7 mm
Electromagnetic compatibilityEN 55022 Class A; CISPR 22 Class A; EN 55024; ICES-003 Class A; CISPR 24; AS/NZS CISPR 22 Class A; EN 61000-3-2; EN 61000-3-3; GB9254; VCCI-3 CLASS A; VCCI-4 CLASS A; ETSI EN 300 386; FCC Part 15 (CFR 47) CLASS A; YD/T993
Flash memory512 MB
Heat dissipation460 BTU/h
Height43.7 mm
I/O ports24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+) Media Type: Auto-MDIX Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 fixed Gigabit Et
Input frequency50 - 60 Hz
Internal memory1024 MB
Latency1000 Mb Latency: < 5 µs; 10 Gbps Latency: < 3 µs
Latency (10 Gbps)3 µs
MAC address table32000 entries
Memory typeSDRAM
MountingMounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Operating temperature range (T-T)0 - 45 °C
Packet buffer memory3 MB
Power consumption (typical)150 W
Power over Ethernet (PoE)Yes
Power requirementsMaximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, and all ports plugged in, and all modules populated.
Rack mountingYes
SafetyUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; ROHS Compliance; AS/NZS 60950-1; GB 4943
Source data-sheetIcecat.biz
StackableYes
Storage relative humidity range5 to 95 %
Storage temperature range (T-T)-40 - 70 °C
Switch layerL3
Switch typeManaged
Switching capacity176 Gbit/s
Throughput130.9 mpps
Weight10000 g
Width439.9 mm
