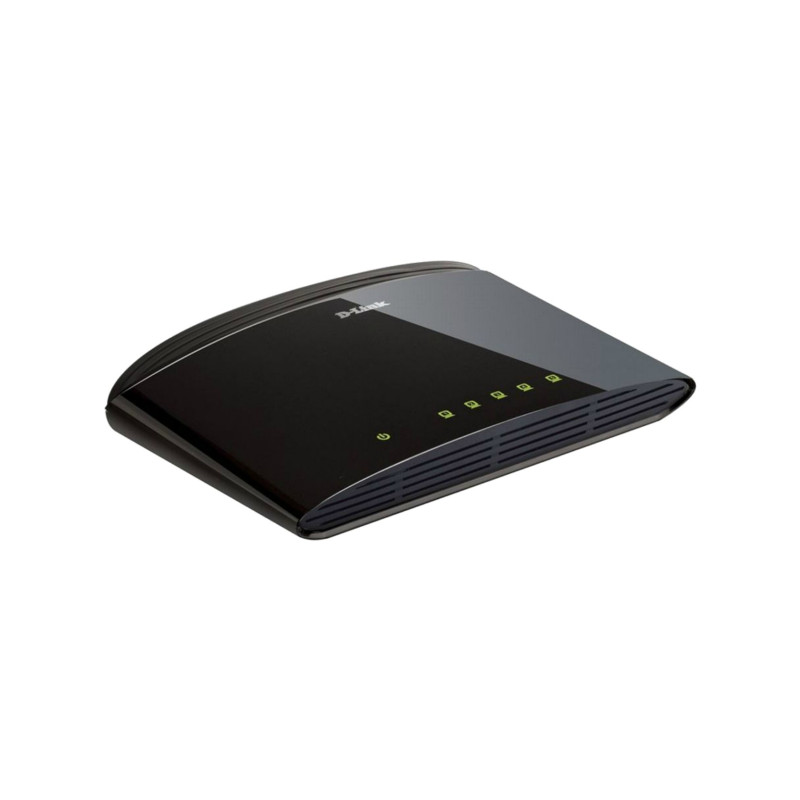

D-Link DES-1005D
  • D-Link DES-1005D
  • D-Link DES-1005D
  • D-Link DES-1005D
Images are for illustrative purposes only.
  • More info

  • Details

  • Spec Sheet

  • Reviews

david s - 20/03/2021

Does the gob fine

The DES-1005D is an unmanaged 10/100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.





5 Auto-sensing 10/100Mbps Ports

The switch comes with 5 10/100Mbps ports, allowing a small workgroup to flexibly connect to Ethernet ad Fast Ethernet and integrate. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX

and 10BASE-T, as well as between full- and half-duplex.



Flow Control for Secure Transmission

All ports support 802.3x flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full. Flow

control is available in the full-duplex mode.



Auto-negotiation of MDI/MDIX Cross Over

All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable.



SOHO Plug-and-Play

With 5 plug-and-play ports, the switch is a perfect choice for the small workgroup to upgrade performance in a client/server environment. The ports can be connected to servers in full-duplex, or hubs in half-duplex.



Desktop Power

With low-cost connection per-port, the switch can also be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network.



10/100Mbps Network Kit

For network starters, a convenient kit is available for ready installation. This kit includes a DES-1005D switch, 2 10/100Mbps Fast Ethernet PCI cards, and 2 6-meter (20-foot) UTP cables.



Features:

5 10/100Mbps ports

Per-port auto MDI/MDIX

All ports support full/half-duplex, network speed autonegotiation

Per-port 802.3x flow control for protection against data loss

Auto-learning of network configuration

Secure store-and-forward switching scheme

Auto-correction of reverse twisted-pair polarity

Compact palm-sized
Basic switching RJ-45 Ethernet ports quantity5
Copper ethernet cabling technology100BASE-TX,10BASE-T
Data link protocolsEthernet, Fast Ethernet
Data transfer rate100 Mbit/s
Dimensions (WxDxH)142 x 32 x 108 mm
Electromagnetic emissionsFCC Class B, CE Mark, VCCI Class B
Full duplexYes
I/O ports5x 10/100 Ethernet ports 1x Power Adapter port
LED indicatorsPer device: Power. Per port: Link/Activity, Full-duplex, Collision
MAC address table2000 entries
ManagementUnmanaged
Maximum data transfer rate0.1 Gbit/s
MountingDesktop
Networking standardsIEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
Packet transfer speed14880 - 148800 pps
PoENo
Ports quantity5
Power consumption (typical)3.6 W
Power requirementsDC 7.5V/1A
RJ45 Ports Qty5
Source data-sheetIcecat.biz
StackableNo
Storage relative humidity (H-H)5 - 90 %
Storage relative humidity range5 - 90 %
Storage temperature (T-T)-10 - 70 °C
Storage temperature range (T-T)-10 - 70 °C
Switch Speed10/100
EAN0790069219887
ManufacturerD-Link
