Cisco Catalyst 2960-C
Catalyst 2960-C

Cisco® Catalyst® compact switches easily extend an intelligent, fully managed Cisco Catalyst wired switching infrastructure, including end-to-end IP and Borderless Network services, with a single Ethernet cable or fiber from the wiring closet. These attractive, small form-factor Fast Ethernet switches are ideal for connecting multiple devices on the retail sales floor; in classrooms, hotels, and factories; and for extending wireless LAN networks: wherever space is at a premium and multiple cable runs could be challenging.



Cisco Catalyst 2960-C Series Compact Switche highlights:

- Extend a highly secure, intelligent, managed Cisco Catalyst infrastructure with a single Ethernet cable or fiber from the wiring closet;

- Support for advanced security and services, including voice, video, and Cisco Borderless Network services, to remote endpoints;

- Attractive, small form factor and fanless operation fit in confined spaces where multiple cable runs could be challenging;

- Easy to deploy, manage and extend the network loop free;

- Enhanced limited lifetime hardware warranty.
Auto MDI/MDI-XYes
Bandwidth10 Gbit/s
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
CertificationFCC, EN, CE, AS/NZS, VCCI, KCC, ANATEL, CCC, GOST, ROHS, CLEI
Colour of productWhite
Connectivity technologyWired
Copper ethernet cabling technology1000BASE-T,1000BASE-TX,100BASE-T,100BASE-TX,10BASE-T
Depth213 mm
DHCP serverYes
Dimensions (WxDxH)269 x 238 x 44.4 mm
Fiber ethernet cabling technology1000BASE‑LH,1000BASE‑LX,1000BASE‑SX,1000BASE‑ZX,100BASE-BX,100BASE-FX,100BASE-LX
Fiber optic connectorLC, SFP
Flash memory64 MB
Flow control supportYes
Full duplexYes
Gigabit Ethernet (copper) ports quantity2
Heat dissipation38 BTU/h
Height44.4 mm
Input current0.21 - 0.1 A
Input voltage100 - 240 V
Internal memory128 MB
LED indicatorsLAN,Link,Power,Y
MAC address table8000 entries
Management protocolsSNMPv1/v2c/v3, LLDP, IGMP
Maximum data transfer rate1 Gbit/s
Mean time between failures (MTBF)516980 h
MIB supportRMON-MIB, RMON2-MIB, Bridge-MIB, CDP-MIB, Entity-MIB, ENVMON-MIB, Flash-MIB, FTP-MIB, Image-MIB, IP-Stat-MIB, LAG-MIB, MAC-MIB, PAGP-MIB, Ping-MIB, QOS-MIB, Security-MIB, RTTMON-MIB, SMI-MIB, STP-MIB, Syslog-MIB, TC-MIB, TCP-MIB, UDLDP-MIB, VTP-MIB, Eth-M
Networking featuresGigabit Ethernet
Networking standardsIEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Non-operating altitude0 - 4000 m
Number of VLANs255
Operating altitude0 - 3048 m
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Operating temperature range (T-T)-5 - 45 °C
Packet transfer speed3.8 mpps
Power consumption (typical)11 W
Power LEDYes
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Quality of Service (QoS) supportYes
Rack mountingNo
SafetyUL, CAN/CSA, EN, IEC, CE, GB
Security algorithms802.1x RADIUS,SSH
Security algorithms supported802.1x RADIUS, SSH
Spanning tree protocolYes
StackableNo
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-25 - 70 °C
Storage temperature range (T-T)-25 - 70 °C
Supported data transfer rates10/100 Mbps
Supported network protocolsIP, IPv6, FTP, TFTP, UDP, ICMP, TCP, ARP, NTP, OSPFv2, BOOTP, Telnet
Switch layerL2
Switch typeManaged
Throughput3.8 Mpps
USB 2.0 ports quantity2
Web-based managementYes
Weight1270 g
Width269 mm
Wireless LAN connectionNo

Similar products

  • TP-LINK 8-port 10/100 Unmanaged PoE Switch
    TP-LINK 8-port 10/100 Unmanaged PoE Switch
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • TP-LINK TL-SG1008
    TP-LINK TL-SG1008
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS

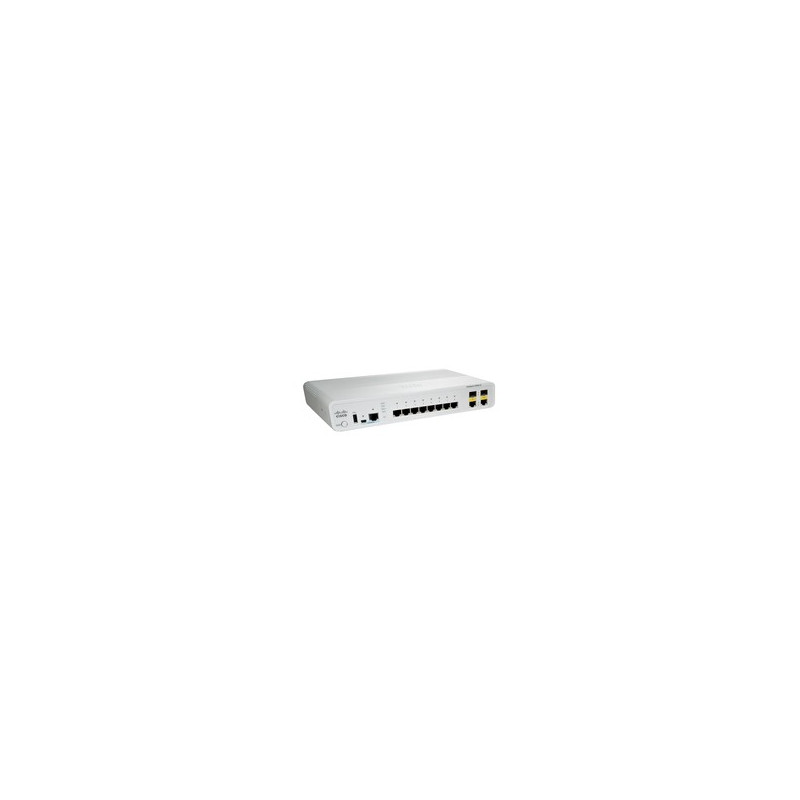

Cisco WS-C2960C-8TC-S

Catalyst 2960-C, Fast Ethernet, 8 x 10/100 LAN, 2 x 1Gb Combo SFP, LAN Lite, 1.27kg, White

WS-C2960C-8TC-S

Out of Stock

£444.39
£370.33 Ex VAT.

Collect monkey points, exchange for Amazon vouchers
Require project pricing? - request a quoteNeed a trade account? - send us your details Are you a public sector organistion? - open a credit account
