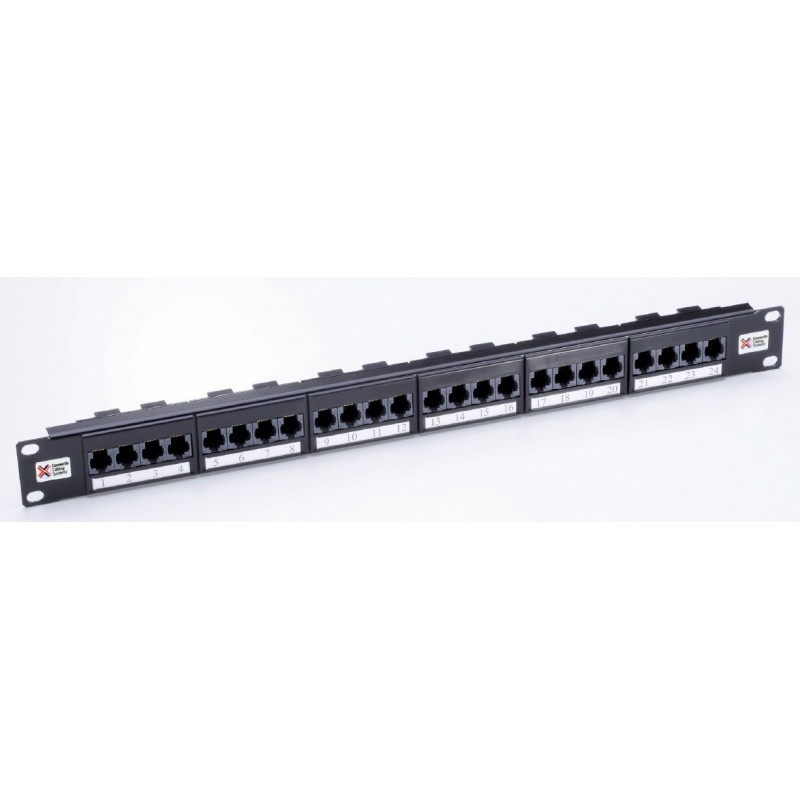

24 Way Voice Host Patch Panel
  • 24 Way Voice Host Patch Panel
  • 24 Way Voice Host Patch Panel
Images are for illustrative purposes only.
  • More info

  • Details

  • Spec Sheet

The Connectix Elite Phone Host Panel has been designed to allow for integration of phone lines into the structured cabling network. It  comprises of separate units that have a single input at the rear which is distributed to 4 outputs on the front.

The Elite Phone Host Panel allows 4 extensions to share a single phone within each of the units. The units can be connected together giving the option of multiple extensions from a single panel.

The panel has been designed to match all the other panels in the Connectix Elite Panel range ensuring versatility and flexibility.

A 12 port format is available specifically for the Connectix Home Cabling range.

Features:

  • High density 12 or 24 ports in 1u
  • Custom logo service available
  • Available in a range of colours
  • RJ45 to RJ45/IDC connection
  • 4 outlets from 1 input



Specification:

  • Width - 483mm (19”)
  • Depth - 30mm
  • Height - 1u (44mm)
  • Material - Mild steel sheet CR4 to BSEN 10130-1999 DC01 Plastic inserts ABS thermoplastic resin with grade UL94 V0 at 1.5mm flame retardancy
  • Finish - Black powder coat BS6496
  • Socket Labels - 9mm numbered card with acetate cover
  • RJ45 Sockets - Unshielded vertical jacks
  • IDC Block - 4 way industry standard IDC blocks
  • PCB - Groups of 4 identical circuits on 1.6mm double sided PTH boards
  • Conforms to - TIA/EIA-568-C Enhanced Category 5 Specification
Depth30mm
Height44mm (1u)
Width483mm (19")
ManufacturerConnectix Cabling Systems
