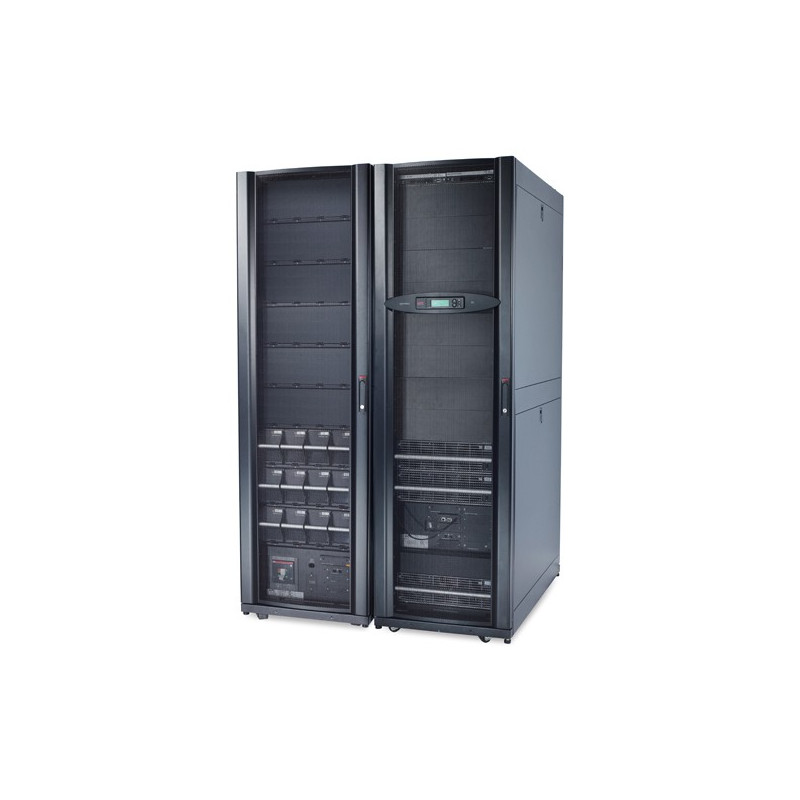

APC SY32K96H uninterruptible power supply (UPS)
  • APC SY32K96H uninterruptible power supply (UPS)
Images are for illustrative purposes only.
  • More info

  • Details

InfraStruXure Central compatible

Enables centralized management via APC InfraStruXure® Central.

Modular design

Increases adaptability with an open architecture configurable to any IT environment.

Modular design

Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.

LCD display

Alpha-Numeric Display which displays system parameters and alarms.


Customize UPS capabilities with management cards.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Configurable for N+1 internal redundancy

Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery modules connected in parallel

Delivers higher availability through redundant batteries.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS overload condition or fault.

Audible alarms

Provides notification of changing utility power and UPS conditions.

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Scalable runtime

Allows additional run time to be quickly added as needed.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Scalable power capacity

Reduces UPS over-sizing costs today by allowing quick upgrades later.

Programmable frequency

Ensures compatibility with different input frequencies.

Redundant Intelligence Modules

Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.

Power Modules connected in parallel

Enhances availability by allowing immediate, seamless recovery from isolated module failures.

Modular design

Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.

Manageable external batteries

Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.

Network manageable

Provides remote management of the UPS over the network.

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Modular design

Modular design provides scalable solutions to add cooling as demand increases.

Battery replacement without tools

Allows quick, easy battery replacement.

Front-access servicing

Simplifies installation and maintenance while minimizing space requirements.

LED status indicators

Quickly understand unit and power status with visual indicators.
Battery recharge time3.50 h
Battery typeVRLA
CertificationCE,EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111
Colour of productBlack
Dimensions (WxDxH)1200 x 1070 x 1991 mm
Form factor42U
Nominal output voltage230 - 400 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 999.9 m
Operating relative humidity range0 - 95 %
Operating temperature range (T-T)0 - 40 °C
Output connections1x Hard Wire 5-wire (3PH + N + G)
Output power32000 W
Output power capacity (VA)32000 VA
Package dimensions (WxDxH)1696 x 1210 x 2140 mm
Power supply input frequency40/70 Hz
Source data-sheetIcecat.biz
Storage relative humidity range0 - 95 %
Storage temperature range (T-T)-15 - 40 °C
Weight1029000 g
