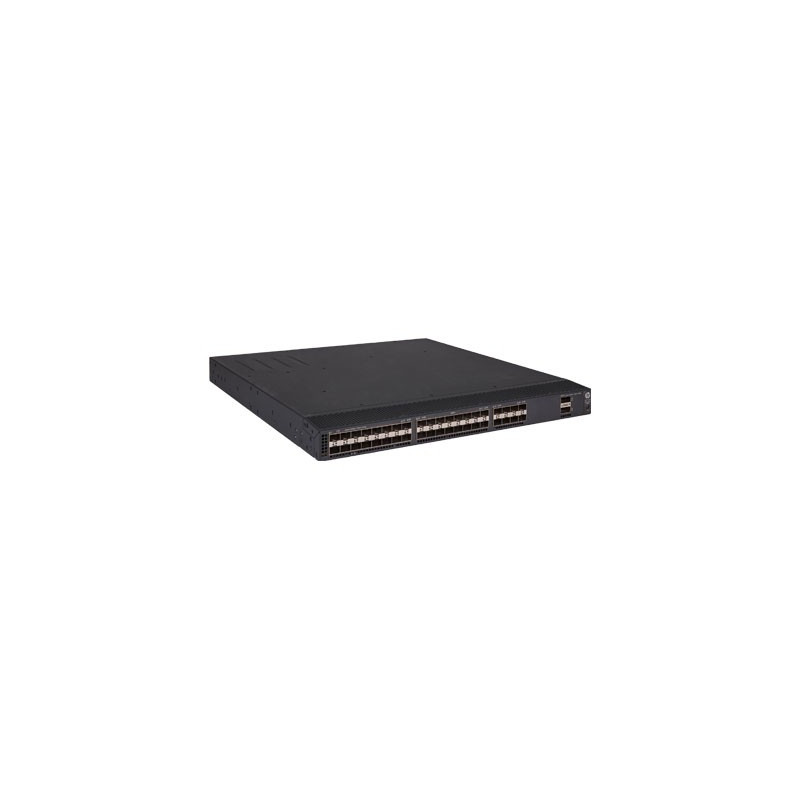

HP FlexFabric 5700-40XG-2QSFP+ Switch
The HP FlexFabric 5700 Switch Series provides an open door for expanding your enterprise network by adding capacity with local switching and L2/L3 support. Take advantage of IRF enhancements for spine/leaf configurations, to simplify network management and expand server connectivity. Resilience and ease of management come hand–in-hand with the FlexFabric 5700.



While IRF reduces management complexities by up to 88%, it also delivers <50msec convergence time. You can rely on the FlexFabric 5700 to lower TCO with up to a 25% lower cost than competing devices.



Features

Expand Your Data Center Network with Confidence



The HP FlexFabric 5700 Switch Series expands your enterprise network by adding local switching capacity for better scalability, so that you can support more customers.



Up to thirty (30) HP FlexFabric switches can be added to the network and managed by one Controlling Bridge (CB) switch improving server connectivity. (future)



The FlexFabric 5700 Switch Series gives you choices that fit your budget and environment by offering 1/10GbE ports supporting SFP and BASE-T with 10/40GbE uplinks.



High-Performance Data Center Switching



The HP FlexFabric 5700 Switch Series delivers 960Gbps switching capacity for the most demanding applications.



Provides local switching and participates in the network unlike competing port multiplexers.



Low latency, under 1.5us 10GbE latency, provides improved throughput and fewer lost packets.



Business Agility and Resilience with Comware 7



The HP FlexFabric 5700 Switch Series delivers IRF <50msec convergence time enabling faster application response time.



The 5700 Switch Series supports spine/leaf IRF to enhance network agility with ECMP and faster convergence.



In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background.



Simplicity and Lower TCO



The HP FlexFabric 5700 Switch Series simplifies switch management by up to 88% with IRF.



No extra hidden costs with simple one license per switch for all OS features.



Up to 25% lower cost than competing port multiplexers for lower TCO.



Automate tedious tasks with software defined network (SDN) and reclaim wasted resources.
AC input frequency50/60 Hz
AC input voltage100-240 V
Colour of productBlack
Depth460 mm
Dimensions (WxDxH)439.9 x 460 x 43.7 mm
Flash memory512 MB
Flow control supportYes
Form factor1U
Height43.7 mm
I/O ports40 fixed 1000/10000 SFP+ ports; 2 QSFP+; Included
Input voltage100 - 240 VAC; -48 to -60 VDC (depending on power supply chosen)
Internal memory2048 MB
Latency10 Gb/s Latency: &lt; 1.5 µs
Latency (10 Gbps)1.5 µs
MAC address table128000 entries
Management platformIMC - Intelligent Management Center; command-line interface; out-of-band management; SNMP Manager; Telnet; FTP
Management protocolsSNMP, Telnet, FTP, NTP, SNTP
Noise level70.6 dB
Number of VLANs4096
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 to 90 %
Operating temperature (T-T)0 - 45 °C
Operating temperature range (T-T)0 - 45 °C
Packet buffer memory9 MB
Power consumption (typical)162 W
Power over Ethernet (PoE)No
Quality of Service (QoS) supportYes
Rack mountingYes
Redundant power supply (RPS) supportYes
Security algorithms802.1x RADIUS
Spanning tree protocolYes
StackableYes
Switch layerL3
Switch typeManaged
Switching capacity960 Gbit/s
Throughput714.2 Mpps
USB 2.0 ports quantity1
Weight10000 g
Width440 mm

Similar products

  • TP-LINK 8-port 10/100 Unmanaged PoE Switch
    TP-LINK 8-port 10/100 Unmanaged PoE Switch
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • TP-LINK TL-SG1008
    TP-LINK TL-SG1008
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS

Hewlett Packard Enterprise FlexFabric 5700-40XG-2QSFP+

FlexFabric 5700-40XG-2QSFP+ - 40 1000/10000 SFP+, 2 QSFP+, 512 MB flash, 2GB SDRAM, 714.2 Mpps, 960 Gbps, 10 kg

JG896A

Out of Stock

£9,713.66
£8,094.72 Ex VAT.
