- Complies with 802.3u 10/100Base-TX, 100Base-FX standards.
- Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port.
- Extends fiber distance up to 2km

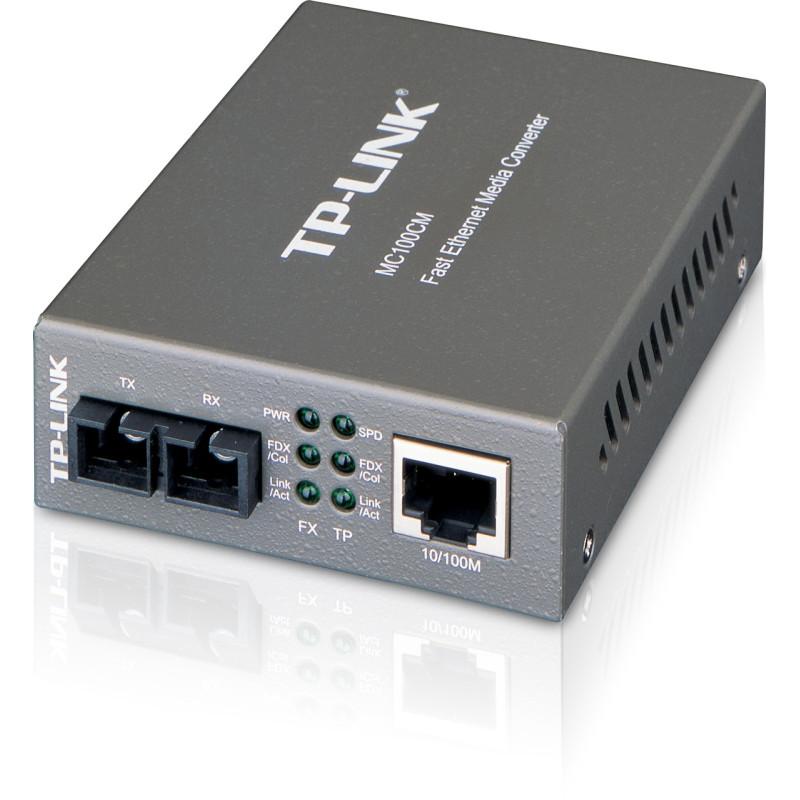

The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required)or with TP-LINK’s 19’’ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.
- Provides switch configuration of Half-Duplex / Full-Duplex transfer mode for FX port.
- Extends fiber distance up to 2km
The MC100CM is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC100CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required)or with TP-LINK’s 19’’ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 2 kilometers.
| Cabling technology | UTP 3, 4, 5e, 5 |
| Certification | FCC, CE |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
| Full duplex | Yes |
| I/O ports | 1x 100M SC 1x 100M RJ45 |
| LED indicators | PWR, FDX/Col, Link/Act, SPD |
| Maximum transfer distance | 2000 m |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating relative humidity range | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage relative humidity range | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature range (T-T) | -40 - 70 °C |
| Wavelength | 1310 nm |
