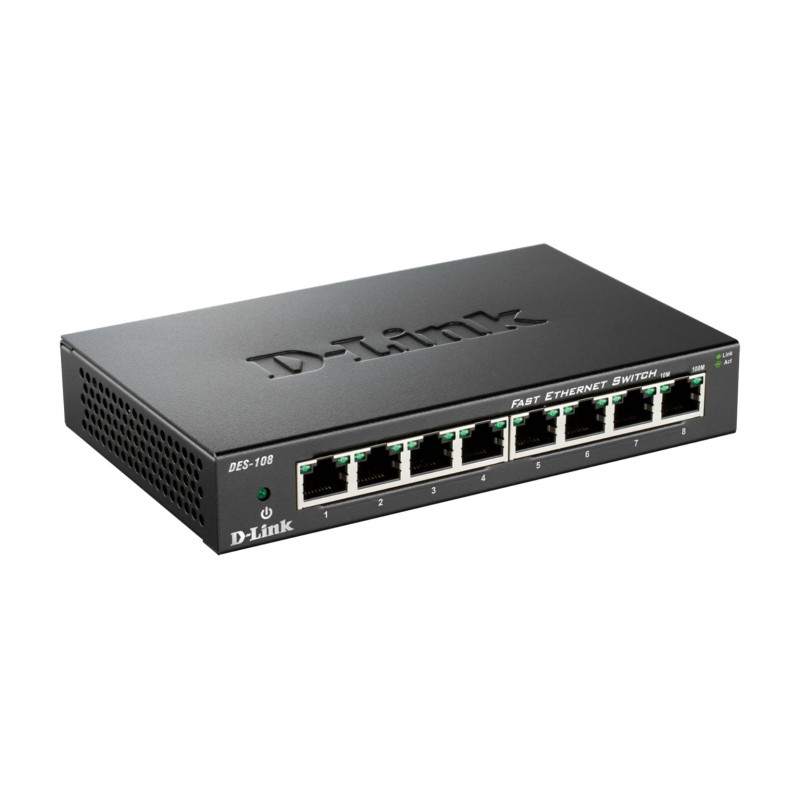

D-Link DES-108
  • D-Link DES-108
  • D-Link DES-108
  • D-Link DES-108
- Plug and Play operation

- 8 Fast Ethernet ports

- Non-blocking architecture: simultaneous full speed on all ports

- Fanless, silent operation to fit in any environment

- Quality of Service (QoS) queues for traffic prioritisation

- Solidly built with metal housing

- D-Link Green™ technology, saves energy and increases the product’s lifespan



D-Link’s DES-108 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 8 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DES-108 completely silent so it is ideal for offices, libraries or meeting rooms.



Robust design



The DES-108 is designed with durability and performance in mind. The sturdy metal housing will protect it against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.



QoS (Quality of Service)



Despite being an unmanaged, Plug and Play switch, the DES-108 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.



Power-saving technology



The DES-108 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implements the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.
10G supportNo
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity8
CertificationRoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Colour of productBlack
Copper ethernet cabling technology100BASE-TX,10BASE-T
Data transfer rate200 Mbit/s
DC-in jackYes
Dimensions (WxDxH)162 x 102 x 28 mm
Ethernet LAN (RJ-45) ports quantity8
Flow control supportYes
Full duplexYes
Housing materialMetal
Input current1 A
Input voltage5 V
LED indicatorsLink,Power
MAC address filteringYes
MAC address table1000 entries
ManagementUnmanaged
Maximum data transfer rate0.1 Gbit/s
Mean time between failures (MTBF)511323 h
MountingDesktop
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
Packet buffer memory0.768 MB
PoENo
Ports quantity8
Power consumption (typical)2.1 W
Quality of Service (QoS) supportYes
Rack mountingNo
RJ45 Ports Qty8
Source data-sheetIcecat.biz
StackableNo
Storage relative humidity (H-H)5 - 90 %
Storage relative humidity range5 - 90 %
Storage temperature (T-T)-10 - 70 °C
Storage temperature range (T-T)-10 - 70 °C
Store-and-forwardYes
Supported data transfer rates10/100 Mbps
Switch Speed10/100
Switching capacity1.6 Gbit/s
