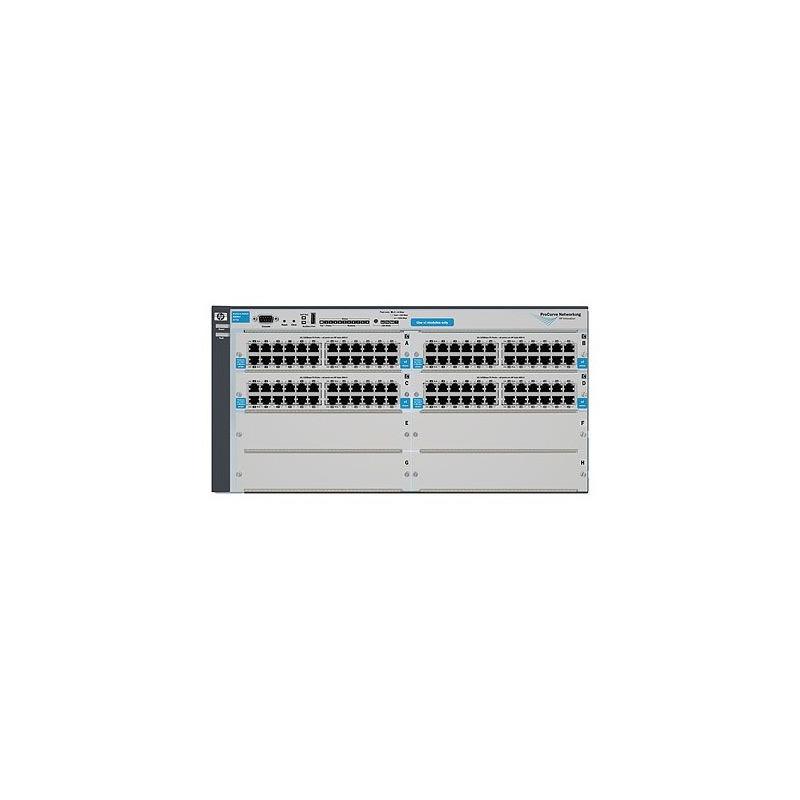

HP E4208-96 vl Switch
The ProCurve 4200vl Switch series consists of modular chassis that provide a flexible, cost-effective LAN solution as an alternative to stackables. These switches offer a proven chassis form factor with high quality and reliability in 10/100 and 10/100/1000 scalable solutions that integrate easily into any network.
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity96
Built-in processorPowerPC MPC8245
Connectivity technologyWired
Dimensions (WxDxH)388.6 x 442 x 222.3 mm
Electromagnetic compatibilityFCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; CISPR 22 Class A; EN 55024; IEC/EN 61000-3-2; IEC/EN 61000-3-3
Electromagnetic emissionsFCC Class A; VCCI Class A; EN55022/CISPR-22 Class A; CISPR22 Class A; EN55024; IEC/EN61000-3-2; IEC/EN61000-3-3
Flash memory24 MB
Flow control supportYes
Form factor5U height
Full duplexYes
Heat dissipation2152 BTU/h
I/O ports4 open module slots; 96 auto-sensing 10/100 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX), Media Type: Auto-MDIX, Duplex: half or full; Supports a maximum of 192 auto-sensing 10/100 ports or 96 auto-sensing 10/100/1000 ports or 16 mini-GBIC
Input current8.2 / 3.8 A A
Input frequency50 / 60 Hz
Input voltage100-127 / 200-240 VAC V
Internal memory64 MB
LatencyLatency: < 6 µs (FIFO)
Management platformHP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band management (DB-9 serial port console); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB
Maximum data transfer rate0.1 Gbit/s
Memory typeSDRAM
MIB supportRepeater MIB; Ethernet Interface MIB; IEEE 802.3 Ethernet MIB
MountingMounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only.
Networking standardsEN: EN55024, IEC61000-3-2; Flicker: EN61000-3-3, IEC61000-3-3
Operating altitude4600 m
Operating relative humidity range15 to 95 @ 104°F
Operating temperature (T-T)32 - 104 °F
Operating temperature range (T-T)0 - 40 °C
Packet buffer memory36 MB
Power availability8.2/3.8 A
Power consumption (typical)630 W
Power over Ethernet (PoE)No
Power requirements100-127 VAC/200-240 VAC; 50/60 Hz
Power supply type1 x J4839A
Rack mountingYes
SafetyCSA 22.2 No. 950; UL 60950; EN 60950
Source data-sheetIcecat.biz
Spanning tree protocolYes
StackableYes
Storage relative humidity range15 to 95 @ 149°F
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Supported network protocolsRFC 783 TFTP; RFC 1542 BootP; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 SNTP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; DHCP Relay; RFC 3046 DHCP Relay Agent Information Option 82; RFC 3376 IGMPv1/v2/v3; IEEE 802
Supported protocolsGeneral protocols\nHTML and telnet management\nIEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 1757 RMON 4 groups: Stats, History, Alarms and Events; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3164 BSD
Switch typeManaged
Switching capacity76.8 Gbit/s
Throughputup to 48 million pps Mpps
Weight14650 g

Similar products

  • TP-LINK 8-port 10/100 Unmanaged PoE Switch
    TP-LINK 8-port 10/100 Unmanaged PoE Switch
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • TP-LINK TL-SG1008
    TP-LINK TL-SG1008
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS

Hewlett Packard Enterprise E4208-96 vl Switch

ProCurve 4208vl 96 1x RS-232C DB-9, 96x 10/100

J8775B

Out of Stock

£3,843.85
£3,203.21 Ex VAT.
