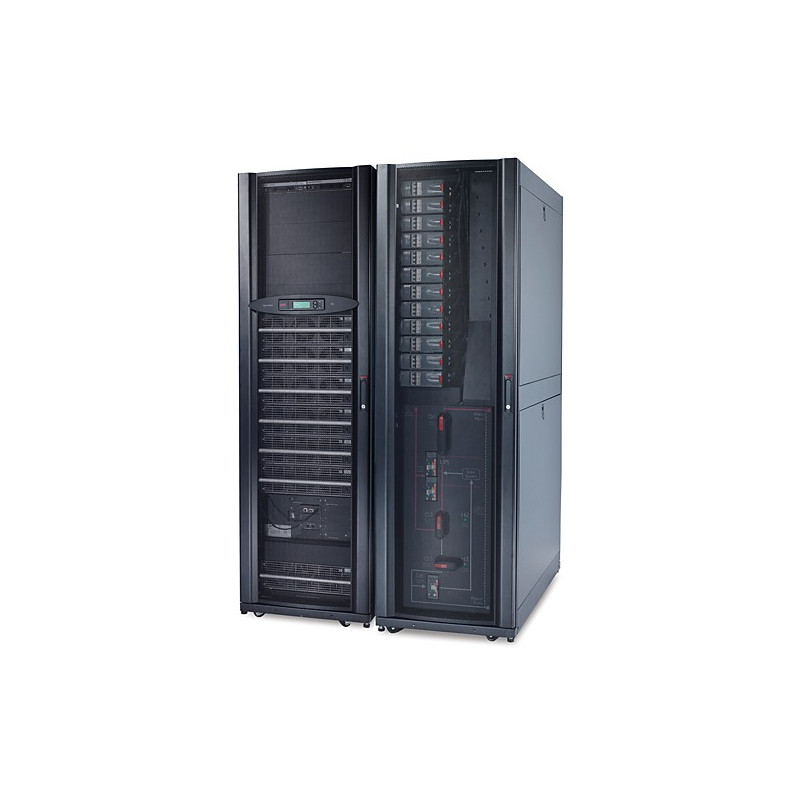

Modular, high-efficiency 3-phase UPS that is scalable as your data center grows up to 160kW/160kVA. Suitable for small, medium & large data center applications.
Includes: Network Management Card, Start-Up Service, User Manual
Includes: Network Management Card, Start-Up Service, User Manual
| Battery type | VRLA |
| Certification | CE,EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111 |
| Colour of product | Black |
| Dimensions (WxDxH) | 1200 x 1070 x 1991 mm |
| Interface | 2x SmartSlot |
| Nominal input voltage | 400, 340 - 477 V |
| Nominal output voltage | 230 - 400 V |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 999.9 m |
| Operating relative humidity range | 0 - 95 % |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output connections | 1x Hard Wire 5-wire (3PH + N + G) |
| Output power | 96000 W |
| Output power capacity (VA) | 96000 VA |
| Output voltage note | 380, 400/415 |
| Package dimensions (WxDxH) | 1696 x 1210 x 2140 mm |
| Package weight | 1889000 g |
| Power supply input frequency | 40 - 70 Hz |
| Rack mounting | 42u |
| Source data-sheet | Icecat.biz |
| Storage relative humidity range | 0 - 95 % |
| Storage temperature range (T-T) | -15 - 40 °C |
| Weight | 1748000 g |
