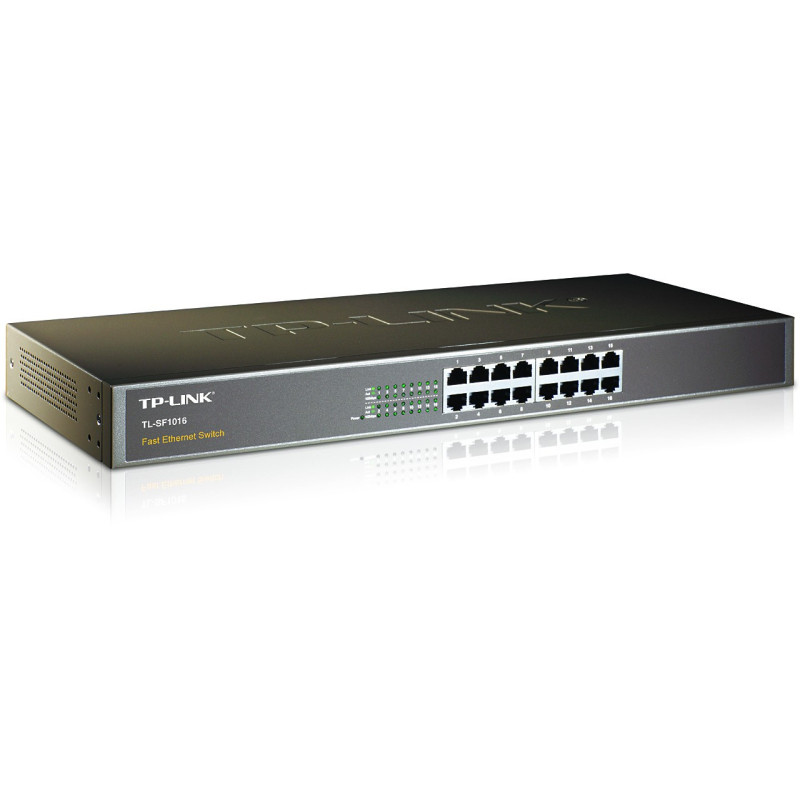

TP-LINK TL-SF1016 16-Port 10/100Mbps Fast Ethernet Switch
  • TP-LINK TL-SF1016 16-Port 10/100Mbps Fast Ethernet Switch
  • TP-LINK TL-SF1016 16-Port 10/100Mbps Fast Ethernet Switch
What This Product Does

The 16-Port Fast Ethernet Switch TL-SF1016 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SF1016 provides 16 10/100Mbps ports. The TL-SF1016 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.



Ease of Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.



Superior Performance

The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016 forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly.
Basic switching RJ-45 Ethernet ports quantity16
Colour of productBlack
Connectivity LEDsYes
Connectivity technologyWired
DHCP clientYes
Dimensions (WxDxH)294 x 180 x 44 mm
Ethernet LAN (RJ-45) ports quantity16
Flow control supportYes
Full duplexYes
Input frequency50/60 Hz
Installed ports16
LED indicatorsYes
MAC address filteringYes
ManagementUnmanaged
Maximum data transfer rate3.2 Gbit/s
MountingRackmount
Non-operating relative humidity (non-condensing)5 - 90 %
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
PoENo
Ports quantity16
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Power requirementsAC 100 - 240 V
Rack mountingYes
RJ45 Ports Qty16
SafetyFCC, CE
Source data-sheetIcecat.biz
Spanning tree protocolYes
StackableNo
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Store-and-forwardYes
Supported data transfer rates100/10
Switch Speed10/100
Switch typeUnmanaged
