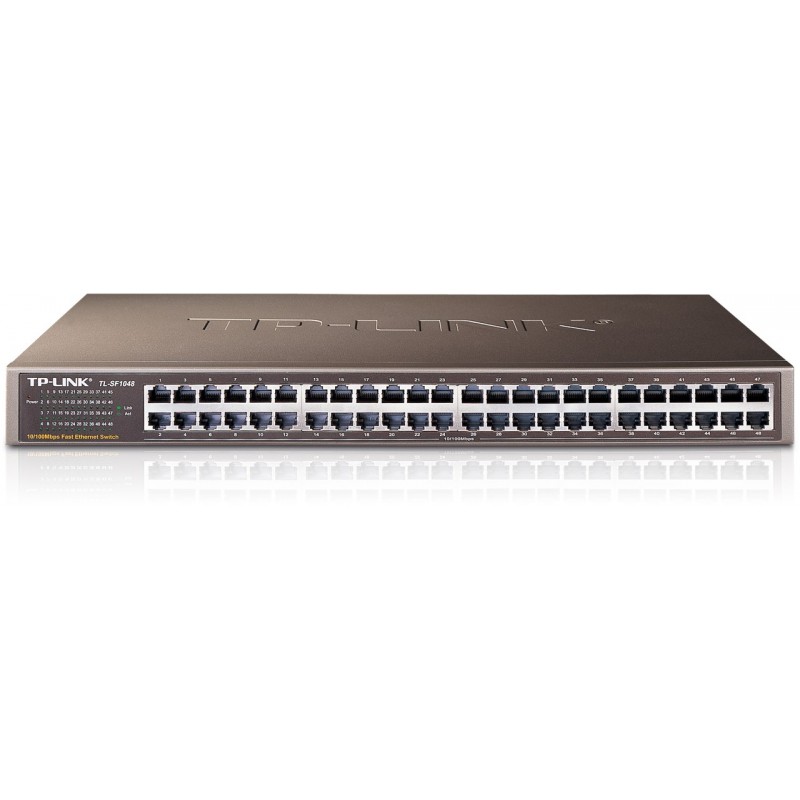

TP-LINK TL-SF1048 48-Port 10/100Mbps Rackmount Switch
  • TP-LINK TL-SF1048 48-Port 10/100Mbps Rackmount Switch
Images are for illustrative purposes only.
  • More info

  • Details

  • Spec Sheet

The TL-SF1048 Ethernet Switch provides 48 10/100M Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. Every port can works as uplink port or common port. TL-SF1048 Ethernet Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into 100M solution. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience.
Bandwidth9.6 Gbit/s
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Colour of productGrey
CompatibilityFCC, CE
Connectivity LEDsYes
Copper ethernet cabling technology100BASE-TX,10BASE-T
Dimensions (W x D x H)439.4 x 259.1 x 43.2 mm (17.3 x 10.2 x 1.7 ")
Dimensions (WxDxH)440 x 260 x 44 mm
Ethernet LAN (RJ-45) ports quantity48
MAC address table8000 entries
ManagementUnmanaged
Maximum data transfer rate0.1 Gbit/s
MountingRackmount
Networking standardsIEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)32 - 104 °F
Operating temperature range (T-T)0 - 40 °C
PoENo
Ports quantity48
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Rack mountingYes
RJ45 Ports Qty48
Size19 "
Source data-sheetIcecat.biz
StackableNo
Storage relative humidity (H-H)5 - 90 %
Storage relative humidity range5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Store-and-forwardYes
Supported data transfer rates10/100 Mbps
Supported network protocolsCSMA/CD, TCP/IP
Switch Speed10/100
Switch typeUnmanaged
Switching capacity9.6 Gbit/s
EAN6935364020286
ManufacturerTP-LINK
