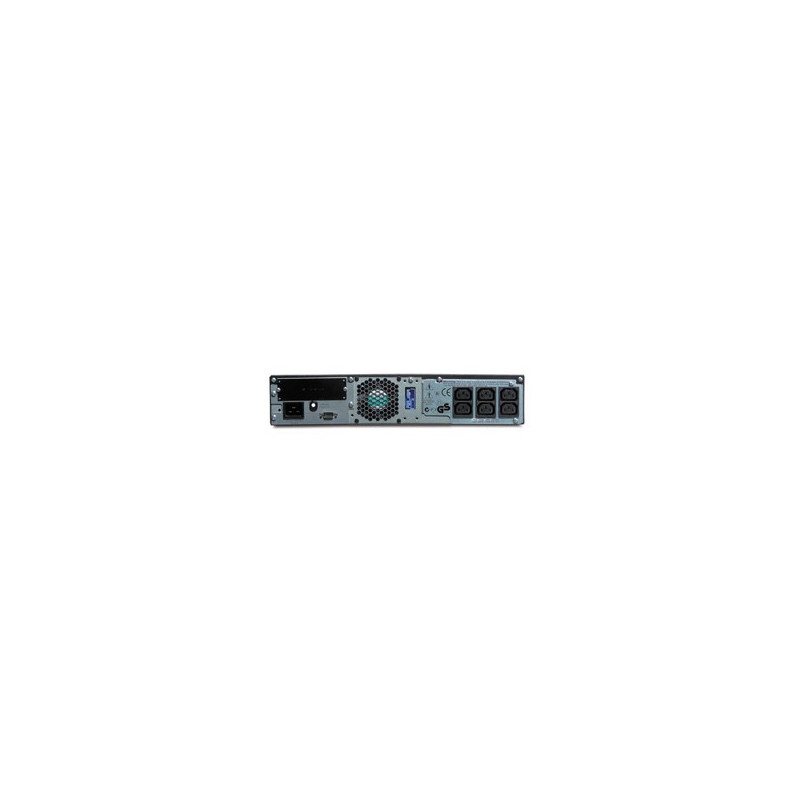

APC Smart-UPS RT 1000VA RM 230V

Please Note, this product is not for consumer use in the European Union.

A versatile UPS developed for the harshest power conditions in the world.

APC Smart-UPS RT is a family of high-density, performance UPSs for voice and data networks, medical labs, and light industrial applications. Capable of supporting 10kVA in a 6U rack/tower convertible form, users can support power hungry blade servers or heavily loaded equipment racks. This flexible form factor allows standardization across multiple applications. High power internal chargers allow virtually unlimited additional matching battery packs to comply with aggressive runtime demands of business-critical systems. Customers with harsh power environments looking for extremely tight voltage and frequency regulation, internal bypass, and input power factor correction typical of double conversion online topology will get them in the Smart-UPS RT.
AC outlet typesC13 coupler
AC outlets quantity6 AC outlet(s)
Battery capacity328 VAh
Battery replacement alarmsLED
Battery technologySealed Lead Acid (VRLA)
Cables includedRS-232
CertificationC-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE, PEP, EOLI
Colour of productBlack
Crest factor3:1
Depth483 mm
Dimensions (WxDxH)430 x 480 x 90 mm
Efficiency89.1 %
Form factorRackmount/Tower
Height85 mm
Hot-swap batteryYes
I/O portsDB-9 RS-232, SmartSlot
Input connection typeIEC-320 C14
Input operation voltage (max)280 V
Input operation voltage (min)100 V
LED indicatorsYes
Noise level50 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections(6) IEC 320 C13 (2) IEC Jumpers
Output operation voltage (max)240 V
Output operation voltage (min)220 V
Output power700 W
Output power capacity (VA)1000 VA
Output voltage note100 - 280 V
Package height286 mm
Package weight27800 g
Package width630 mm
Power supply input frequency50/60 Hz
Quantity per pallet4 pc(s)
Rack capacity2U
Replacement battery cartridgeRBC31
RoHS complianceYes
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-20 - 50 °C
Storage temperature range (T-T)-20 - 45 °C
Surge energy rating420 J
Typical backup time at full load13.8 min
Typical backup time at half load32 min
Weight23000 g
Width432 mm
