Please Note, this product is not for consumer use in the European Union.

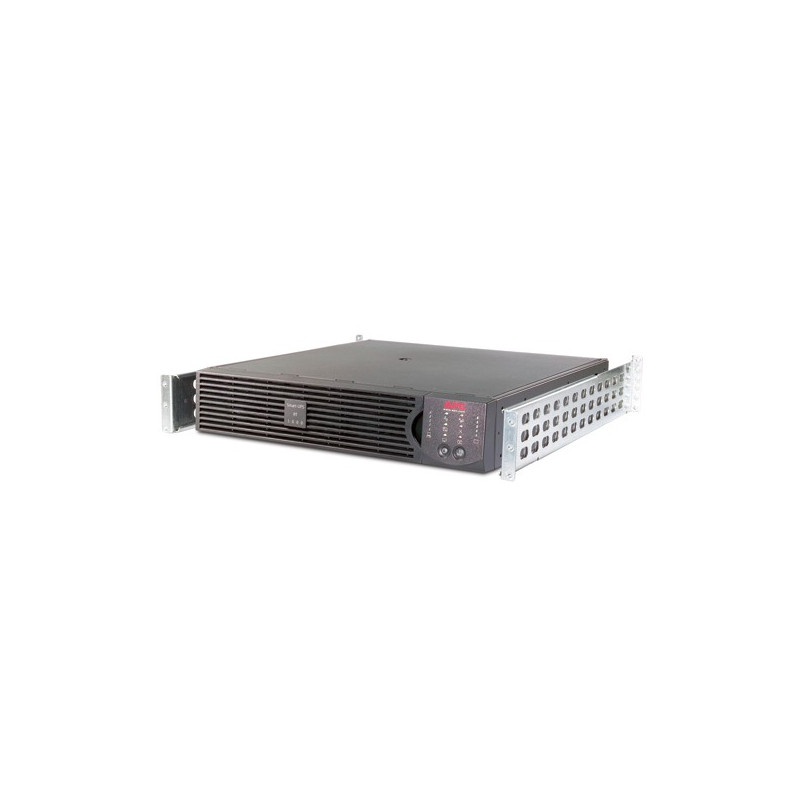

APC Smart-UPS On-Line, 700 Watts / 1000 VA, Input 230V / Output 230V , Interface Port DB-9 RS-232, SmartSlot , Extended runtime model , Rack Height 2 U| AC outlet types | C13 coupler |
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cable length | 2.5 m |
| Certification | CE, DNV, EN 50091-1, EN 50091-2, EN 55022 Cl. A, EN 60950, EN 61000-3-2. |
| Colour of product | Black |
| Crest factor | 3:1 |
| Depth | 483 mm |
| Dimensions (WxDxH) | 85 x 483 x 432 mm |
| Efficiency | 88 % |
| Height | 990mm |
| Input operation voltage (max) | 600 V |
| Noise level | 97.4 dB |
| Nominal input voltage | 83 - 159 VAC |
| Nominal output voltage | 400V |
| Non-operating altitude | 9144 m |
| Operating altitude | 914.4 - 2133 m |
| Operating relative humidity range | 0 - 95 % |
| Operating temperature range (T-T) | 0 - 55 °C |
| Output operation voltage (min) | 97 V |
| Output power capacity (VA) | 1000 VA |
| Output voltage THD | 3 % |
| Package dimensions (WxDxH) | 630 x 594 x 286 mm |
| Package weight | 27.8 kg |
| Power supply input frequency | 50/60 Hz |
| Source data-sheet | Icecat.biz |
| Storage relative humidity range | 0 - 95 % |
| Storage temperature range (T-T) | -20 - 50 °C |
| Surge energy rating | 420 J |
| Weight | 23 kg |
| Width | 993 mm |
