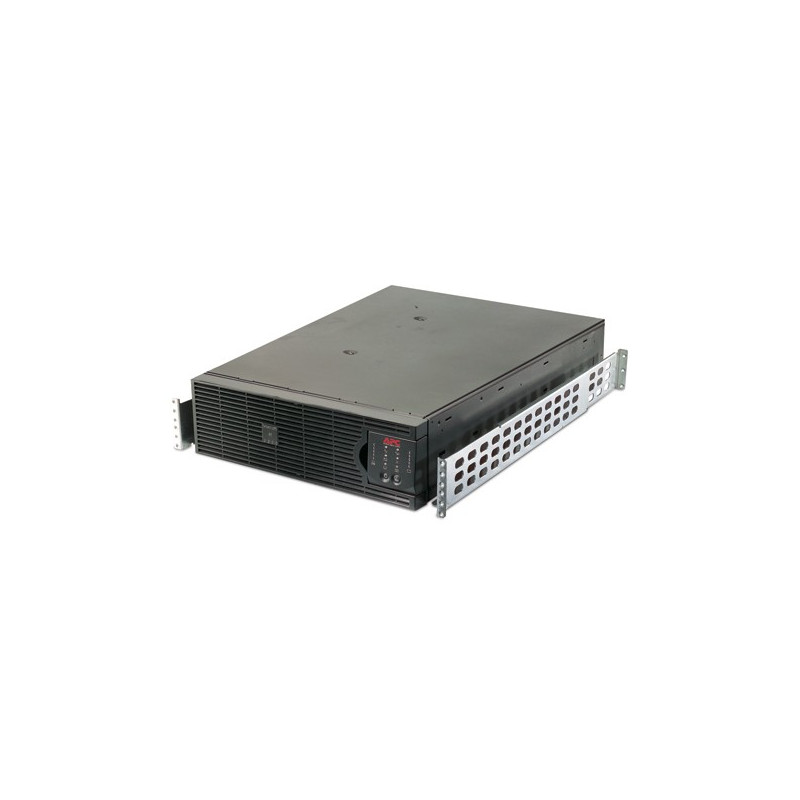

APC Smart-UPS RT 2200VA
  • APC Smart-UPS RT 2200VA
  • APC Smart-UPS RT 2200VA
  • APC Smart-UPS RT 2200VA
  • APC Smart-UPS RT 2200VA
Images are for illustrative purposes only.
  • More info

  • Details

APC Smart-UPS On-Line, 1540 Watts / 2200 VA, Input 230V / Output 230V , Interface Port RJ-45 Serial, Smart-Slot , Extended runtime model , Rack Height 3 U



Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Smart UPS signalling RS-232 cable, User Manual



Standard Lead Time: Usually in Stock
AC outlet typesC13 coupler, C19 coupler
Battery recharge time2.5 h
Battery technologySealed Lead Acid (VRLA)
Cable length2.5 m
CertificationCE, DNV, EN 50091-1, EN 50091-2, EN 55022 Cl. A, EN 60950, EN 61000-3-2.
Colour of productBlack
Crest factor3:1
Dimensions (WxDxH)130 x 660 x 432 mm
Efficiency92 %
Ethernet LAN (RJ-45) ports quantity1
Form factorRackmount
Height432 mm
Input operation voltage (max)280 V
Noise level55 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity range0 - 95 %
Operating temperature range (T-T)0 - 55 °C
Output operation voltage (min)220 V
Output power1540 W
Output power capacity (VA)2200 VA
Output voltage THD3 %
Package dimensions (WxDxH)603 x 980 x 347 mm
Package weight63640 g
Power supply input frequency50/60 Hz
Rack mounting3U
Source data-sheetIcecat.biz
Storage relative humidity range0 - 95 %
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating480 J
Weight54550 g
Width130 mm
EAN0731304286929
ManufacturerAPC
