Fast. Stable. Everywhere.

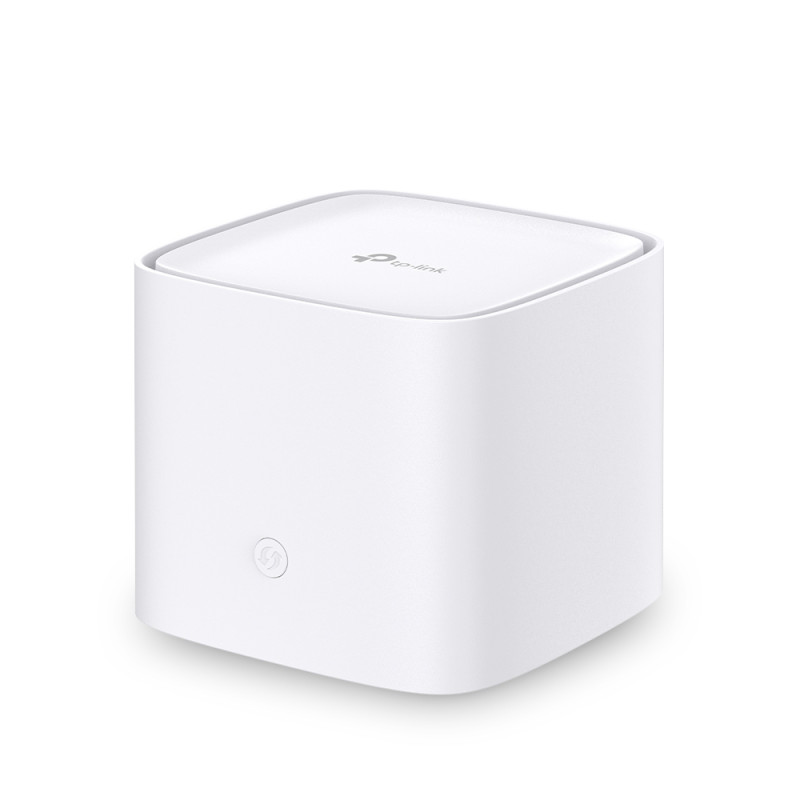

AC1200 Whole Home Mesh WiFi System

Whole Home Coverage
Empowered by EasyMesh technology, HC220-G5 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HC220-G5 whenever you want.

Seamless Roaming with One Wi-Fi Name
All units work together to form one unified network. Your mobile device will automatically connect to the fastest unit when you move through your home, creating a truly seamless WiFi experience.

2-in-1 Router and Access Point Modes
Flexible and multifunctional, HC220-G5 includes a variety of features to serve as a router or access point. Choose the mode for actual network demands and experience maximum wireless flexibility.

Robust Network Protection

WPA3 Security
Higher password safety and enhanced protection against brute-force attacks

Multi-SSID
Create guest networks for visitors and keep your main network secure

Parental Controls
Block inappropriate content and restrict time spent online

Easy to Set Up and Use
You can set up your device in minutes, whether you prefer the intuitive Aginet app or the powerful web interface. The Aginet app allows you to manage network settings from your smart phone or tablet.

Support TR-069 Remote Management
ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.

Aginet Solution:
End-to-End Management System for ISPs

Aginet Solutions offer ISPs powerful and flexible platforms to manage multiple devices for connected home, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.
AC adapter includedY
AC input voltage12 V
Antenna typeinternal
Built-in processorY
CertificationCE, FCC
DC-in jackY
Depth100 mm
DHCP clientY
DHCP serverY
Ethernet LAN (RJ-45) ports3
Firewall securitySPI
Height89.5 mm
LED indicatorsYes
NAT functionalityIPTV, IGMPV2/3 and IGMP Snooping
Networking standardsIEEE 802.11k,IEEE 802.11r,IEEE 802.11v
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Quality of Service (QoS) supportY
Reset buttonY
Security algorithmsSSID,WMM,WPA,WPA-PSK,WPA2-Enterprise,WPA2-PSK,WPA3
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 60 °C
Transmit power30 dBmW
Wi-Fi standards802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Width100 mm
Ethernet WANY
WLAN data transfer rate (max)1200 Mbit/s
WLAN data transfer rate (first band)300 Mbit/s
WLAN data transfer rate (second band)867 Mbit/s
Transmitting power (CE)20 dBm
Transmitting power (FCC)30 dBm
BeamFormingY
MU-MIMO technologyY
Supported network protocols (IPv6)IPv4 IPv6
Mobile network generationNot supported
Number of units included1 pc(s)
Compliance certificatesCE,Federal Communications Commission (FCC)
SSID BroadcastY
Apps supportedTP-Link Tether

hc220-g51-pack.pdf

TP-Link AC1200 Whole Home Mesh WiFi System Data Sheet

Download (735.39k)
