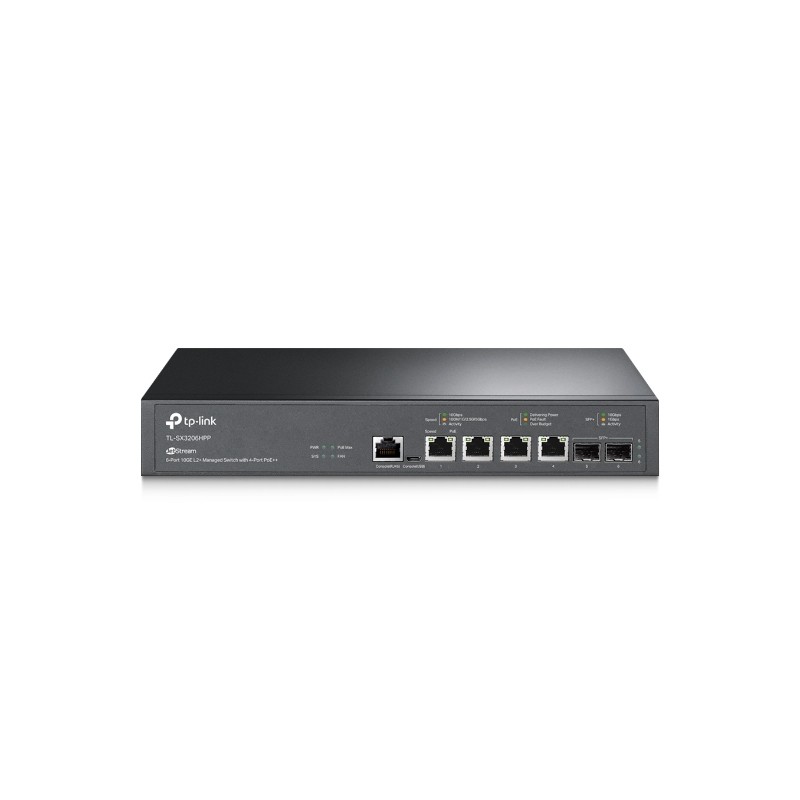

TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
Lightning-Fast Connection with Full 10GE Ports Build and expand your lightning-fast network with TP-Link TL-SX3206HPP—a fully managed switch with full 10GE RJ45 and fiber ports and 120 Gbps switching capacity. The four 10GE RJ45 ports with auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. Two 10GE SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches can be easily constructed.Empowering the Real WiFi 6 and WiFi 6E with 10G PoE++ Ports Four 10GE RJ45 ports offer 802.3bt PoE++ to provide up to 200 W PoE power budget in total and 60 W for every port. It unlocks the full bandwidth potential of WiFi 6 and WiFi 6E access points and high power PoE devices.† PoE (802.3af), PoE+ (802.3at), and PoE++ (802.3bt) are supported, so you don't need to install new electrical circuits to power your devices.Seamless Integration to Omada Cloud SDN Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.Advanced L3 Features An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campus, and ISPs.
10G supportYes
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Cables includedAC
CertificationCE, FCC, RoHS
Depth180 mm
Flow control supportY
Heat dissipation835.67 BTU/h
Height44 mm
LED indicatorsY
MAC address table32000 entries
Management protocolsSNMP v1/v2c/v3
MIB supportYes
Minimum system requirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x
Number of static routes48
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 50 °C
Power over Ethernet (PoE)Yes
Power sourceAC
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingYes
Spanning tree protocolY
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2+
Switch typeManaged
Switching capacity120 Gbit/s
Web-based managementY
Width294 mm
Cloud-managedY
Harmonized System (HS) code85176990

tl-sx3206hpp.pdf

TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ Data Sheet

Download (1.08M)

TP-Link JetStream 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

4x 100/1000/2500/5000/10000 Mbps, 2x 10G SFP+, 1x RJ45, 1x Micro-USB, 120 Gbps, 32 K MAC, 98 KB Jumbo, 29x180x44 mm

tl-sx3206hpp

Out of Stock

£536.83
£447.36 Ex VAT.

Require project pricing? - request a quoteNeed a trade account? - send us your details Are you a public sector organistion? - open a credit account
