TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Depth | 180 mm |
| Firmware upgradeable | Y |
| Flow control support | Y |
| Form factor | 1U |
| Heat dissipation | 23.33 BTU/h |
| Height | 44 mm |
| LED indicators | Y |
| MAC address filtering | Y |
| MAC address table | 8000 entries |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Manual | Y |
| MIB support | Yes |
| Minimum system requirements | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux. |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 4.1 MB |
| Power over Ethernet (PoE) | No |
| Power source | AC |
| Quality of Service (QoS) support | Y |
| Quick start guide | Y |
| Rack mounting | Yes |
| Spanning tree protocol | Y |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Y |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 20 Gbit/s |
| User guide | Y |
| Web-based management | Y |
| Width | 294 mm |
| Fanless | Y |
| Cloud-managed | Y |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
sg3210.pdf

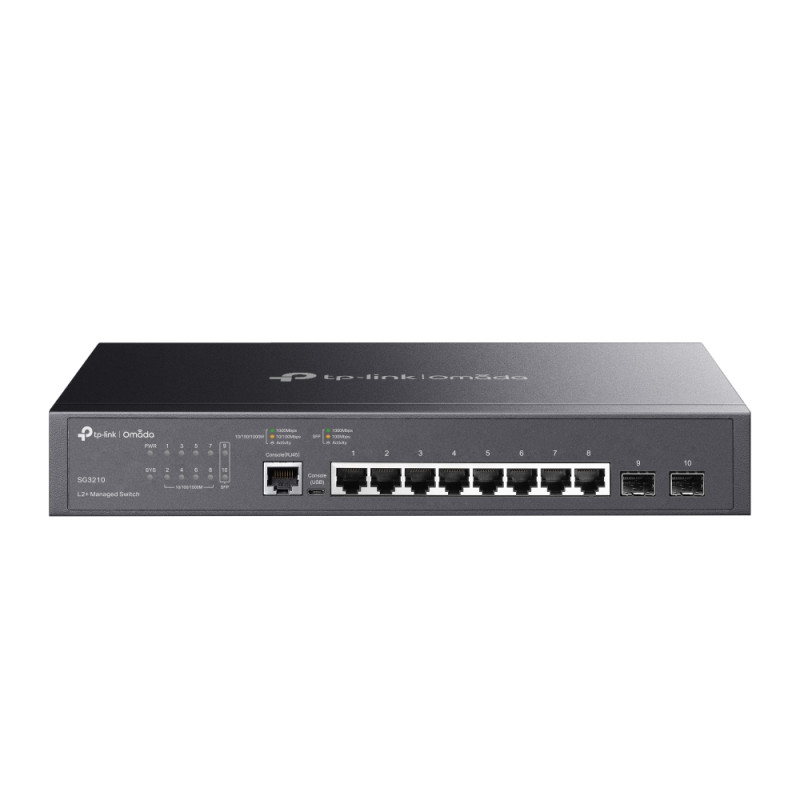

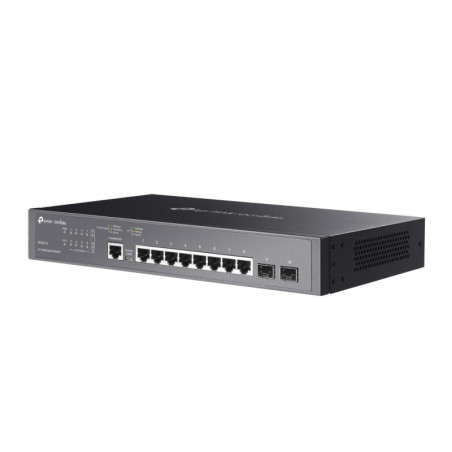

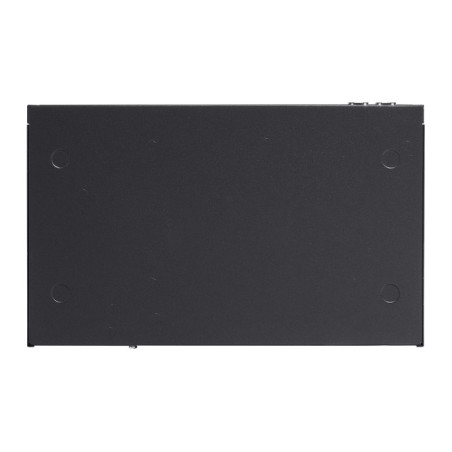

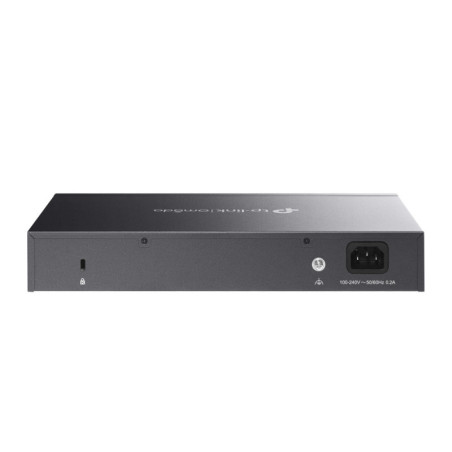

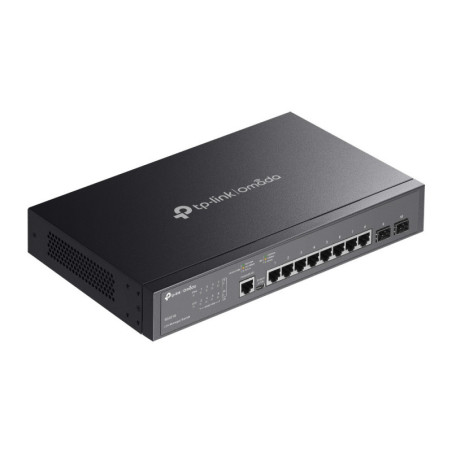

TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots Data Sheet
Download (3.48M)TP-Link Omada 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots
8× 10/100/1000 Mbps RJ45, 2× 100/1000 Mbps SFP, RJ45/Micro-USB, 20 Gbps, 8K MAC, 9KB Jumbo, 294×180×44 mm
sg3210
Out of Stock
£111.43
£92.86 Ex VAT.
