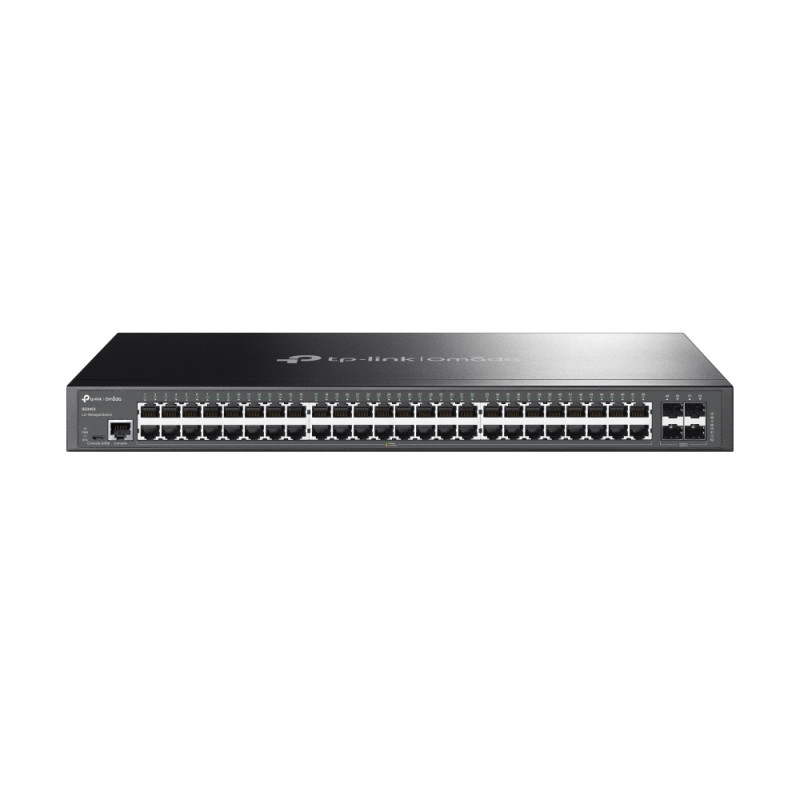

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
  • TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
  • TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G support No
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Cables included AC
Certification CE, FCC, RoHS
Depth 220 mm
Ethernet LAN data rates 10,100,1000 Mbit/s
Flash memory 32 MB
Flow control support Y
Form factor 1U
Gigabit Ethernet (copper) ports quantity 48
Heat dissipation 118.94 BTU/h
Height 44 mm
Internal memory 256 MB
MAC address filtering Y
MAC address table 16000 entries
Management protocols SNMPv1/v2c/v3, SNTP
MIB support Yes
Networking standards IEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z
Number of VLANs 4000
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 40 °C
Power over Ethernet (PoE) No
Power source AC
Quality of Service (QoS) support Y
Quick start guide Y
Rack mounting Yes
Spanning tree protocol Y
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Y
Switch layer L2+
Switch type Managed
Switching capacity 104 Gbit/s
Web-based management Y
Width 440 mm
Fanless Y
Cloud-managed Y
IPv4 routes 48
IPv6 routes 48

Specific References

EAN13
6935364010751

Download

sg3452.pdf

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots Data Sheet

Download (3.48MB)

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 SFP Slots

48× 10/100/1000 Mbps RJ45, 4× Gigabit SFP Slots, RJ45 / Micro-USB Console Ports, 104 Gbps, 77.38 Mpps, MAC 16K, 440×220×44 mm
Out of Stock
£330.61
Tax included
Reference: sg3452
Quantity
Require Project Pricing? Looking to set up a Trade Account? Public Sector Credit Accounts
