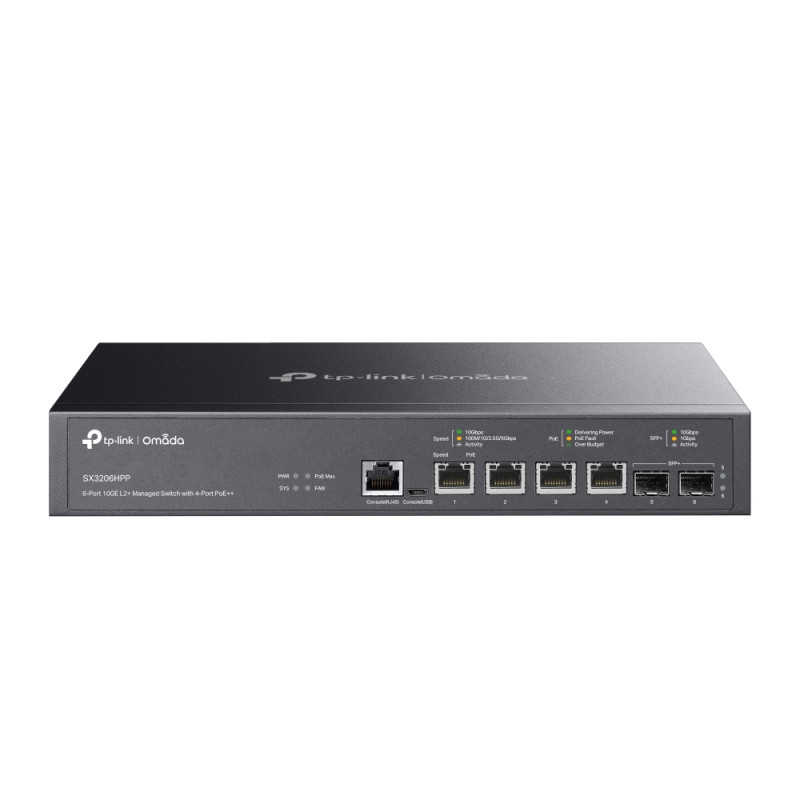

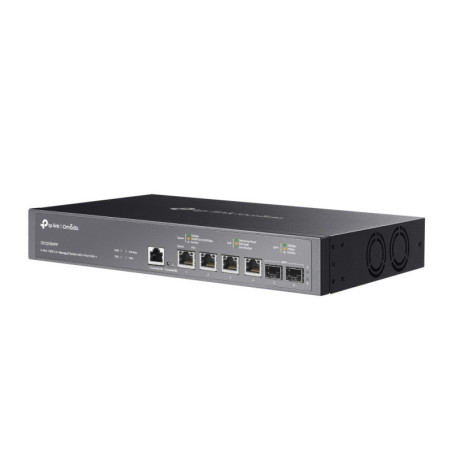

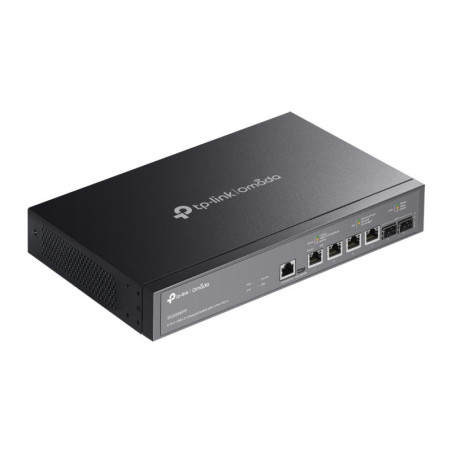

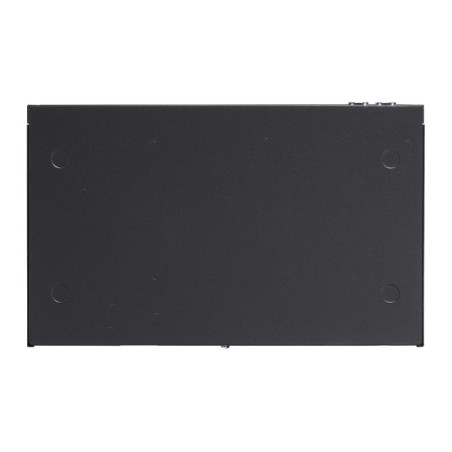

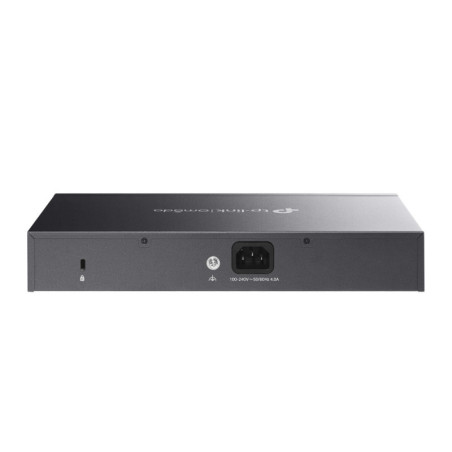

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
  • TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Cables includedAC
CertificationCE, FCC, RoHS
Depth180 mm
Flow control supportY
Heat dissipation835.67 BTU/h
Height44 mm
LED indicatorsY
MAC address table32000 entries
Management protocolsSNMP v1/v2c/v3
MIB supportYes
Minimum system requirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x
Number of static routes48
Number of VLANs4000
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 50 °C
Packet buffer memory16 MB
Power over Ethernet (PoE)Yes
Power sourceAC
Quality of Service (QoS) supportY
Quick start guideY
Rack mountingYes
Security algorithmsHTTPS,SSL/TLS
Spanning tree protocolY
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL2+
Switch typeManaged
Switching capacity120 Gbit/s
Web-based managementY
Width294 mm
Cloud-managedY

sx3206hpp.pdf

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++ Data Sheet

Download (13.02M)

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++

4× 100/1000/2500/5000/10000 Mbps RJ45, 2× 10G SFP+ Slots, RJ45/Micro-USB, 120 Gbps, 32 K MAC, 9 KB Jumbo, 294×180×44 mm

sx3206hpp

Out of Stock

£587.75
£489.79 Ex VAT.
