SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Resettable circuit breakers
Enables a quick recovery from overload events.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms
Provides notification of changing utility power and UPS conditions.
Serial Connectivity
Provides management of the UPS via a serial port.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Network manageable
Provides remote management of the UPS over the network.
Adjustable voltage sensitivity
Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.
LED status indicators
Quickly understand unit and power status with visual indicators.
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Resettable circuit breakers
Enables a quick recovery from overload events.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Audible alarms
Provides notification of changing utility power and UPS conditions.
Serial Connectivity
Provides management of the UPS via a serial port.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Network manageable
Provides remote management of the UPS over the network.
Adjustable voltage sensitivity
Provides the ability to adapt the Power Conditioner for optimal performance in specific power environments or generator applications.
LED status indicators
Quickly understand unit and power status with visual indicators.
| Battery recharge time | 3 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cable length | 2.44 m |
| Certification | CSA,FCC Part 15 Class A,UL 1778, RoHS 7b |
| Colour of product | Black |
| Dimensions (WxDxH) | 483 x 660 x 222 mm |
| Hot-swap battery | Yes |
| Input connection type | NEMA L6-30P |
| Interface | DB-9 RS-232, SmartSlot |
| LED indicators | Yes |
| Noise level | 53.00 dB |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output connections | 2x NEMA L6-20R 2x NEMA L6-30R |
| Output power | 4000 W |
| Output power capacity (VA) | 5000 VA |
| Power supply input frequency | 50/60 Hz |
| Source data-sheet | Icecat.biz |
| Storage temperature range (T-T) | -15 - 45 °C |
| Typical backup time at full load | 9.4 min |
| Typical backup time at half load | 26.7 min |
| Weight | 97.73 kg |

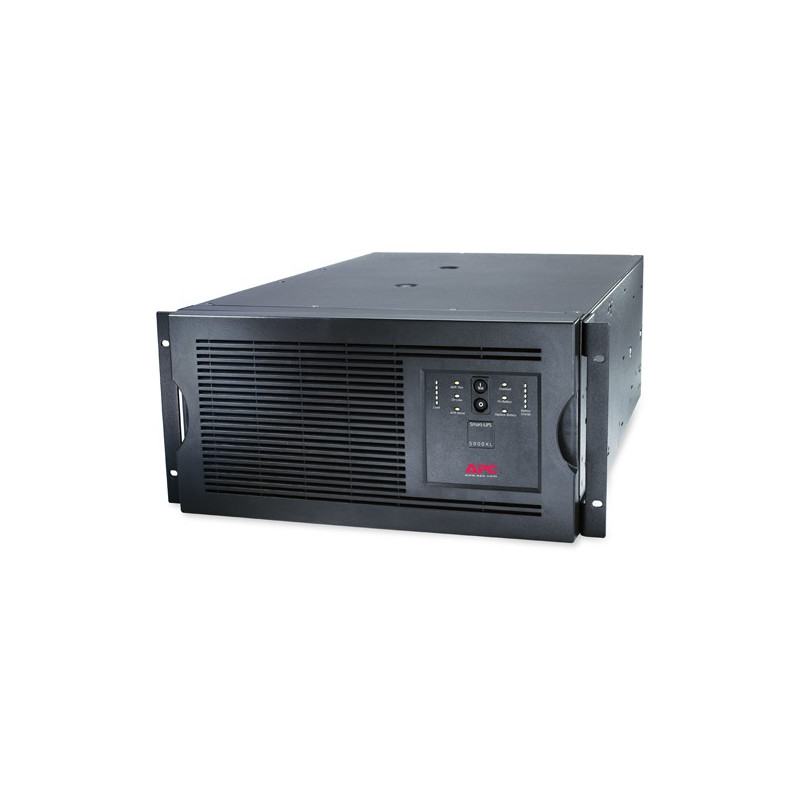

APC Smart-UPS 5000VA
Smart-UPS, 4000 Watts / 5000 VA,Input 208V / Output 208V, Interface Port DB-9 RS-232, SmartSlot, Rack Height 5U
£4,521.57
£3,767.98 Ex. VAT
