Parallel-capacity capable
Increases total power capacity by using multiple UPSs simultaneously.
Parallel-redundant capable
Power the connected equipment with multiple UPSs to increase system redundancy
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
Scalable runtime
Allows additional run time to be quickly added as needed.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Increases total power capacity by using multiple UPSs simultaneously.
Parallel-redundant capable
Power the connected equipment with multiple UPSs to increase system redundancy
Dual mains input
Increases availability by allowing the UPS to be connected to two separate power sources.
Scalable runtime
Allows additional run time to be quickly added as needed.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
| AC outlets quantity | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery type | VRLA |
| Certification | cUL, ISO 14001, ISO 9001, UL 1778 |
| Colour of product | Black |
| Depth | 813 mm |
| Efficiency | 94 % |
| Form factor | Tower |
| Height | 1499 mm |
| Input connection type | 3PH + N + G |
| Interface | DB-9 RS-232, SmartSlot |
| Noise level | 55 dB |
| Nominal output voltage | 120-208 V |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 999.9 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output connections | 1x 3PH + N + G |
| Output power | 16000 W |
| Output power capacity (VA) | 20000 VA |
| Output voltage THD | 5 % |
| Package dimensions (WxDxH) | 650 x 1062 x 1643 mm |
| Package weight | 475910 g |
| Storage relative humidity (H-H) | 0 - 95 % |
| Weight | 445000 g |

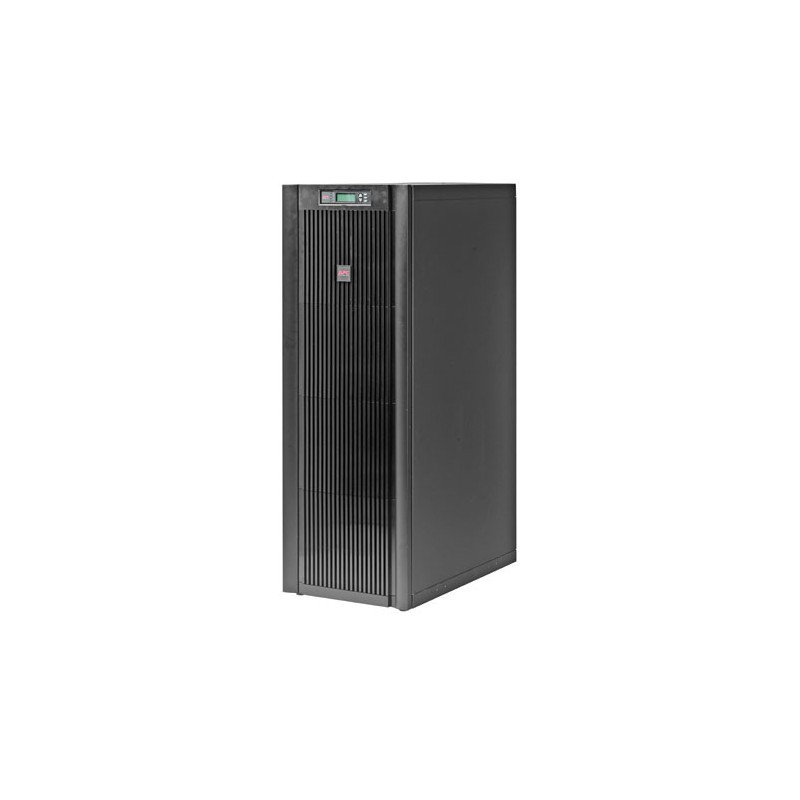

APC Smart-UPS VT 20kVA
Smart-UPS VT 20kVA, 208V, w/2 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable
£10,718.14
£8,931.78 Ex. VAT
