Images are for illustrative purposes only.
  • More info

  • Details

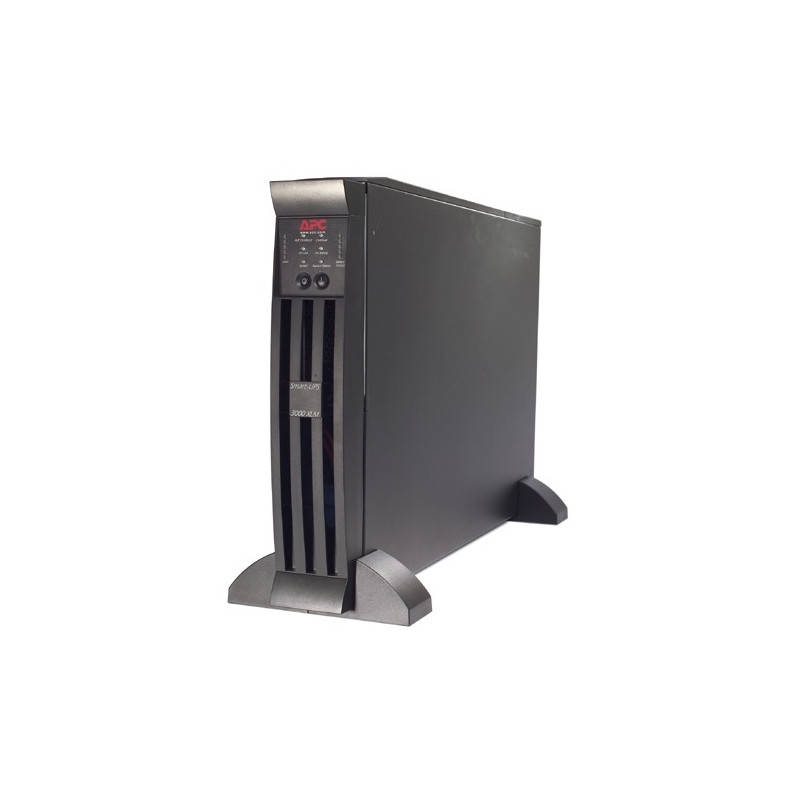

APC Smart-UPS XL, 3000VA/2850W, Input 230V/Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, USB, Extended runtime model, Rack Height 2 U

Includes: CD with software, Rack Mounting Brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual


Adjustable voltage-transfer points, Audible Alarms, Automatic internal bypass,

Automatic self-test, Boost and Trim Automatic Voltage Regulation (AVR),

Cold-start capable, Disconnected battery notification, Hot-swappable batteries, LED status indicators, Modular design, Network manageable,

Rack/Tower Convertible, Safety-agency approved, Scalable runtime,

Serial Connectivity, SmartSlot, Temperature-compensated battery charging,

USB Connectivity, User-replaceable batteries, User-replaceable power modules.

Battery type VRLA
Bundled software CD with software
Cable length 3 m
Colour of product Black
Dimensions (WxDxH) 430 x 680 x 90 mm
Filtering 0.3% IEEE/UL 1449
I/O ports Pre-Installed SmartSlot Card - AP9617
Input connection type IEC-320 C20
Interface DB-9 RS-232, RJ-45 10/100 Base-T, USB
LED indicators LED status display
Networking features Yes
Nominal input voltage 230 V
Nominal output voltage 230 V
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 95 %
Operating relative humidity range 0 - 95 %
Operating temperature (T-T) 0 - 40 °C
Operating temperature range (T-T) 0 - 40 °C
Output connections (7) IEC 320 C13 (1) IEC 320 C19 (4) IEC Jumpers
Output power 2850 W
Output power capacity (VA) 3000 VA
Power supply input frequency 50 - 60 Hz
Replacement battery cartridge RBC43
Source data-sheet
Storage relative humidity (H-H) 0 - 95 %
Storage relative humidity range 0 - 95 %
Storage temperature (T-T) -20 - 45 °C
Storage temperature range (T-T) -20 - 45 °C
Surge energy rating 490 J
Typical backup time at full load 3.5 min
Typical backup time at half load 11.9 min
Weight 47000 g
Filtering description 0.3% IEEE/UL 1449
EAN 7313042245708
Manufacturer APC


£2,638.77 Inc VAT.


Stock Due 2014-11-19
