Images are for illustrative purposes only.
  • More info

  • Details

Availability

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery.



Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.



Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.



Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.



Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.



Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.



Disconnected battery notification

Warns when a battery is not available to provide backup power.



Manageability

Network manageable

Provides remote management of the UPS over the network.



Audible alarms

Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.



LED status indicators

Quickly understand unit and power status with visual indicators.



Serial Connectivity

Provides management of the UPS via a serial port.



USB connectivity

Provides management of the UPS via a USB port (not available on all models).



Disconnected battery notification

Warns when a battery is not available to provide backup power.



Serviceability

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)



Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced



Predictive failure notification

Provides early-warning fault analysis ensuring proactive component replacement.



Resettable circuit breakers

Enables a quick recovery from overload events.



Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance



Adaptability

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.



Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.



Safety

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
AC outlet types C13 coupler,C19 coupler
AC outlets quantity 9 AC outlet(s)
Battery capacity 738 VAh
Battery recharge time 3 h
Battery replacement alarms LED
Battery technology Sealed Lead Acid (VRLA)
Cable length 2.44 m
Cables included RS-232
Certification C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH, PEP, EOLI
Colour of product Black
Depth 667 mm
Display LED
Efficiency 98.5 %
Ethernet LAN (RJ-45) ports quantity 1
Form factor Rackmount/Tower
Height 85.00 mm
Hot-swap battery Yes
LED indicators Yes
Manual Yes
Noise level 55 dB
Nominal input voltage 230 V
Nominal output voltage 230 V
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 95 %
Operating relative humidity range 0 - 95 %
Operating temperature (T-T) 0 - 40 °C
Operating temperature range (T-T) 0 - 40 °C
Output operation voltage (max) 240 V
Output operation voltage (min) 208 V
Output power 2700 W
Output power capacity (VA) 3000 VA
Package dimensions (WxDxH) 596 x 869 x 243 mm
Package height 85 mm
Package weight 45360 g
Package width 596 mm
Power supply input frequency 50/60 Hz
Quantity per pallet 8 pc(s)
Rack capacity 2U
Rack mounting 2U
Replacement battery cartridge APCRBC117
Response time 4 ms
RoHS compliance Yes
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -15 - 45 °C
Storage temperature range (T-T) -15 - 45 °C
Surge energy rating 645 J
Typical backup time at full load 6.3 min
Typical backup time at half load 18 min
Waveform Sine
Weight 37320 g
Width 432.00 mm
EAN 0731304272694
Manufacturer APC

APC Smart-UPS

£2,295.07 Inc VAT.

£1,912.56

In Stock

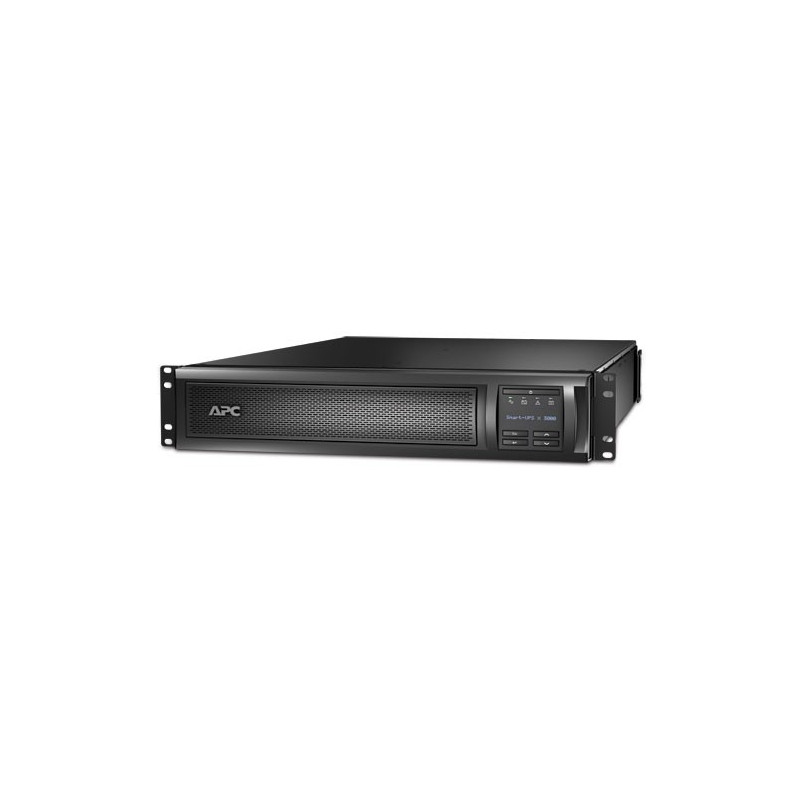

Smart-UPS X - 3000VA, Rack/Tower, LCD, 200-240V, Network Card, 37.32kg, Black More details

SMX3000RMHV2UNC
