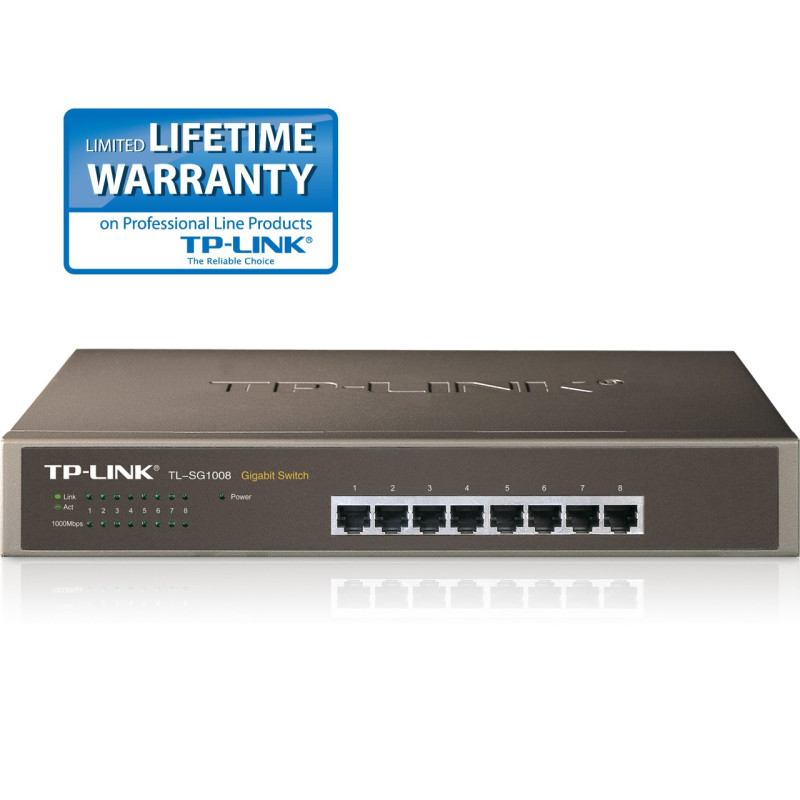

The TL-SG1008 is a high performance Smart Gigabit switch that provides an ideal solution for workgroup or department Gigabit applications. With 8 10/100/1000BASE-T Gigabit Ethernet ports with AUTO-MDIX provides full bandwidth (Maximum 2000Mbps in full duplex mode). Easy-to-view LED indicators are supported for cable installation and normal operational diagnostics. The switch can be used a desktop or in a rack-mount.

Auto MDI/MDI-X	Yes
Bandwidth	16 Gbit/s
Basic switching RJ-45 Ethernet ports quantity	8
Certification	FCC, CE, RoHS
Connectivity LEDs	Yes
Connectivity technology	Wired
Copper ethernet cabling technology	1000BASE-T,100BASE-TX,10BASE-T
Dimensions (W x D x H)	248.9 x 157.5 x 43.2 mm (9.8 x 6.2 x 1.7 ")
Dimensions (WxDxH)	294 x 180 x 44 mm
Ethernet LAN (RJ-45) ports quantity	8
Flow control support	Yes
Full duplex	Yes
Input frequency	50 - 60 Hz
Input voltage	100 - 240 V
MAC address table	8000 entries
Management	Unmanaged
Maximum data transfer rate	1 Gbit/s
Mounting	Desktop
Networking features	Gigabit Ethernet
Networking standards	IEEE802.3, 802.3u, 802.3ab, 802.3x
Operating relative humidity (H-H)	10 - 90 %
Operating relative humidity range	10 - 90 %
Operating temperature (T-T)	32 - 104 °F
Operating temperature range (T-T)	0 - 40 °C
PoE	No
Ports quantity	8
Power over Ethernet (PoE)	No
Power over Ethernet (PoE) support	No
RJ45 Ports Qty	8
Source data-sheet	Icecat.biz
Stackable	No
Storage relative humidity (H-H)	5 - 90 %
Storage relative humidity range	5 - 90 %
Storage temperature (T-T)	-40 - 70 °C
Storage temperature range (T-T)	-40 - 70 °C
Store-and-forward	Yes
Supported data transfer rates	10/100/1000 Mbps
Supported network protocols	CSMA/CD, TCP/IP
Switch Speed	Gigabit
Switch type	Unmanaged
