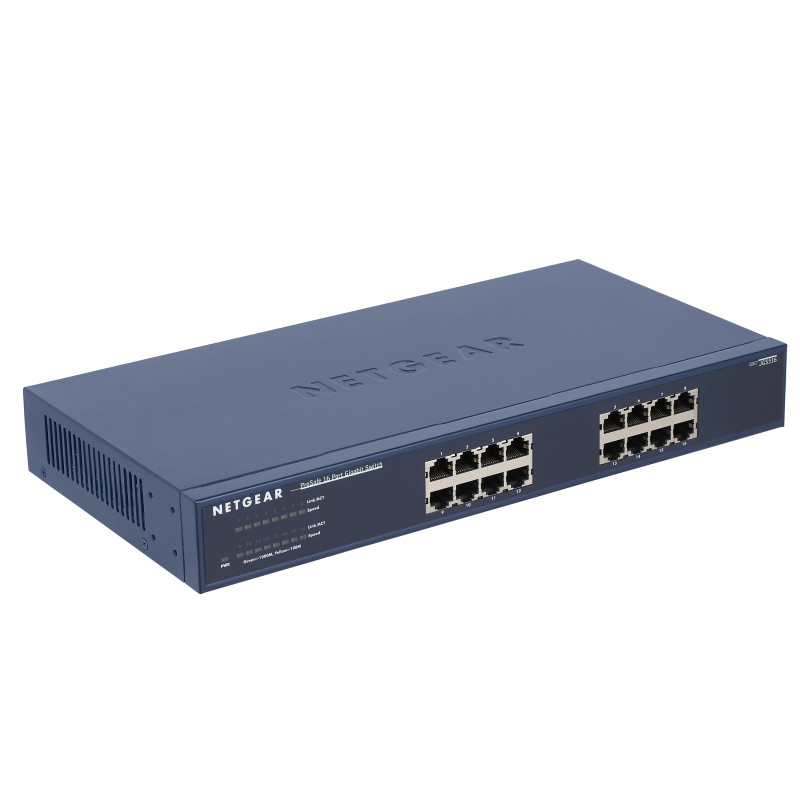

Netgear ProSafe JGS516
  • Netgear ProSafe JGS516
  • Netgear ProSafe JGS516
  • Netgear ProSafe JGS516
  • Netgear ProSafe JGS516
Take Gigabit to the Desktop



NETGEAR’s JGS500 Gigabit Switch Series gives your office network a megaboost of speed and capacity that is within your budget. With up to 48 Gbps of bandwidth, these 16- and 24-port switches can blast 2000 Mbps per port while their affordable prices enable you to put them everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy integration of 10-, 100-, and 1000-Mbps devices, these unmanaged, rack-mountable switches feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink on every port. Users can take advantage of the their ability to deliver large amounts of multimedia, image, and video information in no time at all. Ideal for workgroups, labs, departments, or growing offices looking for oustanding performance at a low price.



High Capacity



1000-Mbps speeds and a switching capacity of up to 48 Gbps meet the performance needs for even the most bandwidth-hungry applications. The JGS500 series are perfect for graphics, multimedia, and other applications that have to move large files across the network quickly.



Affordable



Aggressive prices enable your workgroup, department or small network to ramp up to Gigabit speeds, even all the way to the desktop.



Flexible



Each port is equipped with automatic speed and duplex sensing, plus Auto Uplink to adjust for straight-through or crossover cables to make the right link. Standards-based design makes it easy to combine 10-, 100-, and 1000-Mbps devices on your network.



Convenient



Easy to set up and easy to use, these unmanaged switches have per port LED’s for effortless network monitoring. They are compact enough for the desktop but come with a rack-mount kit. They are also compatible with PC, Macintosh, Linux, and Unix operating systems.
Bandwidth32 Gbit/s
Basic switching RJ-45 Ethernet ports quantity16
CertificationCE mark, commercial FCC Part 15 Class A VCCI Class A EN 55022 (CISPR 22), Class A, EN 50082-1, EN 55024 C-Tick
Colour of productBlue
Connectivity LEDsYes
Connectivity technologyWired
DC-in jackYes
Dimensions (WxDxH)330 x 207 x 43 mm
Ethernet LAN (RJ-45) ports quantity16
Latency20 µs
ManagementUnmanaged
Maximum data transfer rate0.1 Gbit/s
Mean time between failures (MTBF)309000 h
MountingRackmount
Non-operating relative humidity (non-condensing)10 - 95 %
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)32 - 122 °F
Operating temperature range (T-T)0 - 55 °C
Packet buffer memory2 MB
PoENo
Ports quantity16
Power consumption (typical)25 W
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Power requirements100-240VAC/50-60 Hz
RJ45 Ports Qty16
Source data-sheetIcecat.biz
StackableNo
Storage temperature (T-T)-20 - 70 °C
Storage temperature range (T-T)-20 - 70 °C
Supported network protocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Switch SpeedGigabit
Switch typeUnmanaged
Weight1620 g
