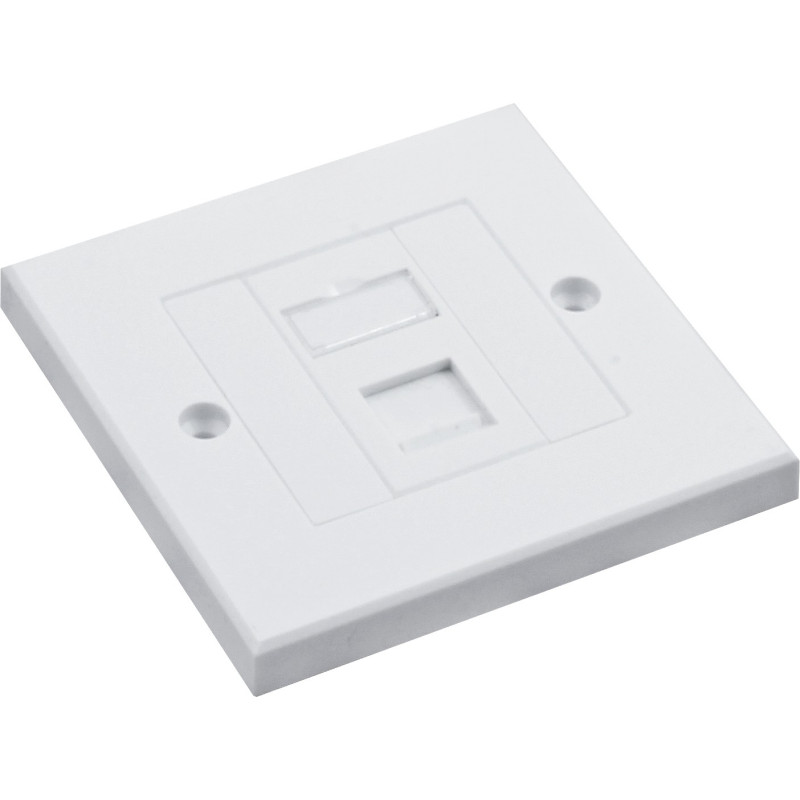

The Connectix Enhanced Category 6 way loaded faceplate consists of consists of up to 2 modules loaded in a singlegang faceplate or up to 4 modules loaded in a dualgang faceplate.
- Pre-assembled outlet, ready for installation.
- Exceeds Enhanced Cat 6 specification when used alongside our cable and patch panels
Details:
Module Details
The Compact Module is designed to provide a shallow solution - ideal wherever back-box depth is a problem.
The attractive high gloss finish and easy to use labelling system is identical to all other Connectix Cabling Systems Modules, making them interchangeable in most applications.
Category 6 compact modules can be fitted into single or dual gang Euro faceplates and can be combined with quarter blanks and/or voice modules to provide the required configuration.
Connectix Category 6 Modules are fully compliant with the ANSI/TIA Category 6 Standard. When used in conjunction with Connectix Category 6 Patch Panels and UTP Cable the user will get a link performance exceeding the Category 6 requirements.
Features:
- Suitable for Gigabit Ethernet applications
- Shallow design requires minimal back-box depth
- Interchangeable with all other Euro modules and quarter blanks
- Fits all standard Euro faceplates
- Individually QA tested
Specification:
- Width - 25mm
- Depth - 21mm
- Height - 50mm
- Back-box Depth - Minimum 15mm recommended
- Material - Polycarbonate/ABS thermoplastic resin, with grade UL94 V0 at 1.5mm flame retardency
- Finish - High gloss
- IDC Labels - Individual colour coded to T568B
- IDC Blocks - 4 way industry standard IDC blocks
- Conforms to - ANSI/TIA-568-C Category 6 Specification
| Shielded | No |
| Specification | Cat6 |
| Termination | Krone Style IDC PunchDown |
