Industry’s most powerful Wireless 802.11AC Wave 2 tri-band Access Point with NETGEAR Insight management

One of the most problematic situations for any network owner/manager is when the infrastructure runs out of resources and bandwidth and forklift upgrades are needed to remedy the situation. Not any more with The NETGEAR® AC3000 Tri-band WiFi Business Access Point WAC540. It is a sophisticated access point with 3 radios that can handle any situation where there are large number of WiFi clients demanding service. Office locations with hundreds of employees with multiple devices (laptop, notepad and smart phones) can enjoy WAC540’s performance and coverage together with the ease of use that comes with Insight to overcome all demanding situations when designing and provisioning networks.



Advanced features such as port aggregation together with PoE power allows WAC540 to utilize a bundled gigabit Ethernet for backhaul when powered via Ethernet PoE ports while dedicating its 5G 4x4 radio for servicing even more clients.



Whether your business requires the WiFi network to support the users with office and CRM and instant messaging tools, handling VoIP calls or hosting live video on smart WiFi TVs around the office, WAC540 has the power to keep all of these applications running smoothly.



Finally, the WAC540 is managed by NETGEAR Insight, for a more intuitive and innovative support, with no need for extra management hardware from anywhere through a smart device such as a phone, tablet or a laptop.



Where to use Access Point

- College Campuses

- Hotels

- Small Airports

- Large Office Spaces



INSTANT MESH



One WiFi network. Maximum WiFi Expansion.



Connect multiple areas without the use of cables with NETGEAR WAC540 or WAC564.



Both devices have three robust 802.11ac radios to establish a strong wireless backhaul link to a nearby Instant Mesh device.



Remote monitoring and management with NETGEAR Insight

- Instant discovery & set-up

- Local and Cloud monitoring and management through the Insight app or Cloud Portal

- Remote access and multi-device configuration

- No additional Cloud controller, appliance, network manager, or PC/server is necessary

- QR code intial configuaration for instant installation
Antenna gain level (max)4 dBi
Antenna typeinternal
Auto MDI/MDI-XY
DC-in jackY
Depth241.53 mm
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
Height40.21 mm
Input current2.5 A
Input voltage12 V
LED indicatorsLAN,Power,WLAN
MAC address filteringY
Maximum data transfer rate1733 Mbit/s
Modulation256-QAM
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11i,IEEE 802.11k,IEEE 802.11n,IEEE 802.11v,IEEE 802.1x,IEEE 802.3at
Number of users600 user(s)
Power consumption (typical)25.5 W
Power over Ethernet (PoE)Yes
Reset buttonY
Security algorithmsEAP-TLS,PEAP,SNMP,SSH,SSID,SSL/TLS,TTLS,WPA,WPA-Enterprise,WPA-PSK,WPA2,WPA2-PSK
Web-based managementY
Weight752 g
Width241.53 mm
Service Set Identifier (SSID) featuresSSID broadcast on/off
Fit AP mode features802.11k & 802.11v smart roaming,Wireless distribution system (WDS)
Throughput data rate3000 Mbit/s
WLAN channel featuresWLAN channel management
Remote Authentication Dial-In User Service (RADIUS)Y
Antenna featuresIntegrated antenna

wac540b03-10000s.pdf

Netgear WAC540B03 Data Sheet

Download (528.18k)

Similar products

  • Netgear WN370
    Netgear WN370
  • Netgear WA510
    Netgear WA510
  • Netgear WAC540
    Netgear WAC540
  • Netgear WAC564
    Netgear WAC564

Netgear WAC540B03

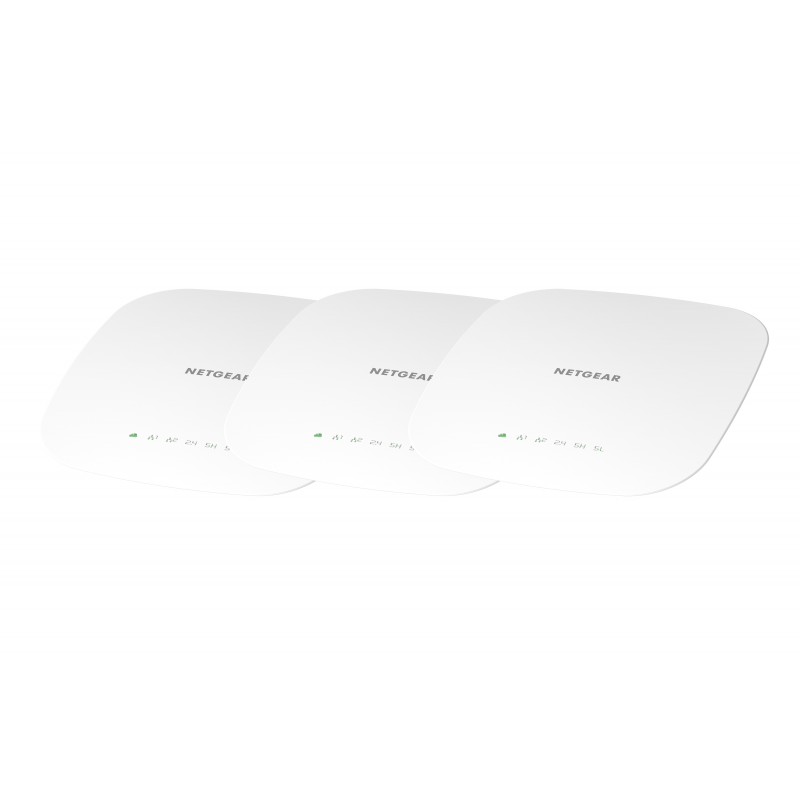

3x WAC540, Smart Cloud Tri-band 4x4, 2.4GHz/5GHz, MU-MIMO, IEEE 802.11ac, 1733 Mbps, PoE+, SSH Telnet

WAC540B03-10000S

Out of Stock

£581.49
£484.58 Ex VAT.
