What This Product Does
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
| Certification | FCC, CE |
| Depth | 13.7 mm |
| Fiber optic connector | LC (UPC) |
| Height | 12.9 mm |
| Input voltage | 3.3 V |
| Interface type | mini-GBIC/SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Maximum transfer distance | 550 m |
| Networking standards | IEEE 802.3z |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 70 °C |
| Package height | 38 mm |
| Package weight | 110 g |
| Package width | 148 mm |
| Quantity per pack | 1 pc(s) |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 80 °C |
| User guide | Y |
| Wavelength | 850 nm |
| Width | 55.4 mm |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Harmonized System (HS) code | 85369010 |
| Compliance certificates | RoHS |
| Minimum operating temperature | 0 °C |
Specific References
- EAN13
- 0845973030209
New

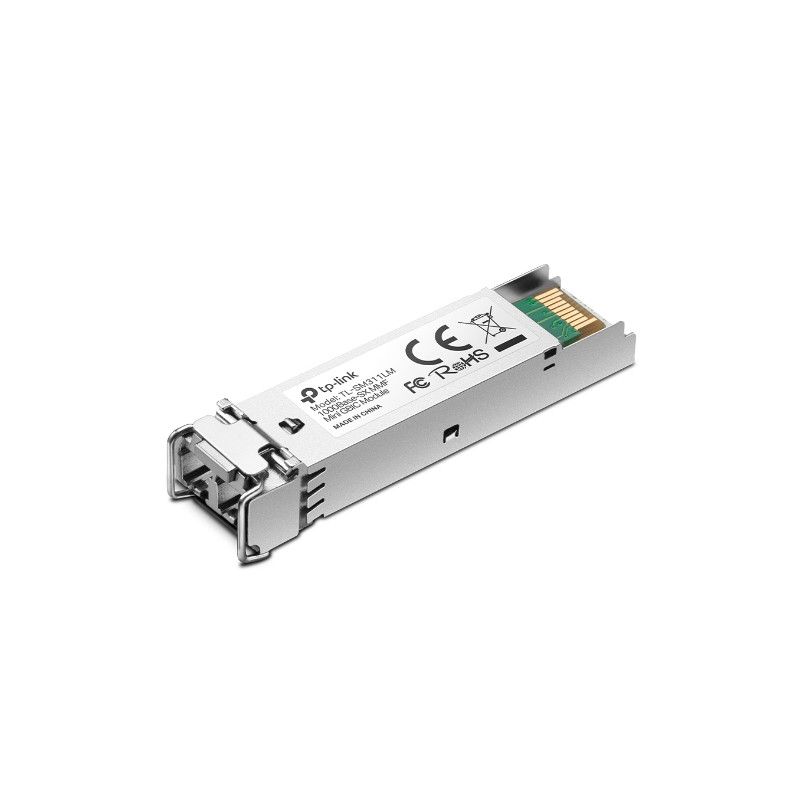

TP-Link MiniGBIC Module
MiniGBIC, 850nm, Multi-mode Fiber, 1.25Gbps, LC/UPC
£22.75
£18.96 Ex. VAT
Similar products
MiniGBIC, 850nm, Multi-mode Fiber, 1.25Gbps, LC/UPC
