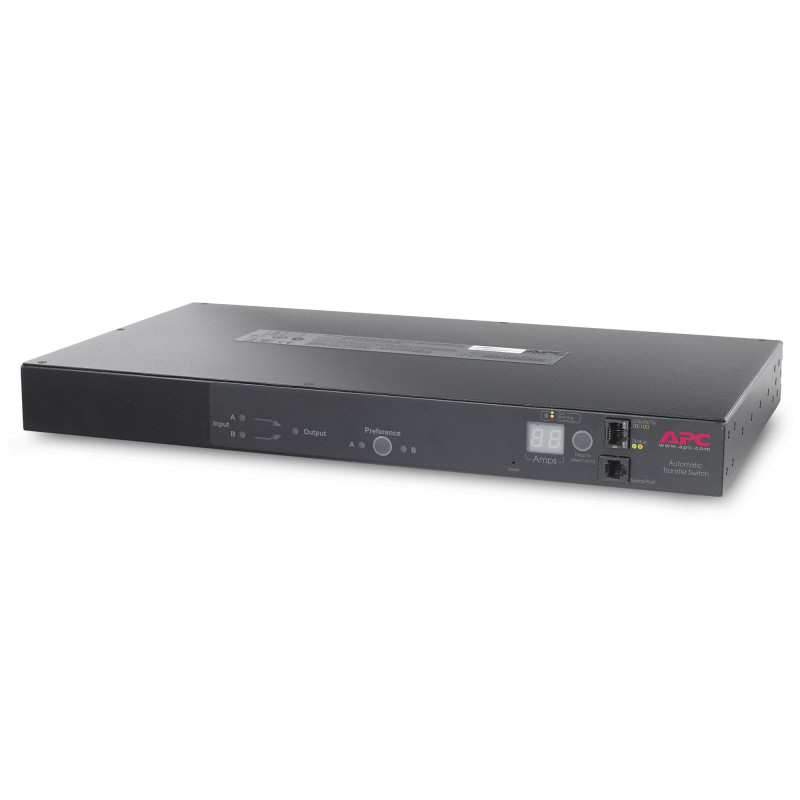

APC Rack Automatic Transfer Switch , Input: 230V , Input Connections: IEC-320 C14 , Output Connections: IEC 320 C13.



Includes: Documentation CD, Rack Mounting brackets, RS-232 configuration cable, Warranty card.
CertificationEN 55022 Class A,FCC Part 15 Class A
Colour of productBlack
Dimensions (WxDxH)432 x 229 x 44 mm
Input connection typeIEC-320 C14
Input frequency47/63 Hz
Maximum input current per phase10 A
Maximum total current draw per phase10 A
Nominal input voltage230 V
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)-5 - 45 °C
Operating temperature range (T-T)-5 - 45 °C
Output connections(12) IEC 320 C13
Package dimensions (WxDxH)600 x 349 x 114 mm
Package weight5700 g
Rack mounting1u
Source data-sheetIcecat.biz
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-25 - 65 °C
Storage temperature range (T-T)-25 - 65 °C
Weight3930 g
EAN7313042558266
ManufacturerAPC

Accessories

Customers who bought this product also bought:

3 other products in the same category:

APC Rack ats

£615.61 Inc VAT.

£513.01

Out of Stock

RACK ATS, 230V, 10A, C14 IN, (12) C13 OUT More details

AP7721
