What This Product Does
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
| Auto MDI/MDI-X | Y |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Certification | FCC, CE |
| Connectivity technology | Wired |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T |
| Depth | 73 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Fiber ethernet cabling technology | 100Base-FX |
| Fiber optic connector | SC |
| Flow control support | Y |
| Height | 27 mm |
| Internal | N |
| LED indicators | Activity,Link,Power |
| Maximum data transfer rate | 100 Mbit/s |
| Maximum transfer distance | 20000 m |
| Networking standards | IEEE 802.3,IEEE 802.3i,IEEE 802.3u |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Output voltage | 5 V |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Width | 94.5 mm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85176990 |

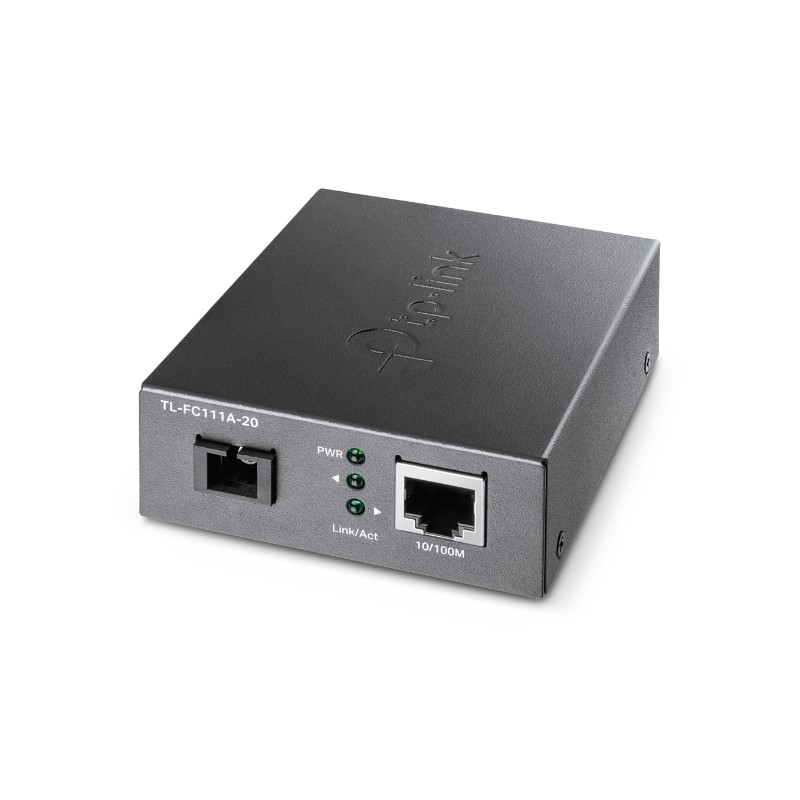

TP-Link 10/100 Mbps WDM Media Converter
SC, RJ-45, 100Base-FX, 94.5x73x27 mm
tl-fc111a-20
Out of Stock
£22.75
£18.96 Ex VAT.
