Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40 km over Single Mode SC fiber

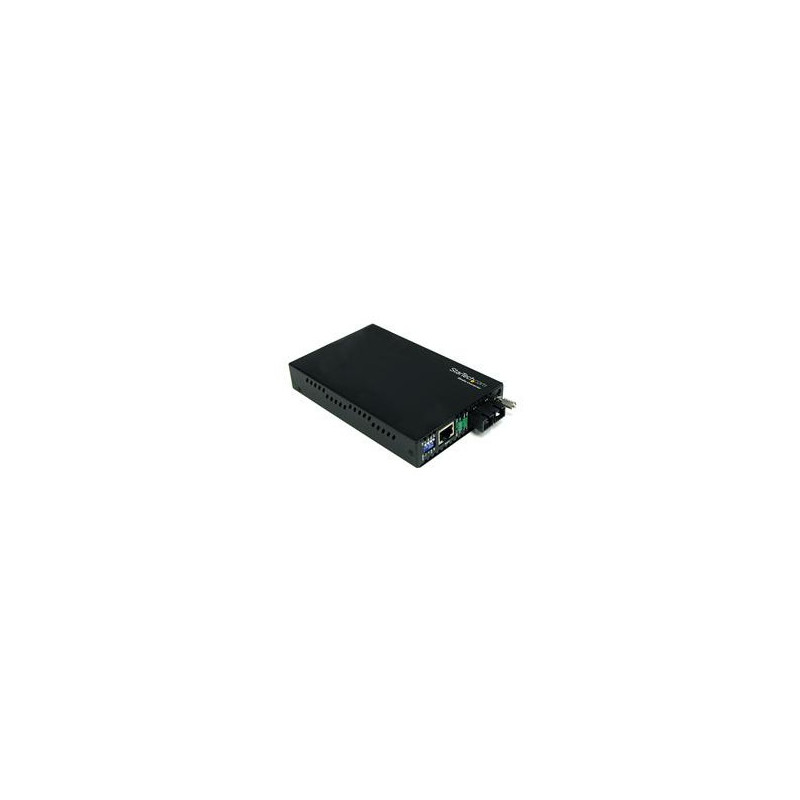

The ET91000SM402 1000 Mbps Gigabit Single Mode Fiber Media Converter SC (40 km) lets you extend a Gigabit Ethernet network over single mode fiber by up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for added durability in harsh environments
Auto MDI/MDI-XYes
CertificationCE, FCC
Colour of productBlack
Connectivity technologyWired
Data transfer rate (max)2000 Mbit/s
DC-in jackYes
Dimensions (WxDxH)95 x 160 x 20 mm
Ethernet interface typeGigabit Ethernet
Ethernet LAN (RJ-45) ports1
Ethernet LAN (RJ-45) ports quantity1
Ethernet LAN data rates1000 Mbit/s
Ethernet LAN data transfer rates10, 100, 1000 Mbit/s
External power adapterYes
Fiber optic connectorSC
Full duplexYes
InternalNo
ManualYes
Maximum transfer distance40000 m
Mean time between failures (MTBF)65000 h
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)0 - 60 °C
Operating temperature range (T-T)0 - 60 °C
Output voltage12 V
Package height90 mm
Package weight700 g
Package width135 mm
Plug and PlayYes
Power consumption (typical)4 W
RoHS complianceYes
Source data-sheetIcecat.biz
Storage temperature (T-T)-10 - 70 °C
Storage temperature range (T-T)-10 - 70 °C
Wavelength1310 nm
Weight600 g
EAN0065030846219
ManufacturerStarTech.com

StarTech.com Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps

£383.71 Inc VAT.

£319.76

In Stock

Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps More details

ET91000SM402
