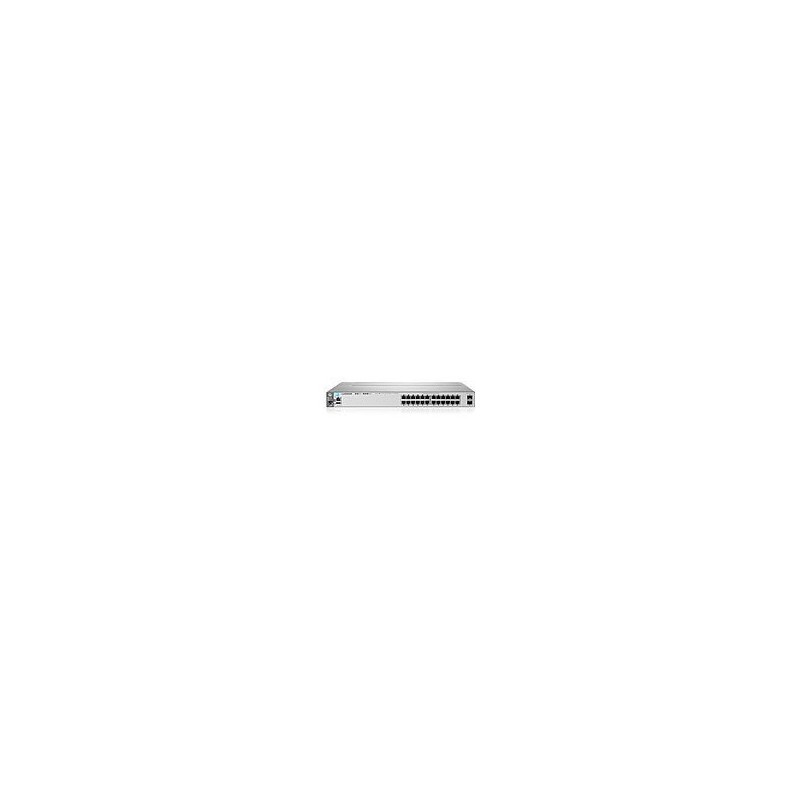

HP 3800-24G-2SFP+
The HP 3800 Switch Series is a family of fully managed Gigabit Ethernet switches. There are a total of nine switch models—a 24-port switch, a 48-port switch, a 24-port PoE+ switch, a 48-port PoE+ switch

with either SFP+ or 10GBASE-T uplinks, and a 24-portSFP switch with 2 SFP+ uplinks. HP 3800 Series Switches utilize the latest HP ProVision ASIC technology and combine the latest advances in hardware engineering to deliver one of the most resilient and energy-efficient switches in the industry.

The 3800 series implements meshed stacking technology to deliver chassis-like resiliency in a flexible stackable form factor.
Authentication methodIEEE 802.1X, RADIUS, MAC
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity24
Built-in processorHP ProVision ASIC/ARM 350 Mhz & Freescale PowerPC 1200 MHz
CertificationFCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A 80 PLUS GOLD EN 55024, CISPR 24, IEC 61000-4-2/3/4/5/6/8/11, IEC 61000-3-2/3, EN 61000-3-2/3
Colour of productGrey
Connectivity technologyWired
Copper ethernet cabling technology1000BASE-T,100BASE-TX,10BASE-T
DHCP clientYes
DHCP serverYes
DiagnosticsLLDP
Dimensions (WxDxH)467.4 x 442.7 x 43.2 mm
Ethernet LAN (RJ-45) ports quantity24
Firmware upgradeableYes
Flash memory4096 MB
Form factor19"
Full duplexYes
Gigabit Ethernet (copper) ports quantity24
Heat dissipation434 BTU/h
Input current6 - 3 A
Input frequency50 - 60 Hz
Input voltage100 - 240 V
Installed ports26
Internal memory2048 MB
Latency1.9µs
MAC address table65500 entries
Management platformSNMP, Telnet, Web
Management protocolsSNMP v3
Maximum data transfer rate10000 Gbit/s
Memory typeSDRAM
MIB supportYes
Mounting1U
Networking featuresGigabit Ethernet, 10G Ethernet
Networking standardsIEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u
Noise level36 dB
Number of power supply units1
Number of VLANs2048
Packet buffer memory18 MB
Ports quantity26
Power consumption (typical)127 W
Power over Ethernet (PoE)No
Power over Ethernet (PoE) supportNo
Power supply400 W
Power supply typeHP X311
Quality of Service (QoS) supportYes
Rack mountingYes
Redundant power supply (RPS) supportYes
SafetyEN 60950/IEC 60950, UL 60950, CAN/CSA 22.2 No. 60950, EN 60825
Security algorithms802.1x RADIUS,SSH,SSL/TLS
Security algorithms supported802.1x RADIUS, SSH, SSL/TLS
Security featuresCLI, GUI, MIB
Source data-sheetIcecat.biz
Spanning tree protocolYes
StackableYes
Supported data transfer rates10/100/1000 Mbps
Switch layerL3
Switch typeManaged
Switching capacity88 Gbit/s
Throughput65400000 pps Mpps
Web-based managementYes
Weight6920 g
Wi-FiNo
Wireless LAN connectionNo

Similar products

  • TP-LINK 8-port 10/100 Unmanaged PoE Switch
    TP-LINK 8-port 10/100 Unmanaged PoE Switch
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • TP-LINK TL-SG1008
    TP-LINK TL-SG1008
  • TP-LINK TL-SM311LS
    TP-LINK TL-SM311LS

Hewlett Packard Enterprise 3800-24G-2SFP+

Managed, 24 x RJ-45, 10/100/1000 Mbps, 2 x SFP+ 1000/10000 Mbps, 1 x RJ-45 Console, HP ProVision ASIC/ARM 350 MHz, Freescale PowerPC 1200 MHz, 4GB Flash, Buffer 18 MB, 2GB SDRAM, RADIUS/TACACS+, SSHv2, SSL, 48.26 cm (19 ") , 127W, 6920g

J9575A

Out of Stock

£4,027.85
£3,356.54 Ex VAT.
